Core Overview
Key Product Advantages

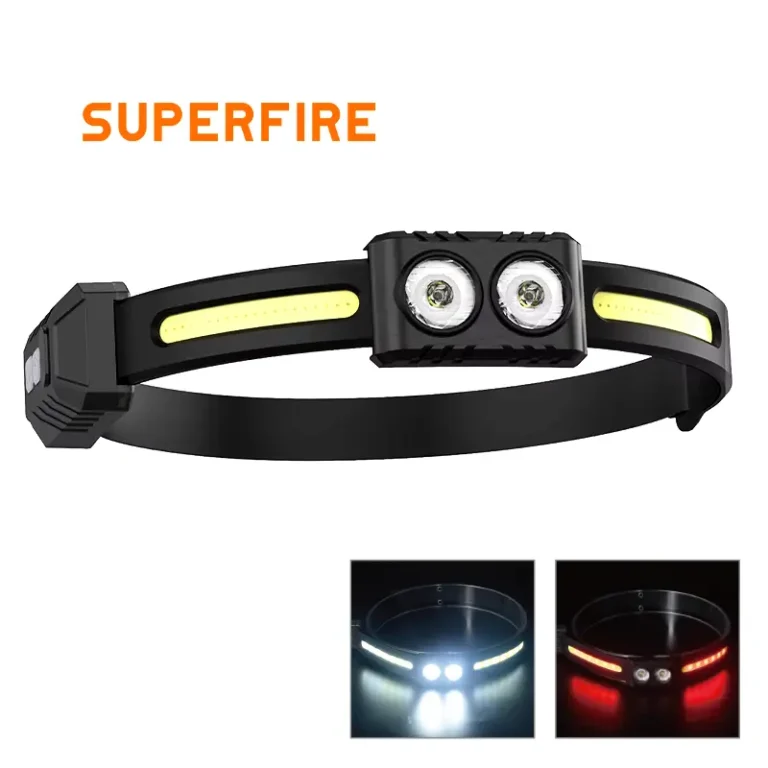

- Dual Light Source: Spot + COB Flood

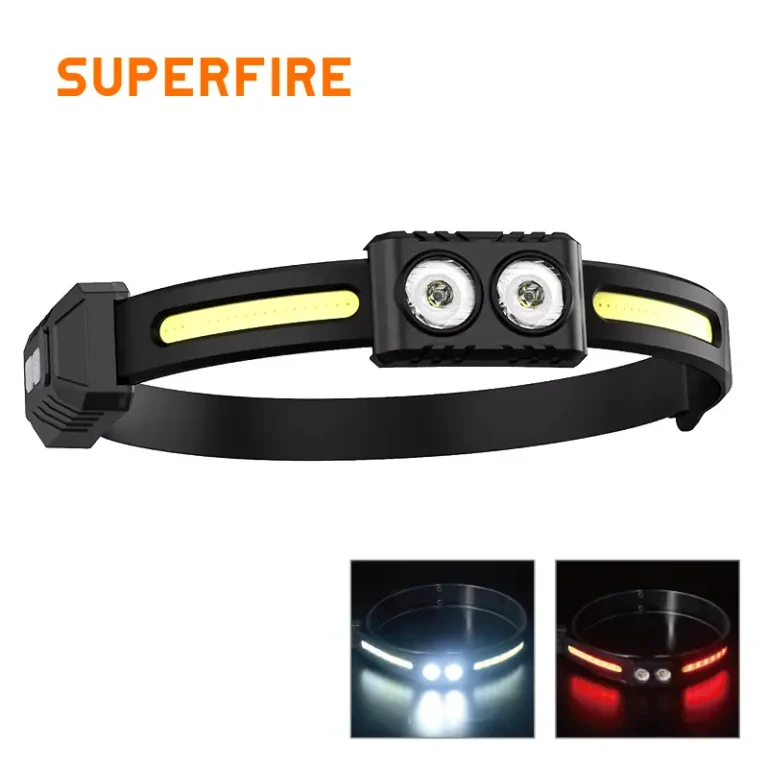

The HE03 is fitted with 2 XTE focused LEDs, 28 COB white chips and 12 COB red chips. Users can freely switch between long-throw spot beam and 180° wide flood illumination, eliminating the need to carry multiple lighting tools on site.

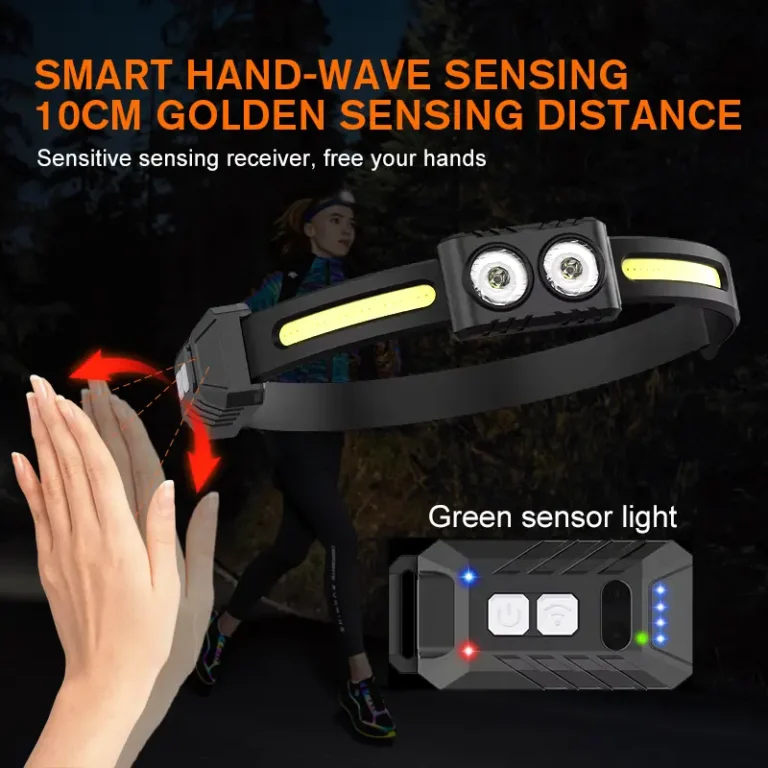

- Smart Gesture Sensor for Hands-Free Control

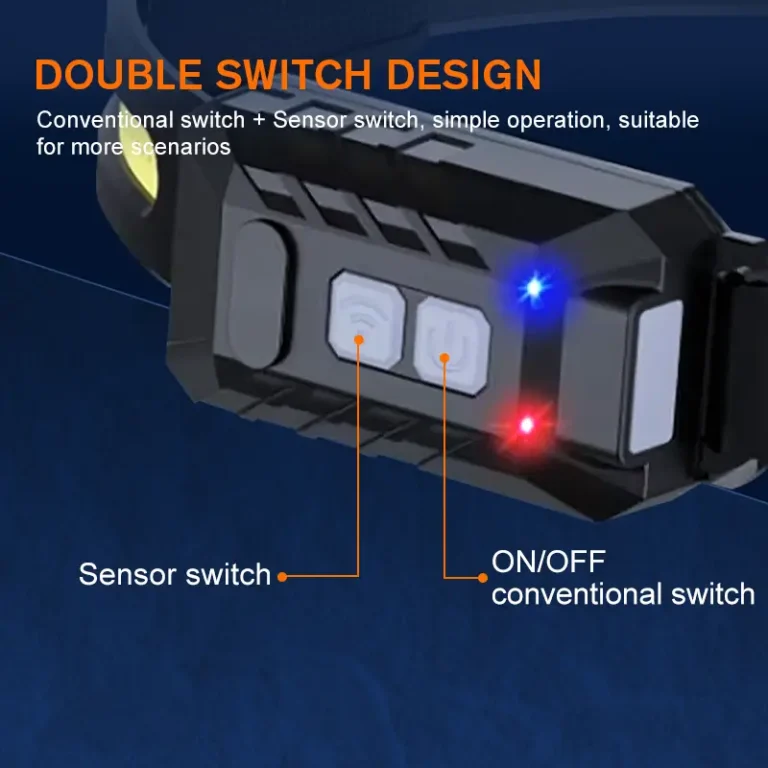

The built-in sensor supports instant on/off control with a simple hand wave without touching the lamp. It works perfectly in dirty environments, when wearing work gloves or in sterile working areas where physical contact is inconvenient or unsafe.

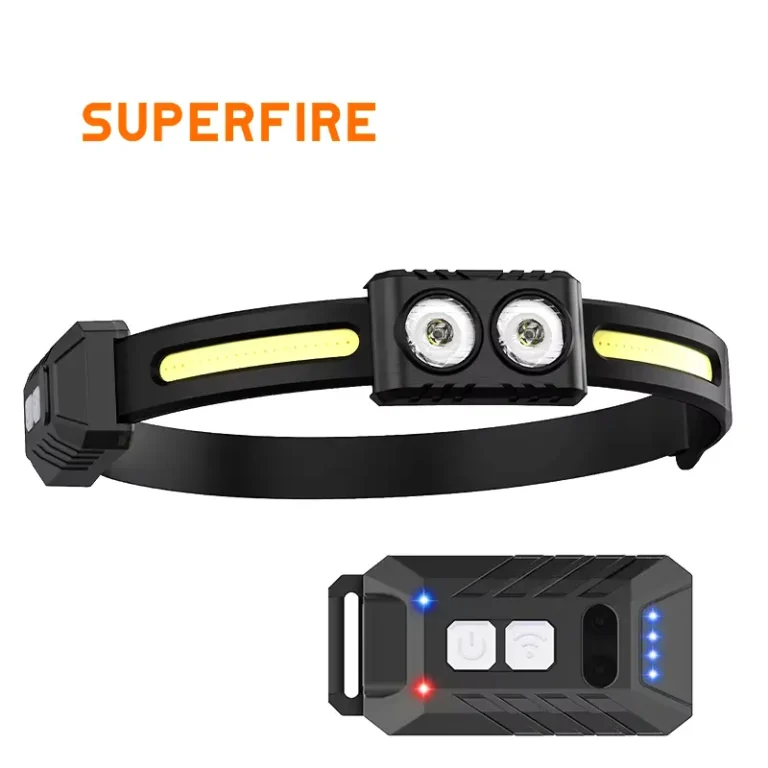

- Lightweight Silicone Construction with Ergonomic Fit

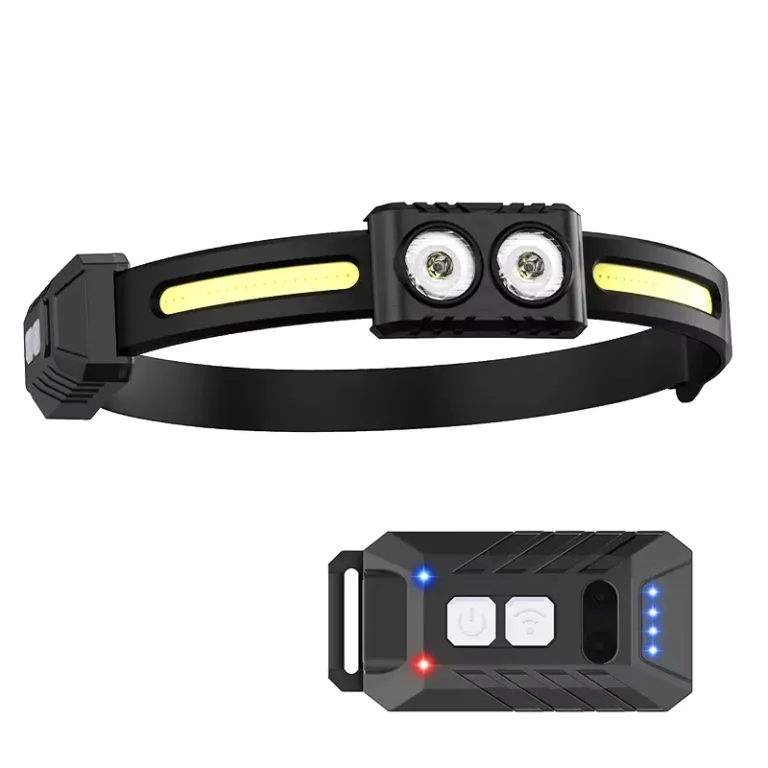

Weighing merely 87g, the flexible silicone body fits snugly on the forehead. The adjustable elastic headband ensures stable and non-slip wearing during intense activities. The rear-mounted battery box (71mm x 38mm) optimizes overall weight distribution.

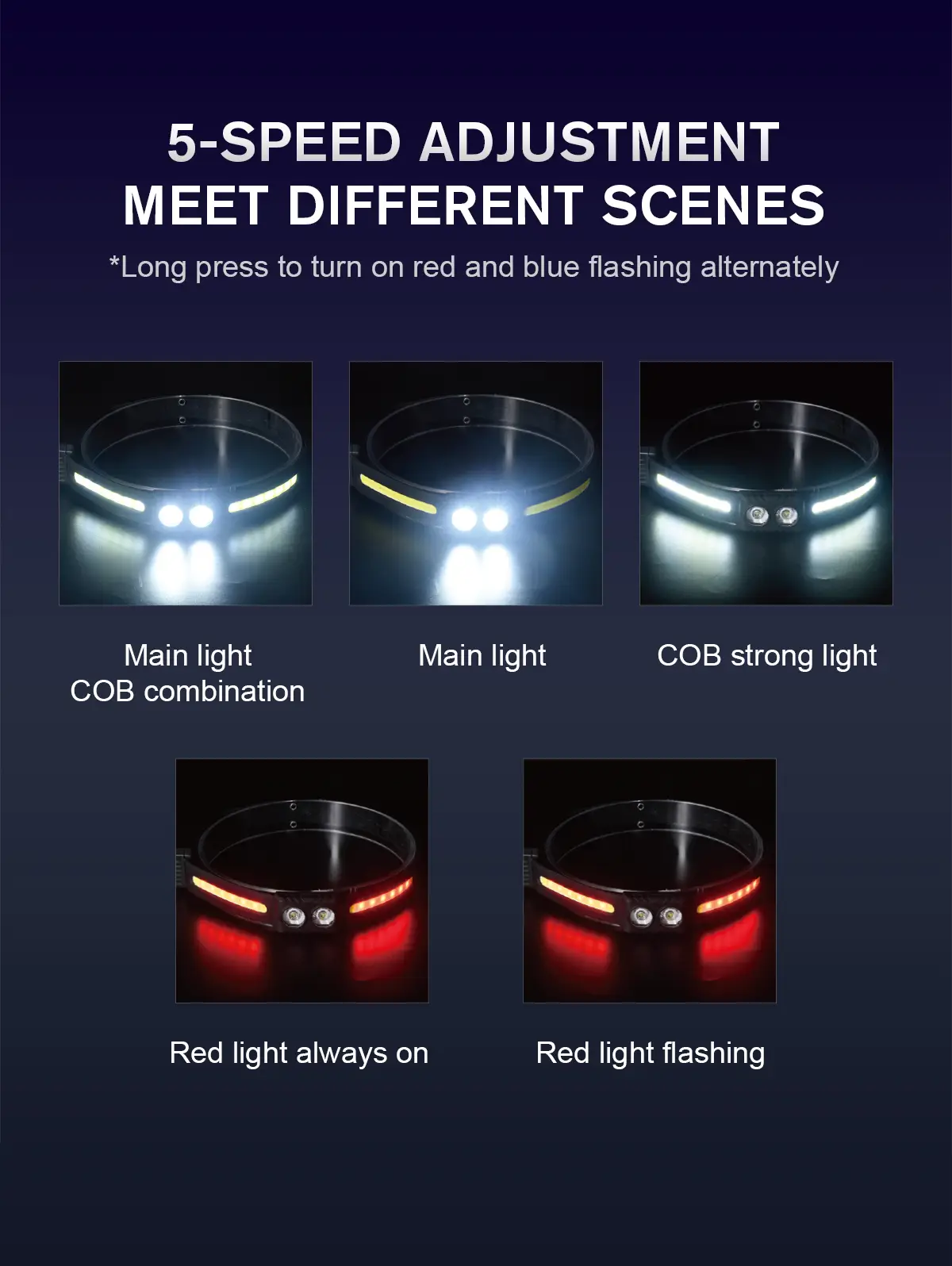

- 5-Mode Operation with Safety Signaling
Available modes: Main+COB Combo, Main Spot, COB White High, COB Red Steady, COB Red Flash. Long press the button to activate red-blue alternating strobe for emergency warning. Rich modes meet demands for daily work, trail navigation, night vision protection and roadside safety alert.

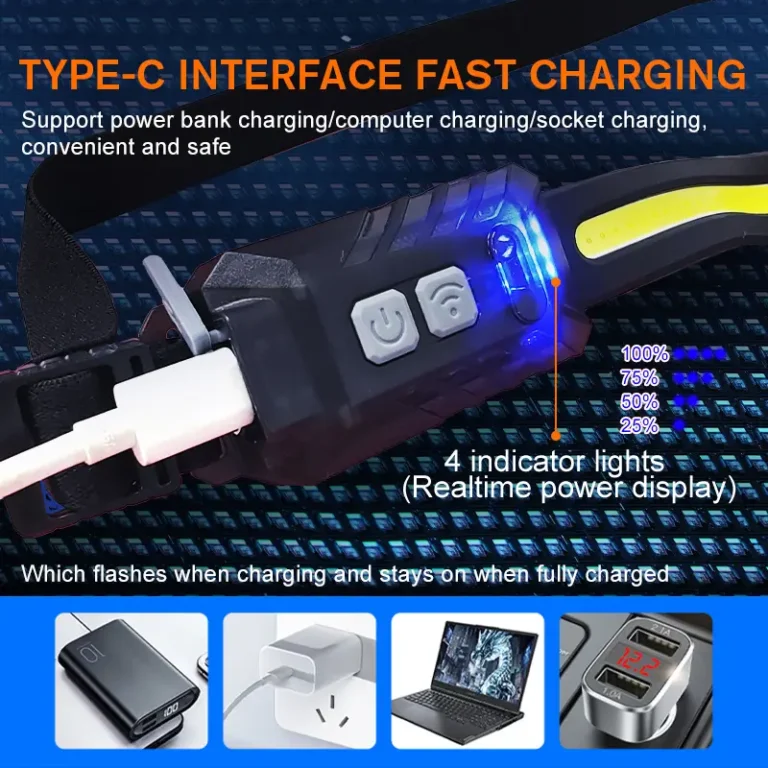

- Intelligent 4-Level Battery Indicator & Type-C Charging
Four LED indicators display remaining battery power by 25% increments for easy power management. The universal Type-C port supports 5V/1A charging via power banks, laptops and wall adapters. It takes about 133 minutes for a full charge and delivers around 180 minutes of runtime.

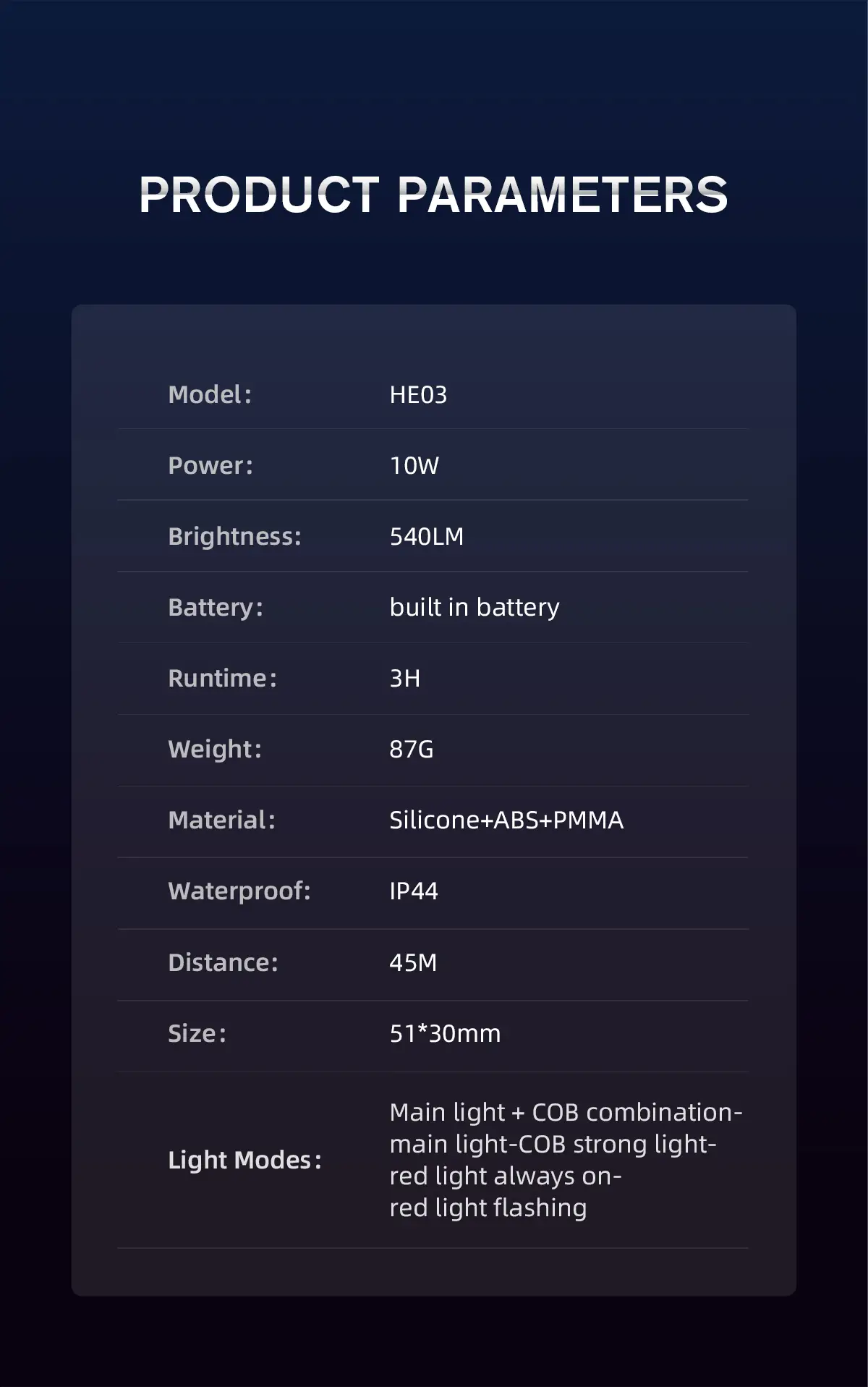

Specifications of HE03 Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | HE03 |
| Product Type | COB Silicone Sensor Headlamp |
| LED Configuration | Main: 2 x XTE + COB White 28pcs + COB Red 12pcs |
| Rated Power | 10W |
| Luminous Flux | 540LM (Main + COB Combined) |
| Beam Distance | 45m |
| Color Temperature | 6416K |
| Battery | Built-in 1 x Polymer / 1200mAh |
| Runtime | Approx. 180 min (3H) |
| Charging Time | Approx. 133 min |
| Charging Port | Type-C |
| Input | 5V / 1A |
| Waterproof Rating | IP44 |
| Drop Resistance | 1m |
| Weight | 87g |
| Dimensions | Head: 51 x 30mm / Battery Box: 71 x 38mm |
| Body Material | Silicone + ABS + PMMA |
| Color | Black |
| Focusable | No |
| Operating Modes | Main+COB / Main Spot / COB White High / COB Red / COB Red Flash / Red-Blue Strobe |
| Special Functions | Overcharge Protection, Over-discharge Protection, Low Voltage Indicator, 4-Level Battery Indicator, Gesture Sensor |
| Barcode | 6975515775931 |

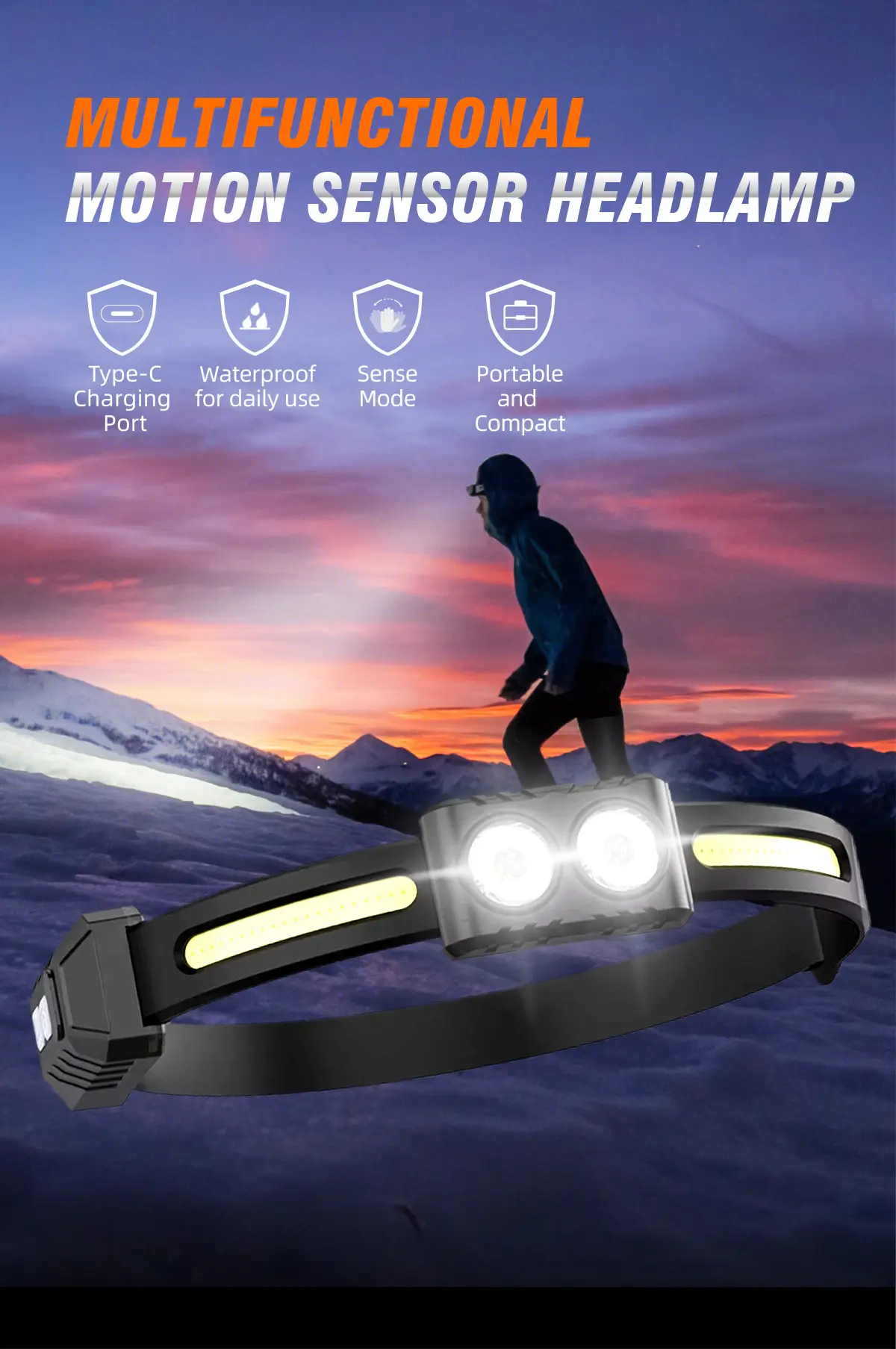

Details of SUPERFIRE HE03 Tactical Flashlight
Video
常见问题解答
How does the gesture sensor function work on the HE03?
The sensor detects hand-wave movement within approximately 15cm of the headlamp to turn the light on or off without physical contact. It is highly practical when wearing thick work gloves or handling messy substances.
Can the HE03 be used while charging?
This headlamp does not support pass-through operation during charging. It is recommended to fully charge it before use. The 4-level battery indicator clearly shows remaining power to help you arrange charging in advance.
What is the difference between the main spot beam and COB flood light?

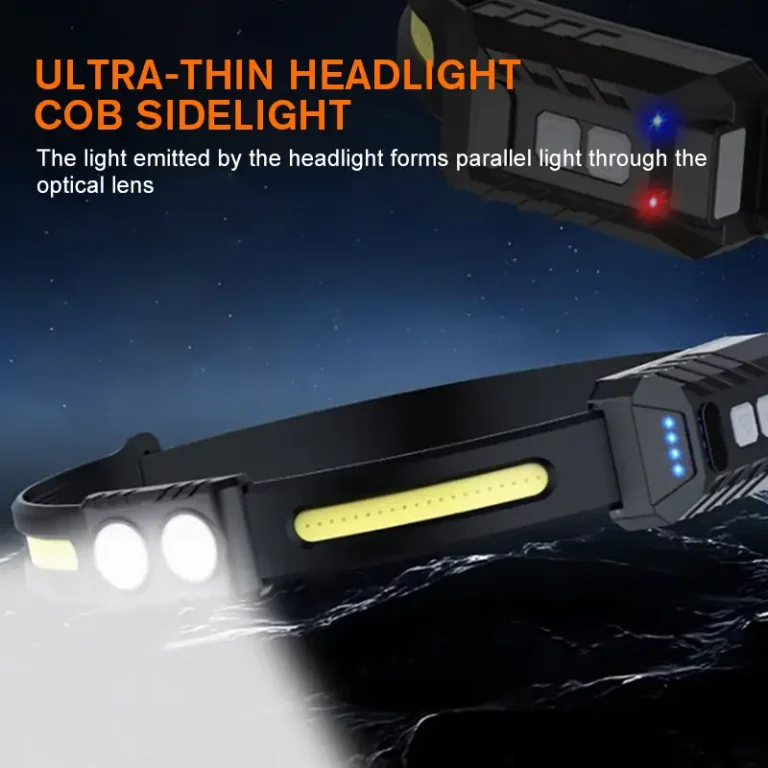

The main XTE LEDs produce concentrated circular light for long-distance illumination, while the COB panel provides wide and even light covering a 180° viewing area. The dual-light design adapts to long-range path finding and close-range detailed work respectively.
Is the HE03 suitable for running at night?
Yes. Featuring ultra-light 87g weight and firm elastic headband, it delivers great peripheral vision with COB white flood mode for night running. The rear COB red light can also act as a safety marker to remind passing vehicles.
What accessories are included with the HE03?
The standard package contains the headlamp with integrated headband, a Type-C charging cable and a user manual. For bulk B2B orders, we can customize accessories, brand logos and packaging as requested.
Customization & OEM Services
SUPERFIRE provides comprehensive OEM/ODM services for the BL19 Bicycle Front Light, supporting cycling accessory brands, sports equipment distributors, corporate fleet programs, and private-label operations worldwide.
- Brand Customization
- Laser Engraving: Custom laser marking of your brand logo, model designation, and regulatory markings directly onto the ABS body — permanent, non-fading, and resistant to wear
- Color Options: Custom body colors beyond standard black (minimum quantities apply); popular cycling-specific options include safety yellow, racing red, and matte gray
- Mount Branding: Custom-printed CJ01 bracket branding with your logo and part numbers
- Accessory Branding: Custom-branded charging cables, packaging, and documentation
- Packaging Customization
- Retail Box Design: Complete creative service for packaging artwork, including window boxes, hang-tab blister cards for pegboard retail display, or eco-friendly kraft packaging
- Inner Tray Customization: Custom-formed EPE foam trays for secure product presentation with your branding
- Multi-Language Documentation: User manuals and quick-start guides translated and designed in your required languages with your company identity
- Anti-Counterfeiting: Custom holographic security labels, QR-code verification systems, and serialized numbering for brand protection
- Quality & Compliance
- IP54 certification documentation with water ingress testing reports
- CE, FCC, RoHS compliance for all standard and custom configurations
- Material composition certificates for ABS plastic and electronic components
- LED lumen output and beam pattern photometric test data available upon request
- Pre-shipment inspection reports with batch-level QC data
- Order & Logistics
- Minimum Order Quantities: Flexible and discussed on a per-order basis depending on configuration and customization scope
- Sample Lead Time: Samples typically available within approximately 2-3 weeks for standard configurations; custom pre-production samples confirmed upon order
- Production Lead Time: Discussed and confirmed upon sample approval — timelines scaled to order volume and customization complexity
- Shipping: FOB Shenzhen / EXW available; ocean freight consolidation and air freight expedited options
- Payment Terms: Discussed on order confirmation; flexible terms available for established long-term partners
- After-Sales Support: Manufacturer warranty against defects in materials and workmanship; spare parts (mounts, USB covers, batteries) available for the product’s supported lifecycle
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
