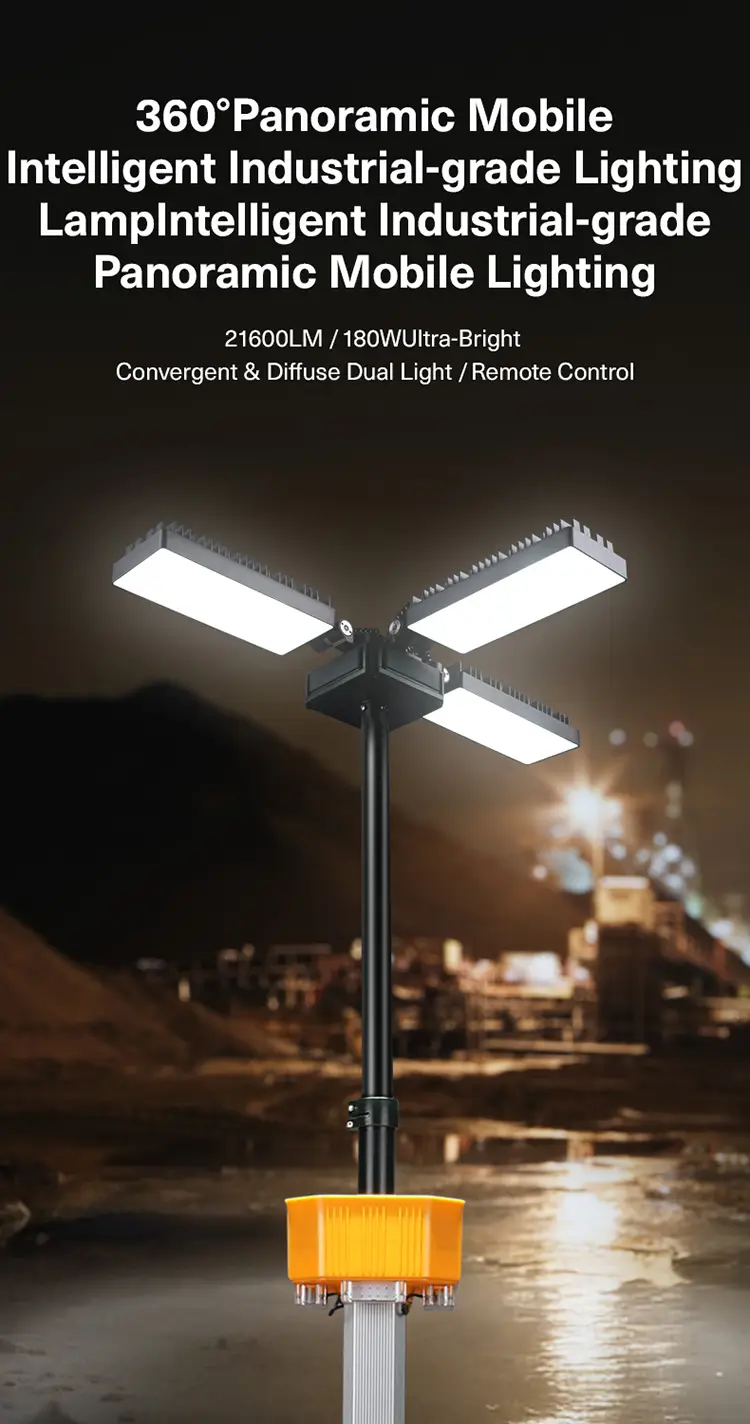

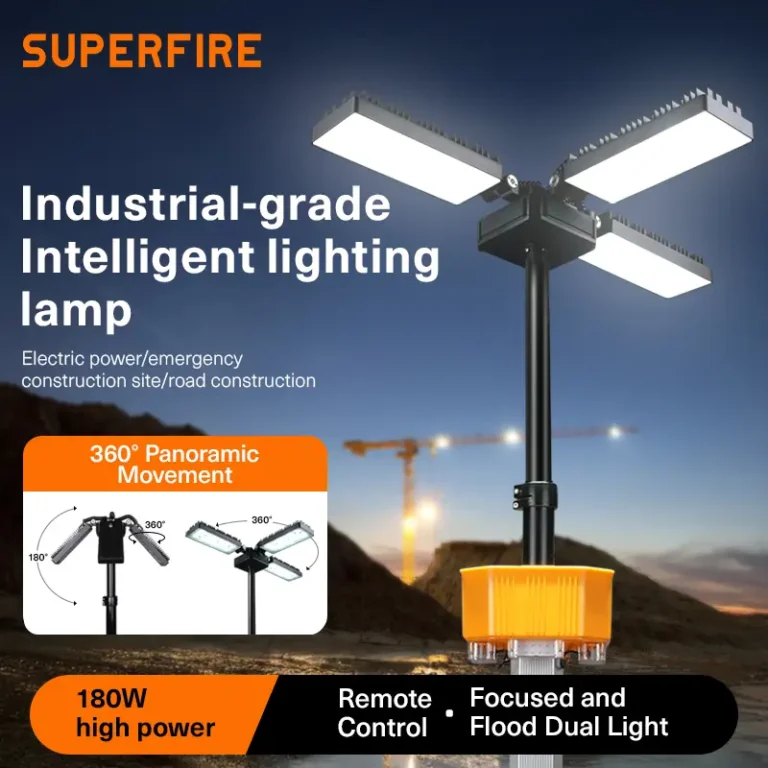

Core Overview
- Key performance: 180W LED system, 21600 lumens, 360° illumination coverage (≈1000㎡), 3.8m telescopic five-section mast (1km effective visibility range).
- Battery & runtime: 25Ah/555Wh lithium battery, 7h (spot+flood mode), 13h (single-beam mode).
- Control system: 30-meter wireless remote + smartphone app (stepless dimming, beam switching, red-blue warning strobes).
- Construction & stability: IP66-rated all-aluminum body, three-leg tripod base, operating temperature -20°C to 40°C.

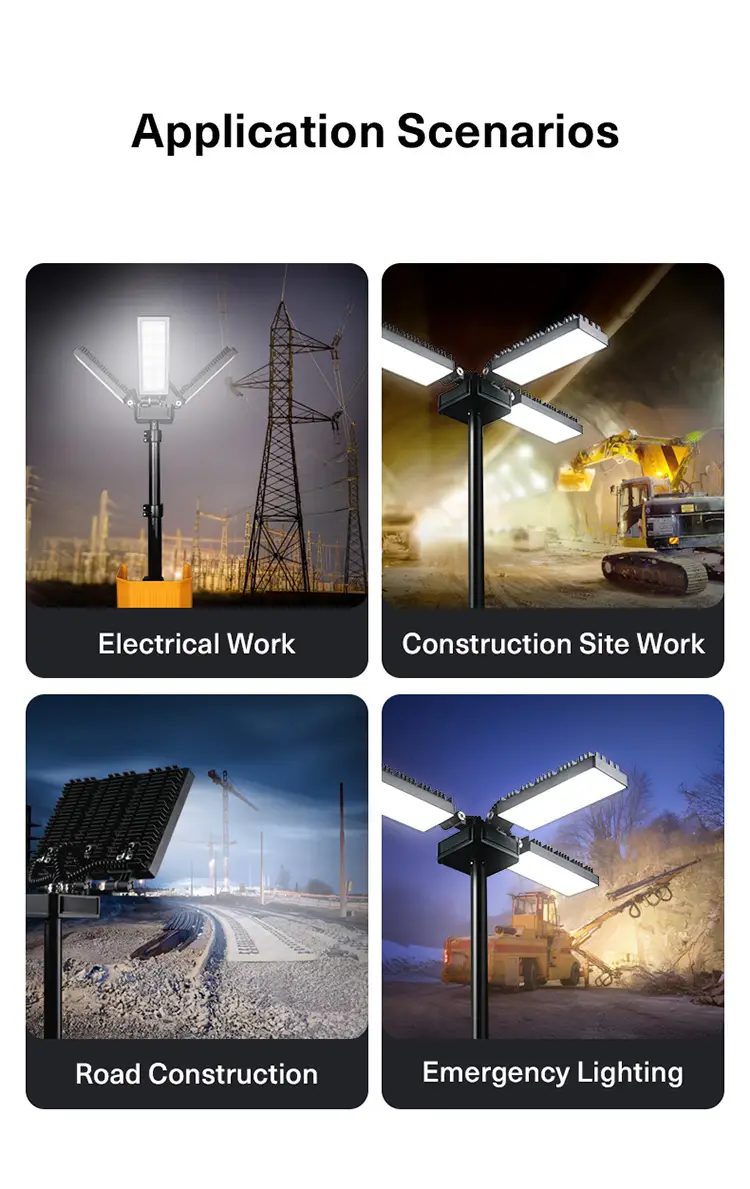

Target Applications:
- Large-scale construction and infrastructure projects
- Emergency rescue and disaster response
- Outdoor sports events and festivals
- Mining and oil field operations
- Military and security perimeter illumination

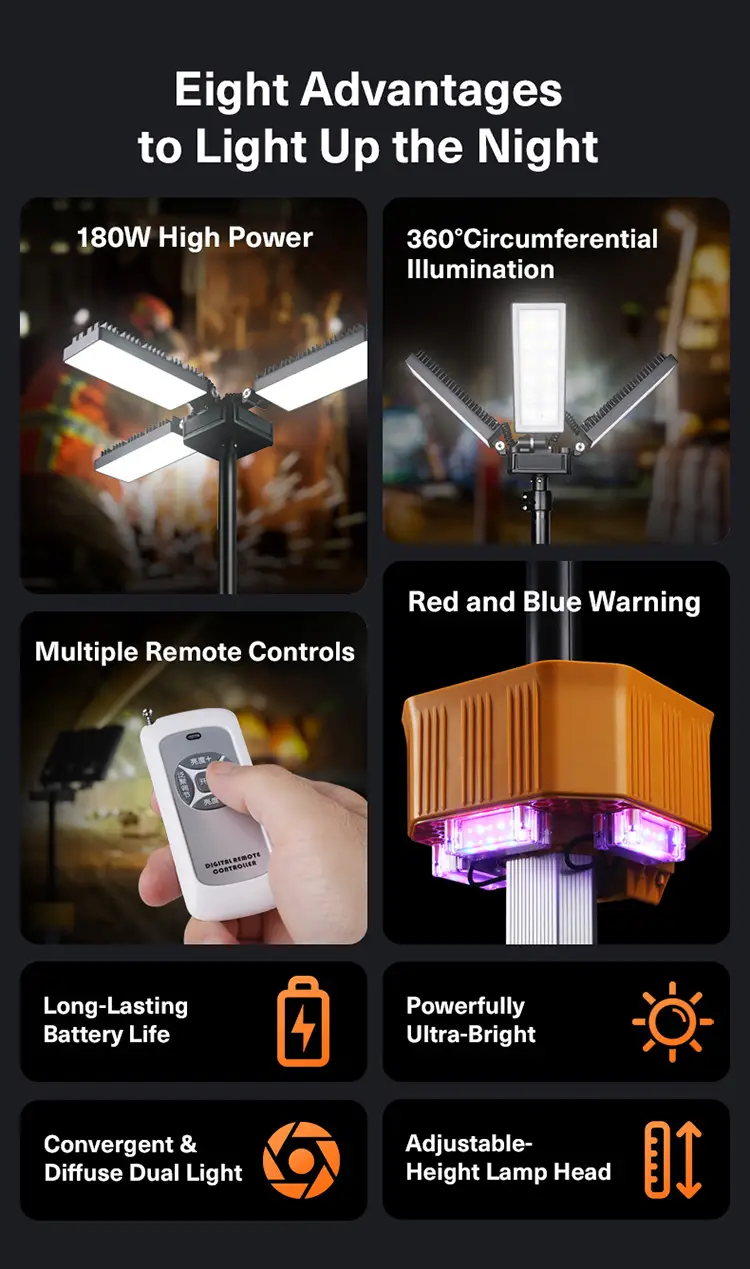

Key Product Advantages

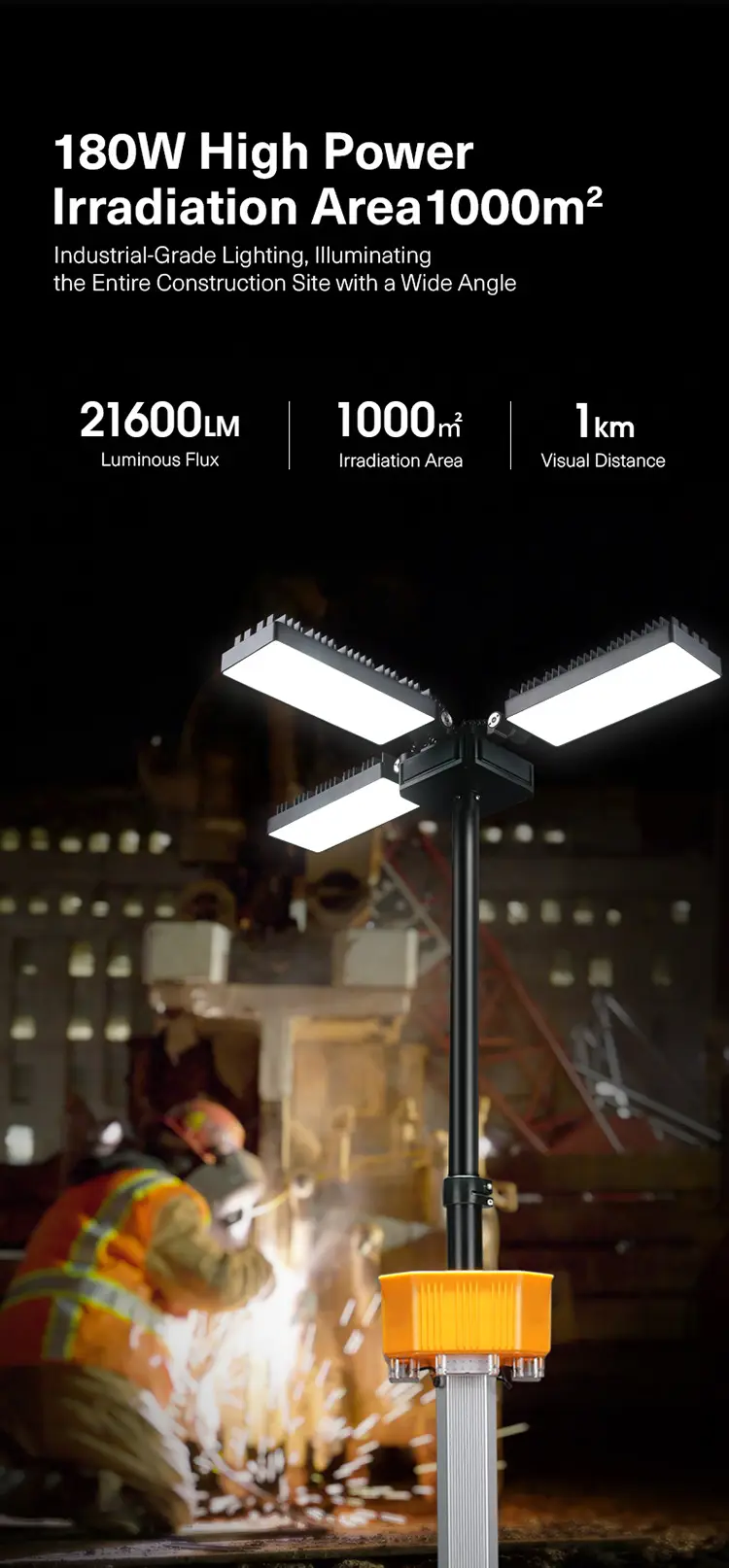

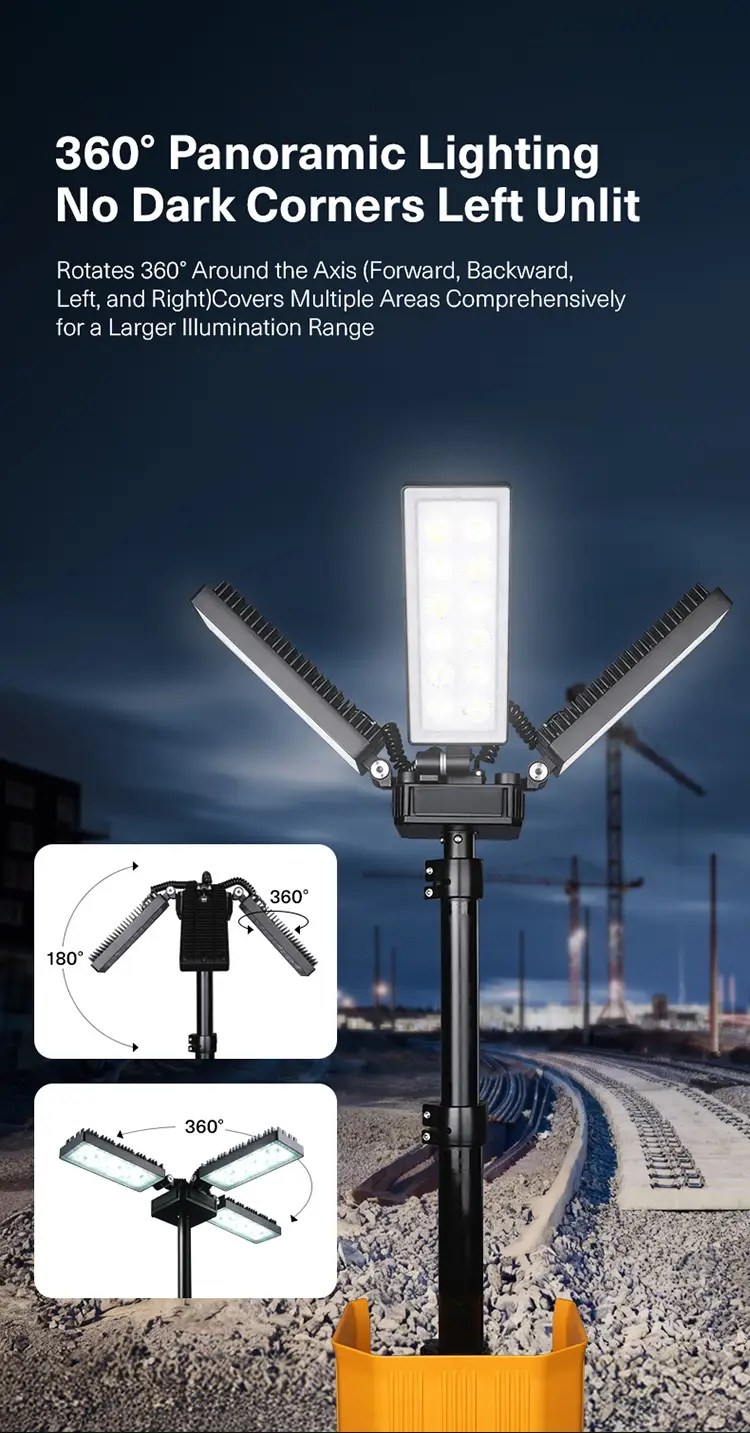

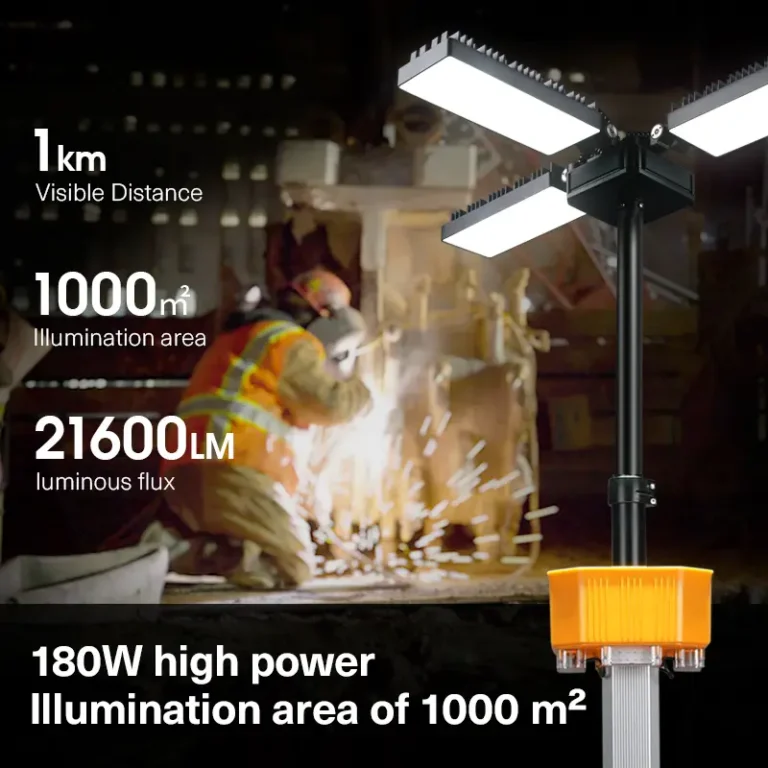

- 21600LM Dual Beam System — 1000㎡ of 360° Illumination
Single unit integrates spot/flood beams, 21600 lumens total output, 360° panoramic coverage (1000㎡). Support spot-only/flood-only/combined modes.

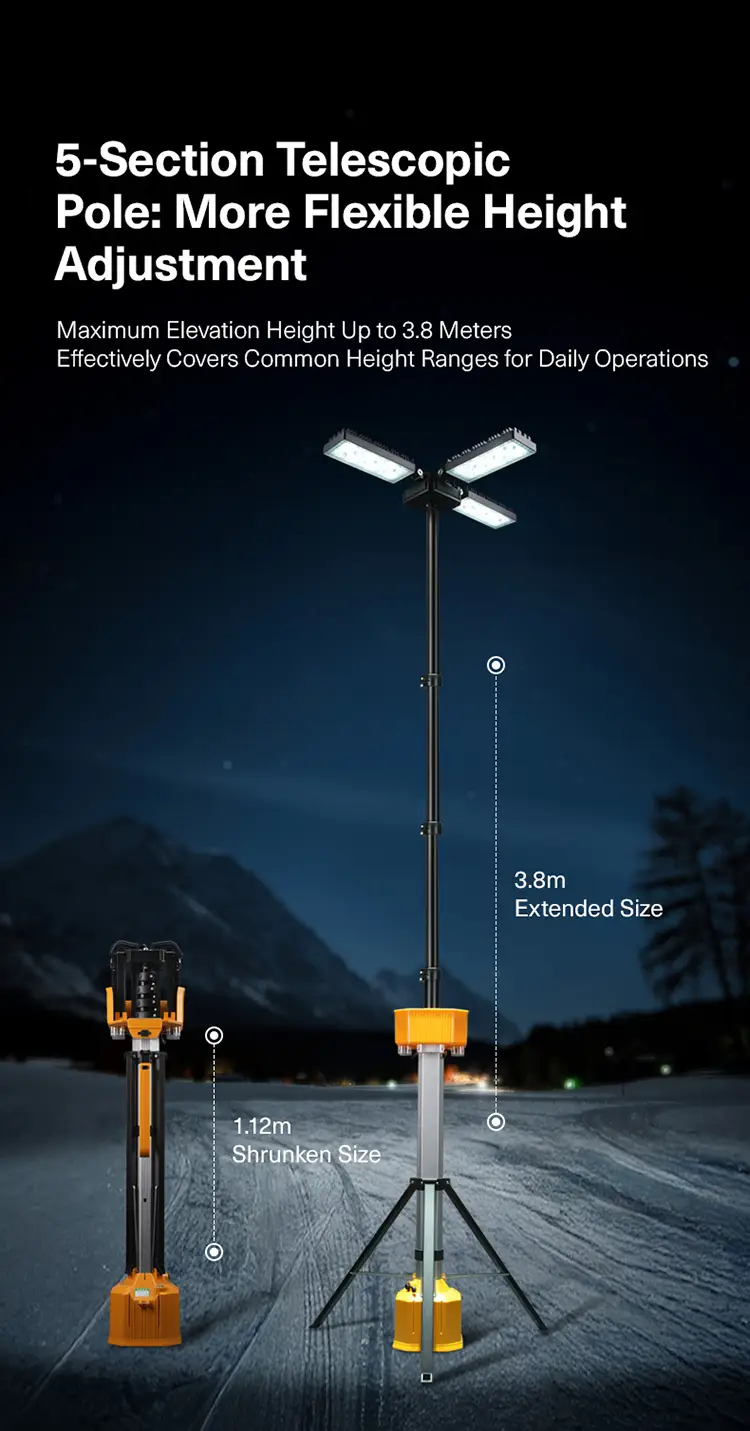

- 3.8-Meter Telescopic Mast with 1km Visibility
Telescoping pole: retracted 1.12m → extended 3.8m (avoids shadows from vehicles/equipment). Visible up to 1km at max height (positional beacon function).

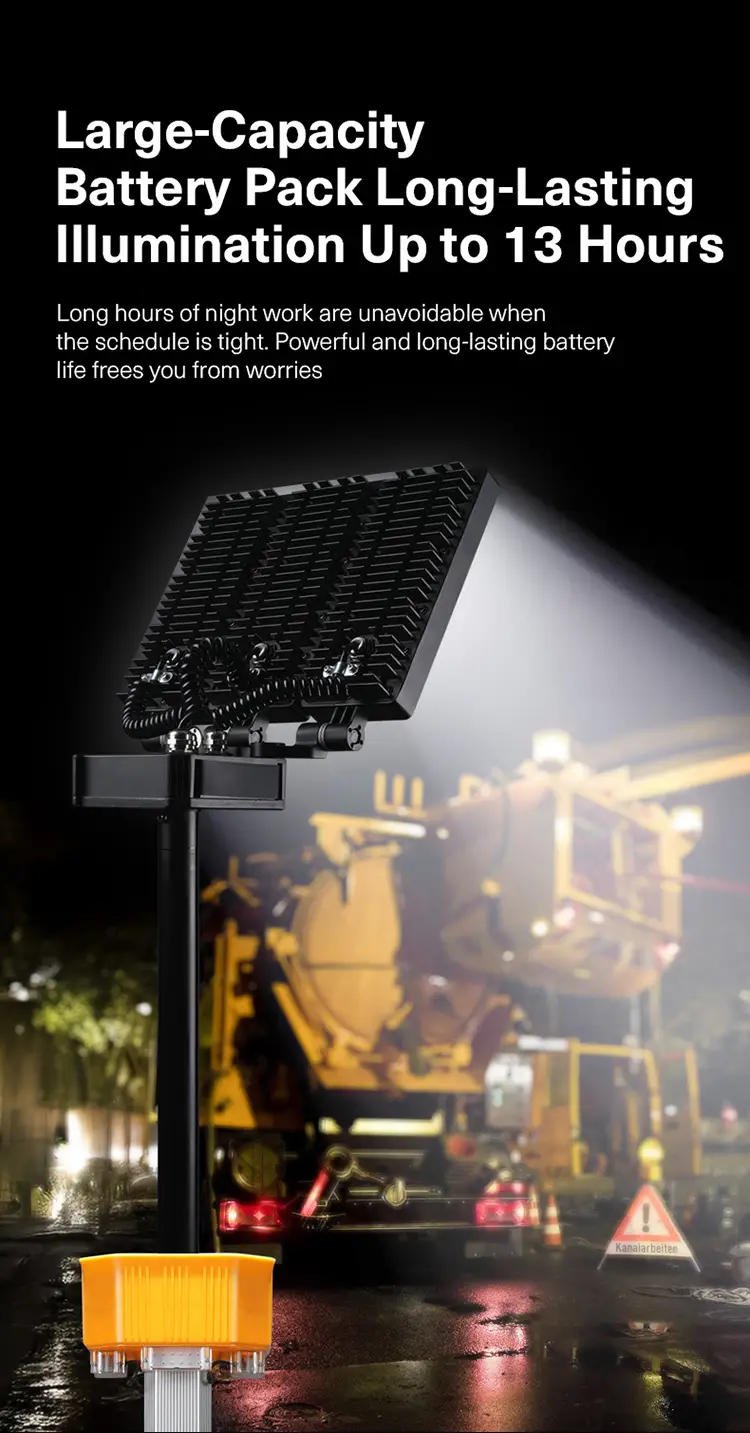

- 555Wh Battery — 7 to 13 Hours of Continuous Operation
25Ah/555Wh lithium battery: 7h (combined spot+flood high), 13h (single beam). 5-hour full recharge (suitable for daytime charging, overnight use).

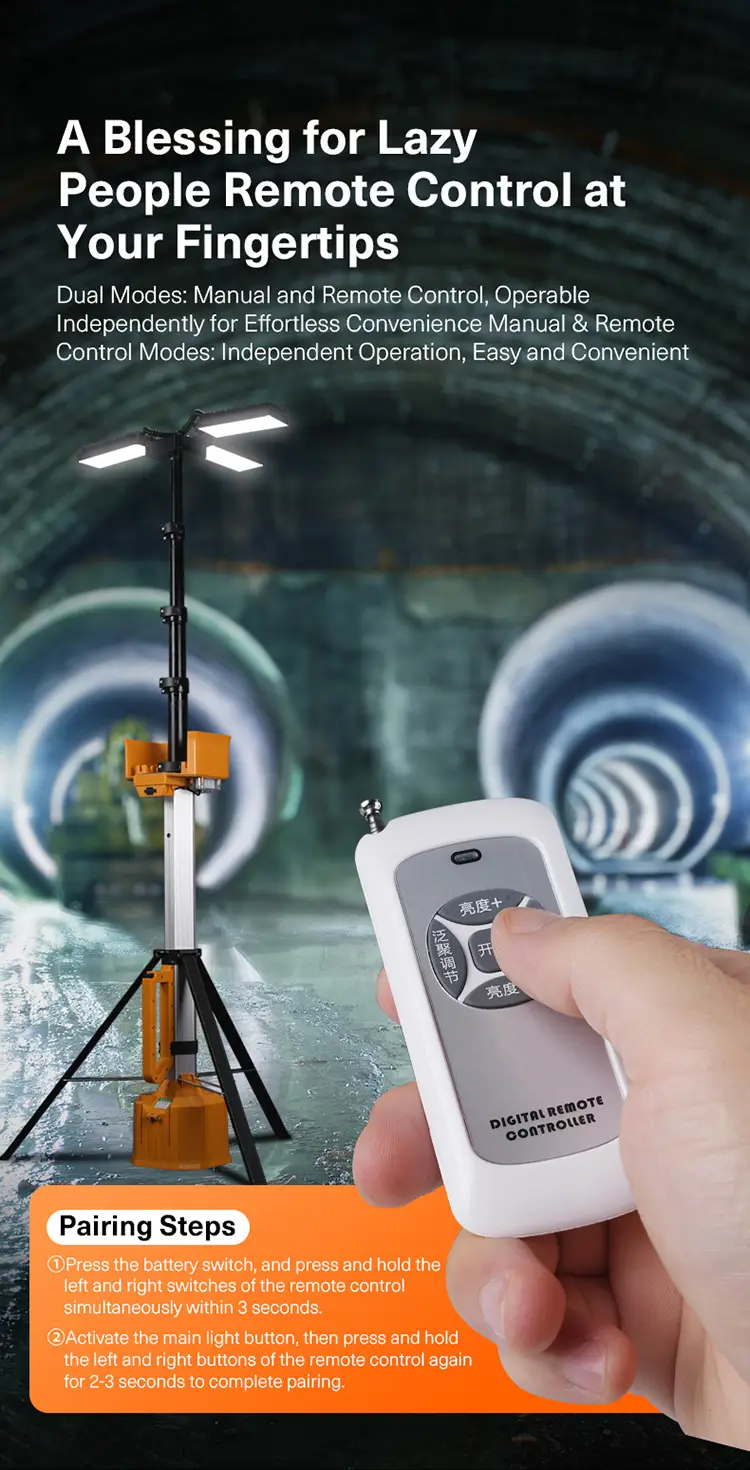

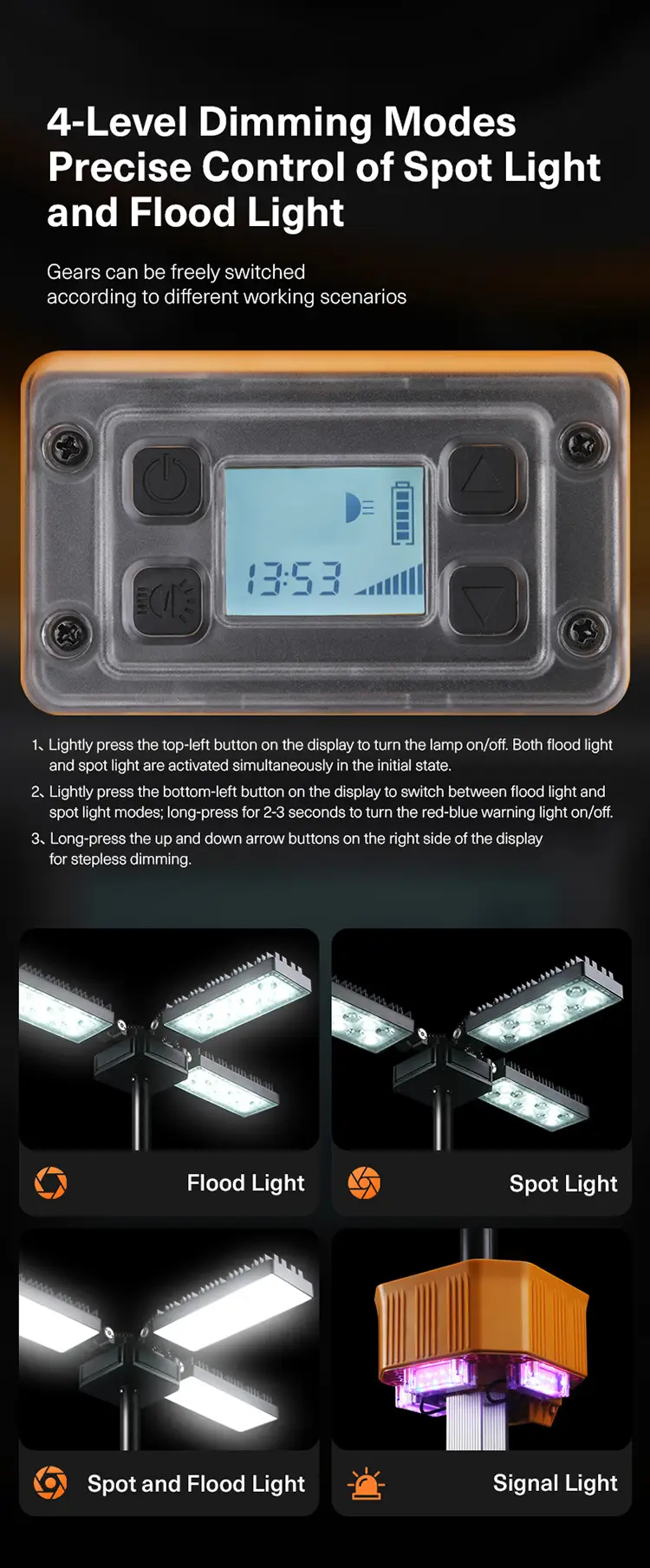

- Dual Remote + Smartphone APP Control System

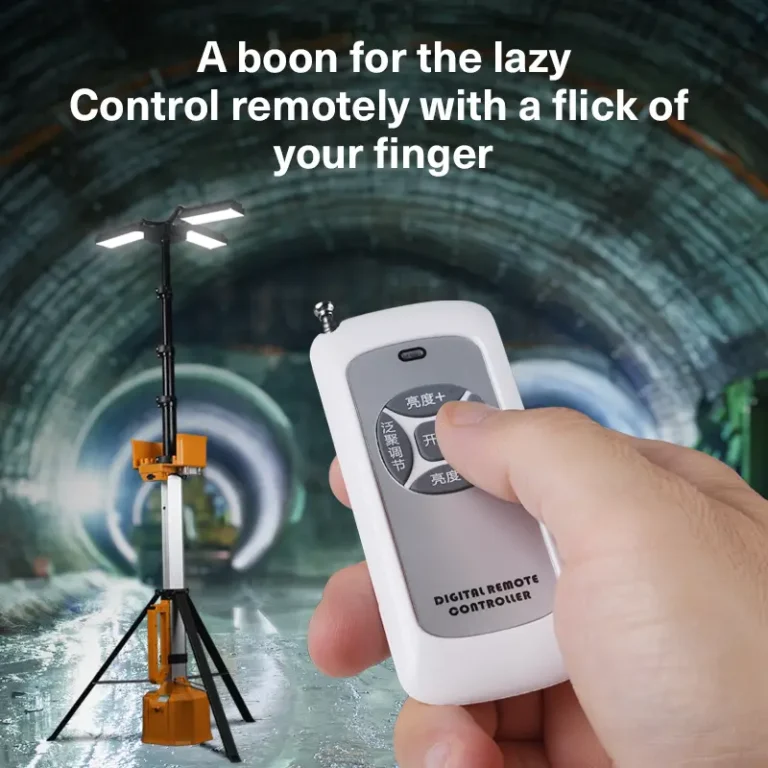

- Wireless remote (30m range): quick field adjustments.
- Smartphone app: granular control, scene presets, group management of multiple units.
- Both support stepless dimming, beam switching, strobe activation.

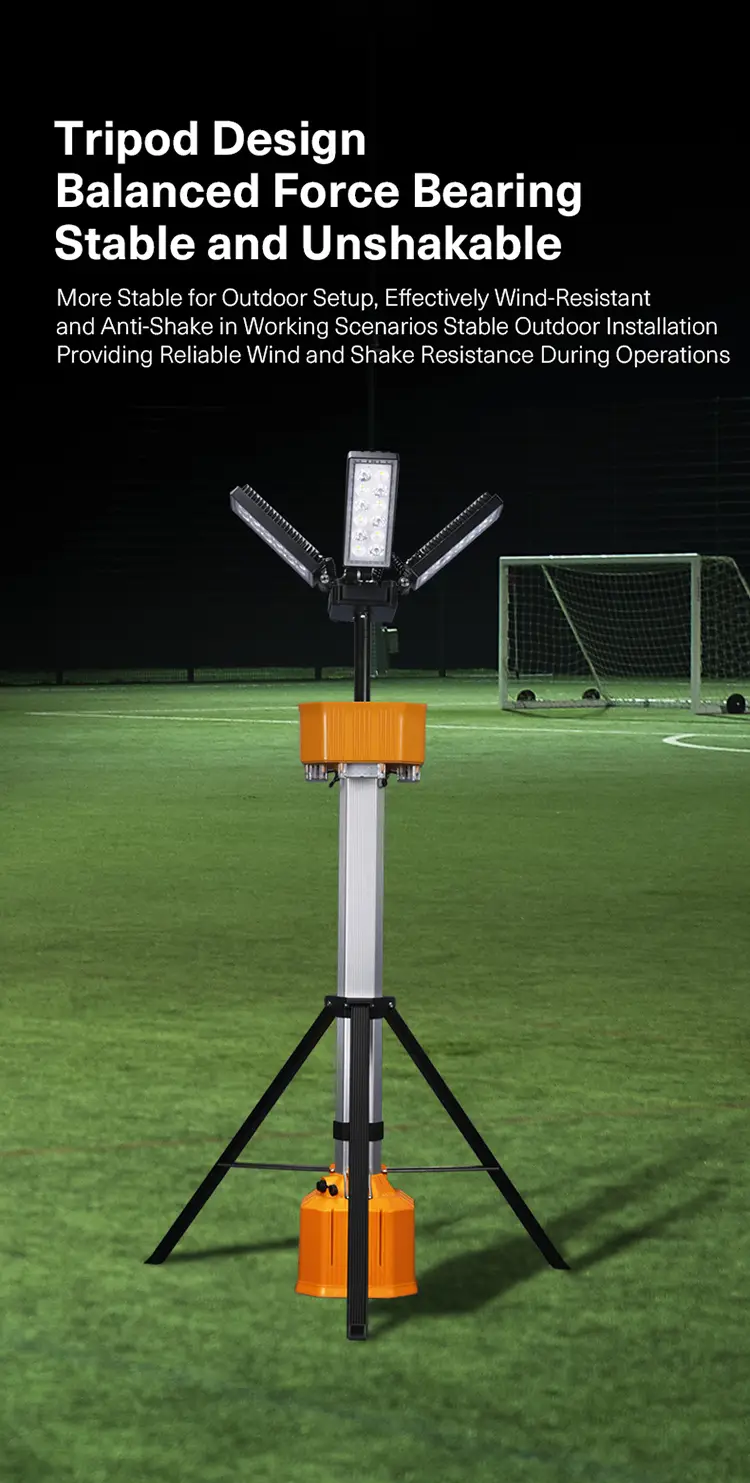

- IP66 All-Weather Construction with Tripod Stability
- IP66 all-aluminum body: dust-tight, resistant to water jets/heavy rain.
- Three-leg tripod: stable on uneven ground.
- Operating temperature: -20°C to 40°C (adapt to extreme environments).

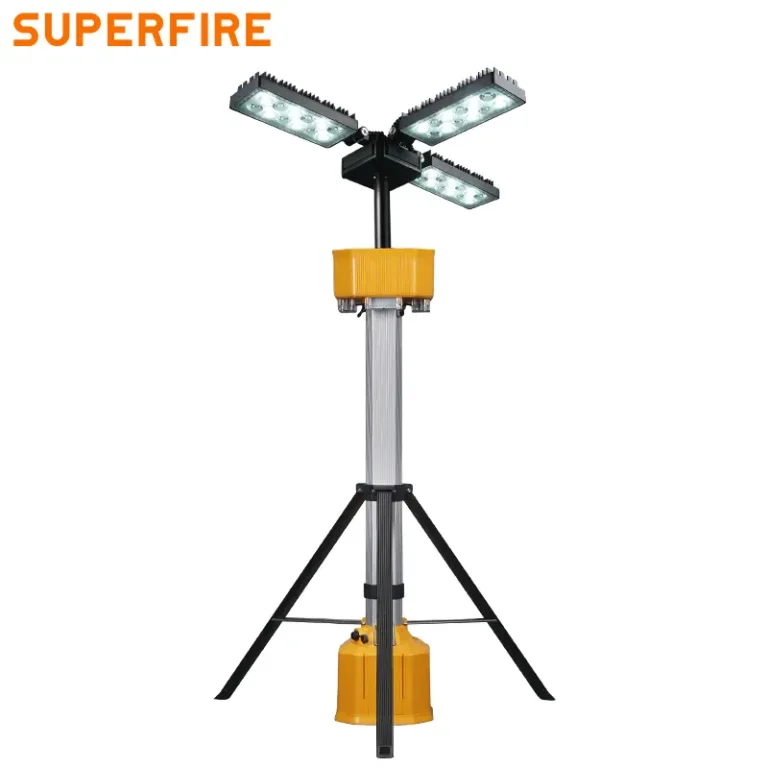

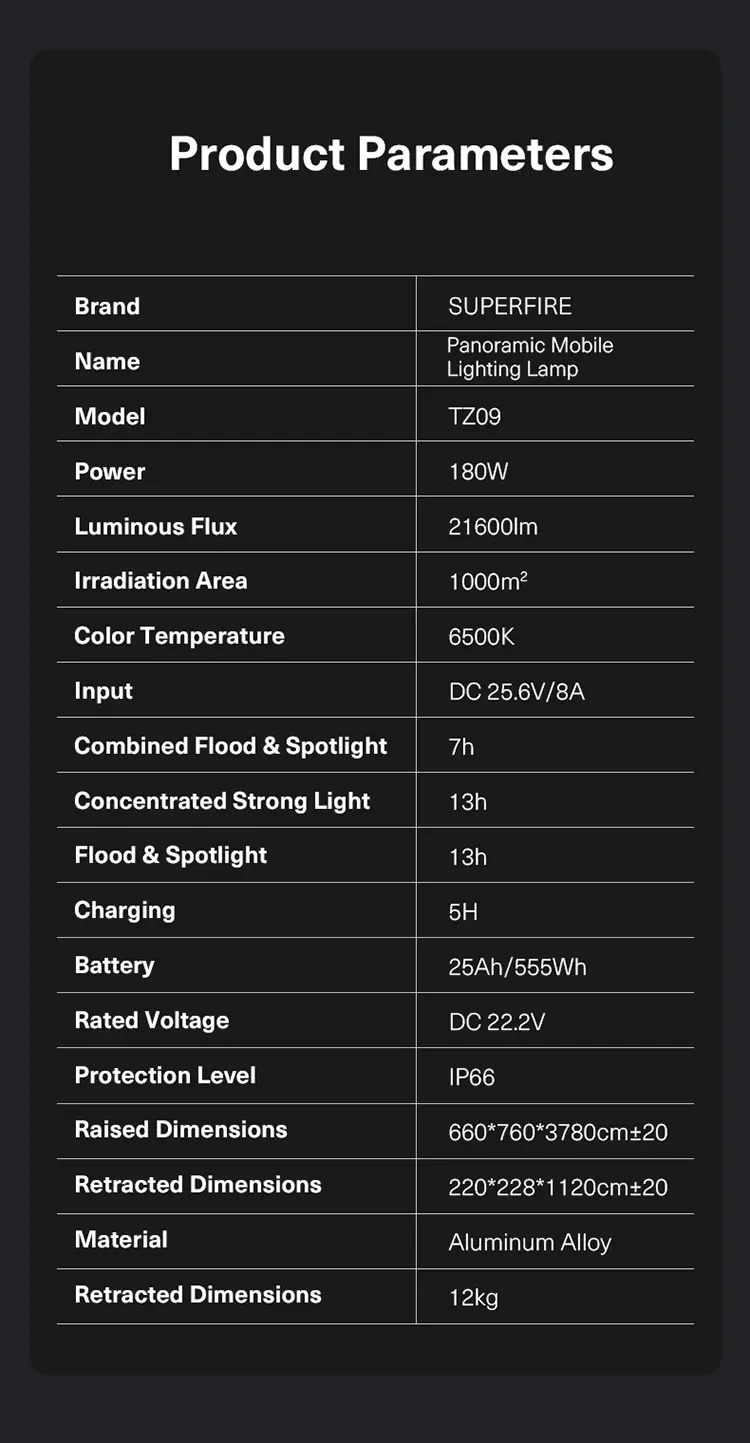

Specifications of TZ09 Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | TZ09 |
| Product Type | Panoramic Mobile Lighting Tower |
| Rated Power | 180W |
| Lumens | 21600LM |
| Illumination Area | Approximately 1000㎡ |
| Color Temperature | 6500K |
| Input | DC 25.6V / 8A |
| Rated Voltage | DC 22.2V |
| Battery | 25Ah / 555Wh |
| Runtime | 7H (Spot + Flood High), 13H (Spot Only / Flood Only) |
| Charging Time | Approximately 5H |
| Water Resistance | IP66 |
| Operating Temperature | -20℃ ~ +40℃ |

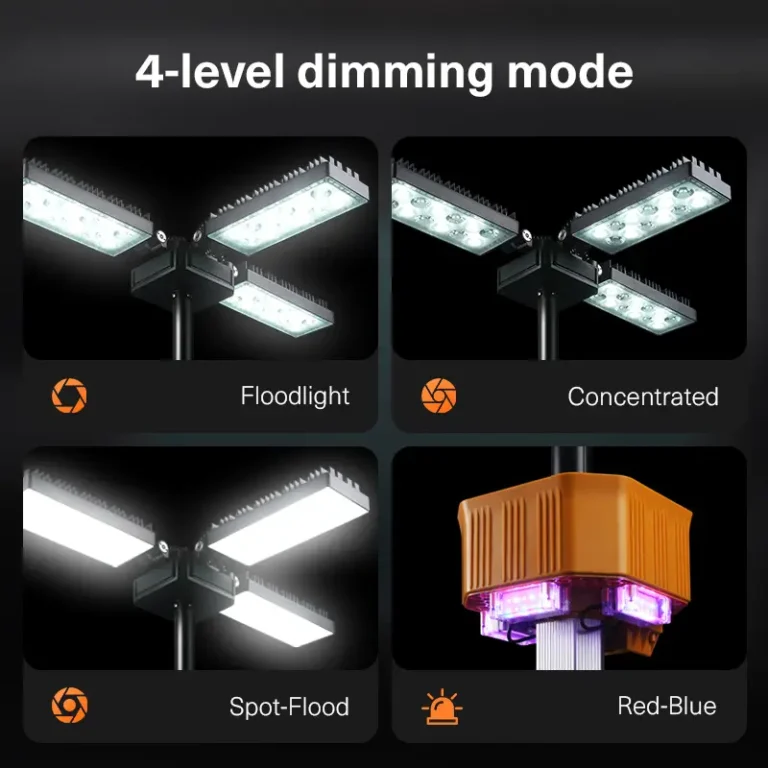

| Light Modes | Spot High, Flood High, Spot + Flood High, Red-Blue Strobe |
| Control | Wireless Remote (30m) + Smartphone APP |
| Mast Height | 660 × 760 × 3780mm (±20mm, Extended) |
| Retracted Dimensions | 220 × 228 × 1120mm (±20mm) |
| Material | Aluminum Alloy |
| Net Weight | 12kg |
| Gross Weight | 16kg |
| Package Dimensions | 120 × 31 × 31cm |
| Barcode | 6977502516602 |
| Features | Spot + Flood Dual Beam, 360° Illumination, Stepless Dimming, Remote + APP Control, 3.8m Telescopic Mast, Tripod Base, 1km Visibility, Red-Blue Strobe |

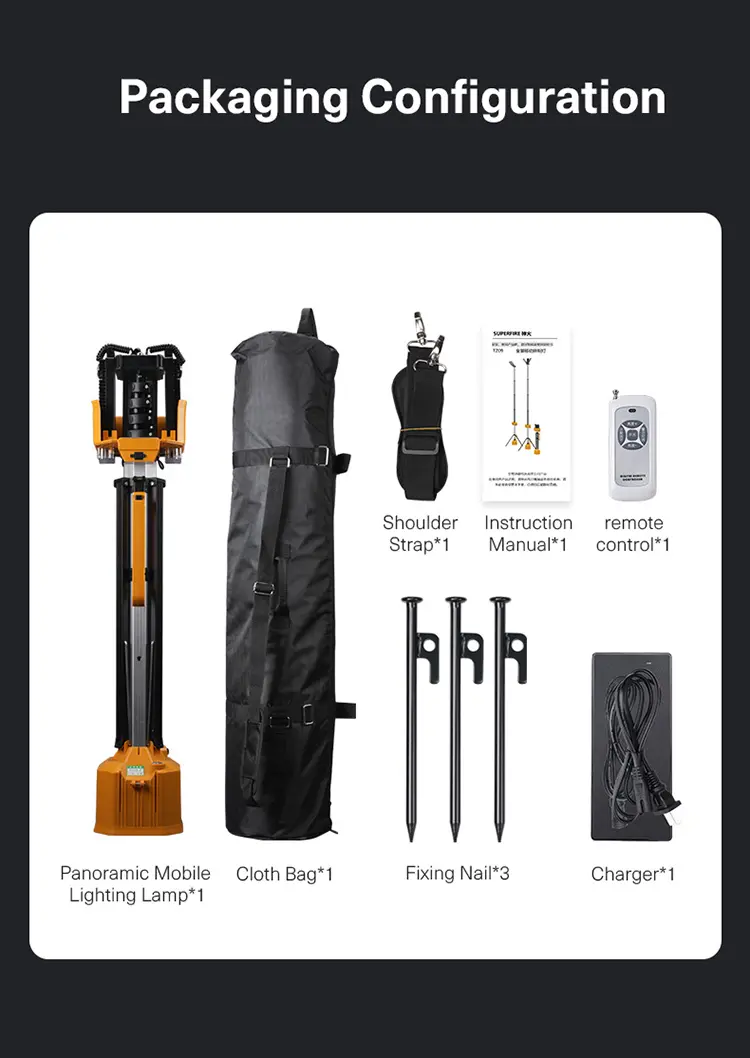

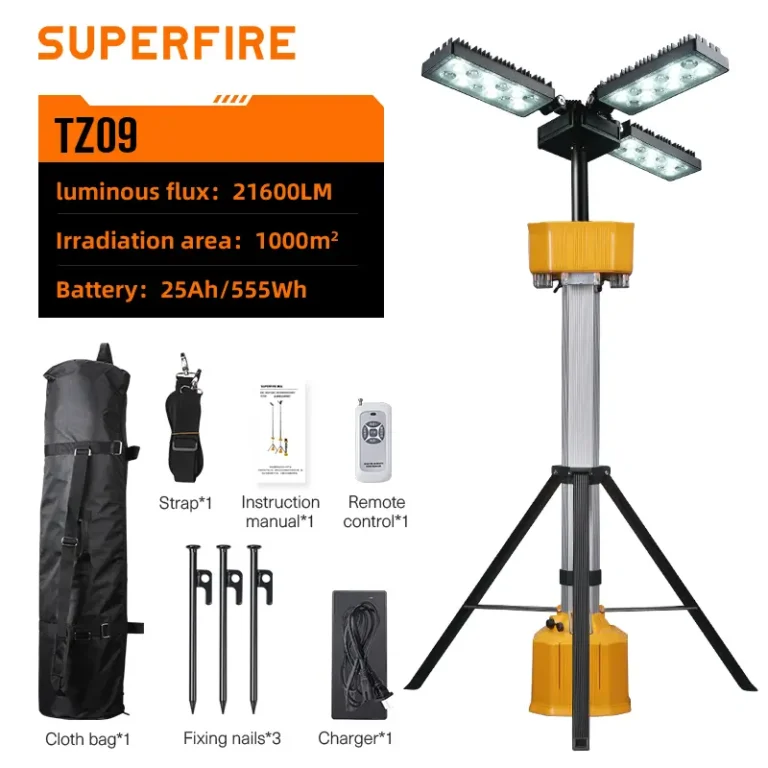

Package Contents
- TZ09 Panoramic Mobile Lighting Tower ×1 (with nameplate)
- Wireless Remote Control ×1
- Charger ×1
- Fixing Pins ×3
- Storage Bag ×1
- Charger Box ×1
- Shoulder Strap ×1
- User Manual ×1
- Certificate of Conformity ×1
- Inner Tray ×1
- Outer Carton with Label ×1

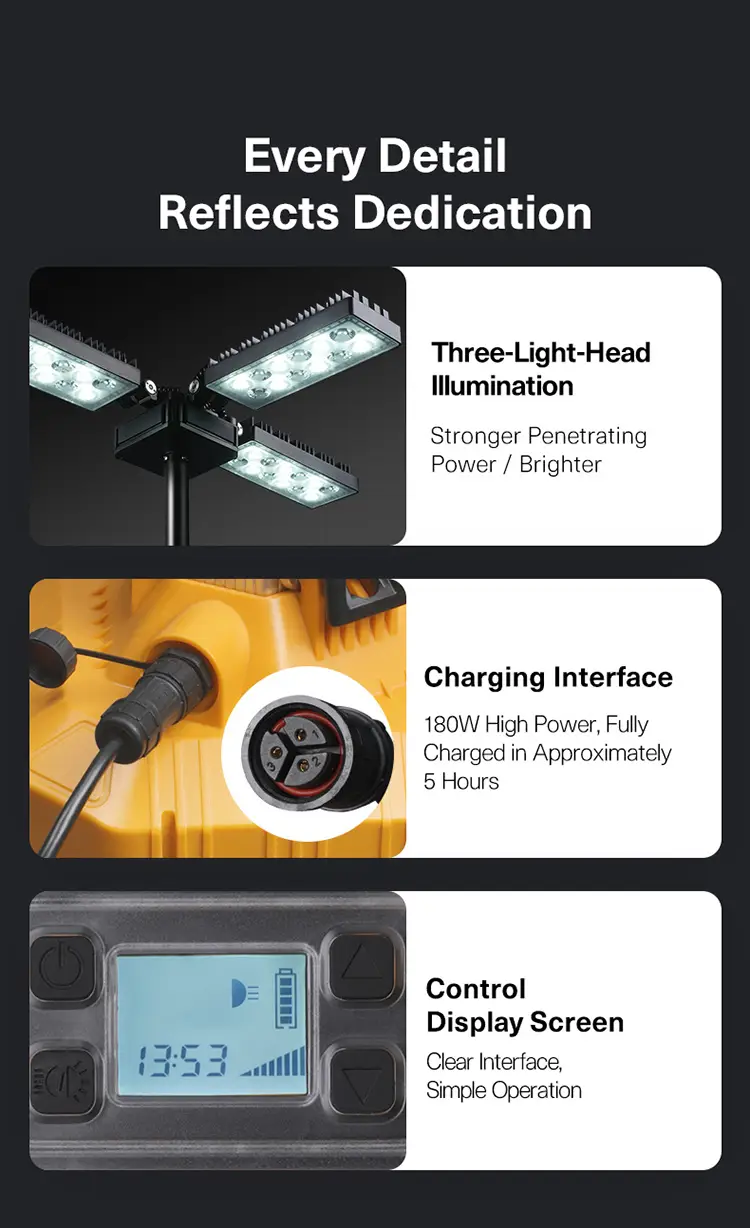

Details of SUPERFIRE TZ09 Tactical Flashlight
Video
FAQ
How is the TZ09 transported and deployed on site?
- Retracted size: 220 × 228 × 1120mm, net weight 12kg (single operator manageable).
- Deployment: position tripod (adjust leg lengths for uneven terrain) → extend mast to max 3.8m → power on.
- Accessories: shoulder strap/storage bag for short-distance carry; gross weight 16kg (standard freight compatible).
Can multiple TZ09 units be controlled simultaneously?
Smartphone APP supports group management: control multiple units via one device (synchronize brightness, switch modes, activate/deactivate). Ideal for large sites/events/emergency staging.
What is the difference between spot mode and flood mode, and when should each be used?
- Spot mode: concentrated beam (1km visibility) → distant work areas/signaling/search.
- Flood mode: 360° broad dispersion → uniform area illumination.
- Combined mode: both long-range + close coverage → 7h runtime (highest power consumption).
How does the red-blue strobe function serve operational needs?
360° high-visibility alert beacon:
- Emergency response: mark triage/command areas.
- Roadside work: alert approaching traffic.
- Security: perimeter marking.
- 3.8m mast height → visible at extended distances (low-visibility conditions).
What maintenance is required for long-term deployment of the TZ09?
- Minimal maintenance (IP66 sealed aluminum + solid-state LED).
- Routine care: inspect mast/tripod joints for debris; clean lens with soft cloth; store battery at 50–80% charge (long-term idle).
- Battery cycle: charge to 100% → discharge to ~20% every 3 months (long-term storage).
Customization & OEM Services
SUPERFIRE provides OEM/ODM services for distributors, government procurement agencies, private-label brands worldwide.
- Brand Customization
- Laser Engraving / Nameplate: custom logo/model/parameters (mast/light head).
- Color Scheme: custom powder coating/anodizing (MOQ applies).
- Custom Model Numbering: replace/append TZ09 with internal SKU.
- Packaging Customization
- Case Design: custom flight/transport/retail packaging (branded artwork).
- Color Customization: Pantone-matched case colors.
- Insert Tray: custom foam/thermoformed inserts (component organization).
- Accessory Bundling: add extra remotes/chargers/cables or branded items.
- Manual & Documentation: multi-language manuals (branded, custom procedures/contact).
- Product Customization
- LED Configuration: alternative color temperatures/spectra.
- Battery Configuration: custom capacity (runtime adjustment).
- Mast Height: modified telescopic sections (elevation requirements).
- Control System: custom APP branding/features, alternative remote protocols.
- Accessory Ecosystem: custom transport/solar charging/vehicle-mount kits.
- Quality & Compliance
- Certifications: CE, FCC, RoHS (standard/custom units).
- Compliance docs: for government procurement/international distribution.
- QC: incoming/in-process/pre-shipment testing; third-party testing (SGS/TÜV/Intertek) available.
- Order & Logistics
- MOQ: flexible (per order configuration/customization).
- Sample Lead Time: 1–2 weeks (standard); custom samples confirmed on order.
- Production Lead Time: confirmed post-sample approval (scaled to volume/complexity).
- Shipping: FOB Shenzhen/EXW; accept customer-nominated forwarders.
- Payment Terms: flexible (long-term partners).
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
