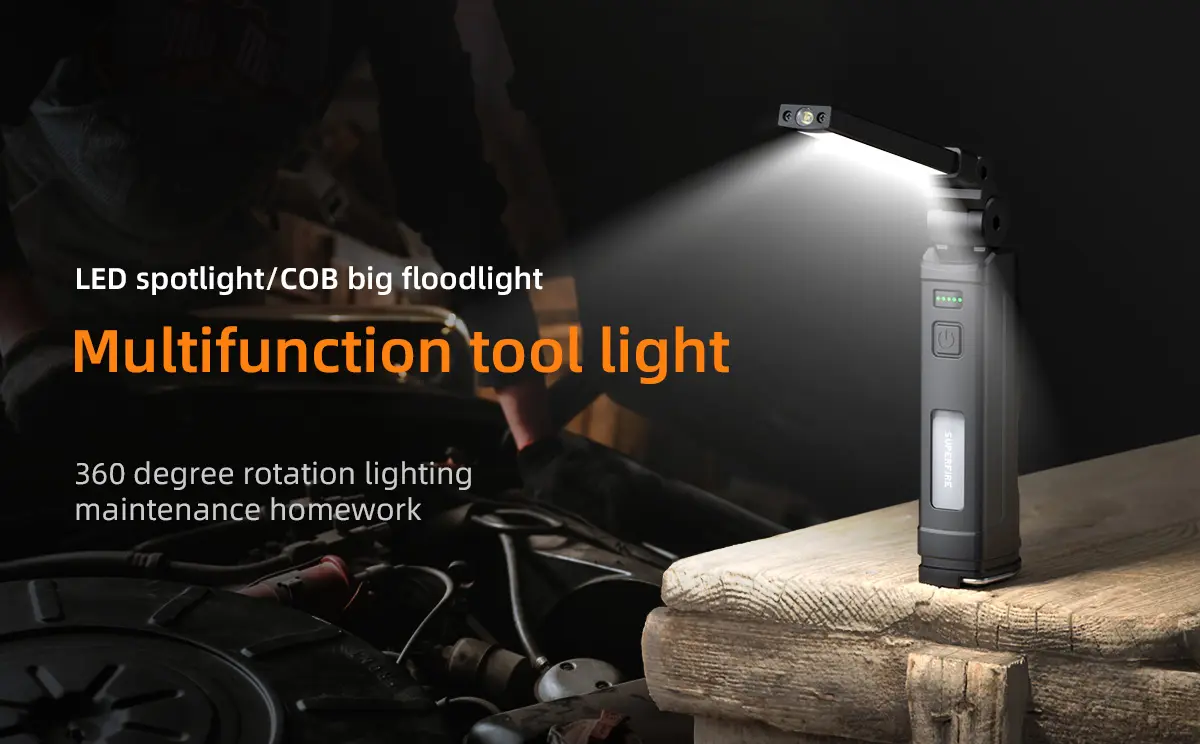

Core Overview
The G16-S’s comprehensive mounting ecosystem solves the hands-free lighting challenge from every angle: a magnetic base for attachment to ferrous metal surfaces, a flip-out hanging hook for overhead suspension, a retractable spring-loaded grip clip for securing to belts and webbing, and an included charging dock base that serves double duty as a stable tabletop stand with pass-through charging capability. The 18650/2000mAh built-in battery delivers approximately 4.5 hours of runtime on both front and COB modes, with Type-C recharging in approximately 3.5 hours. A USB power bank output and IP42-rated PC + TPR body round out a work light designed for the realities of daily professional use.
- Automotive repair and vehicle maintenance
- Electrical and HVAC installation and inspection
- Plumbing and pipe fitting work
- Warehouse and logistics facility maintenance
- Residential and commercial building maintenance
Key Product Advantages

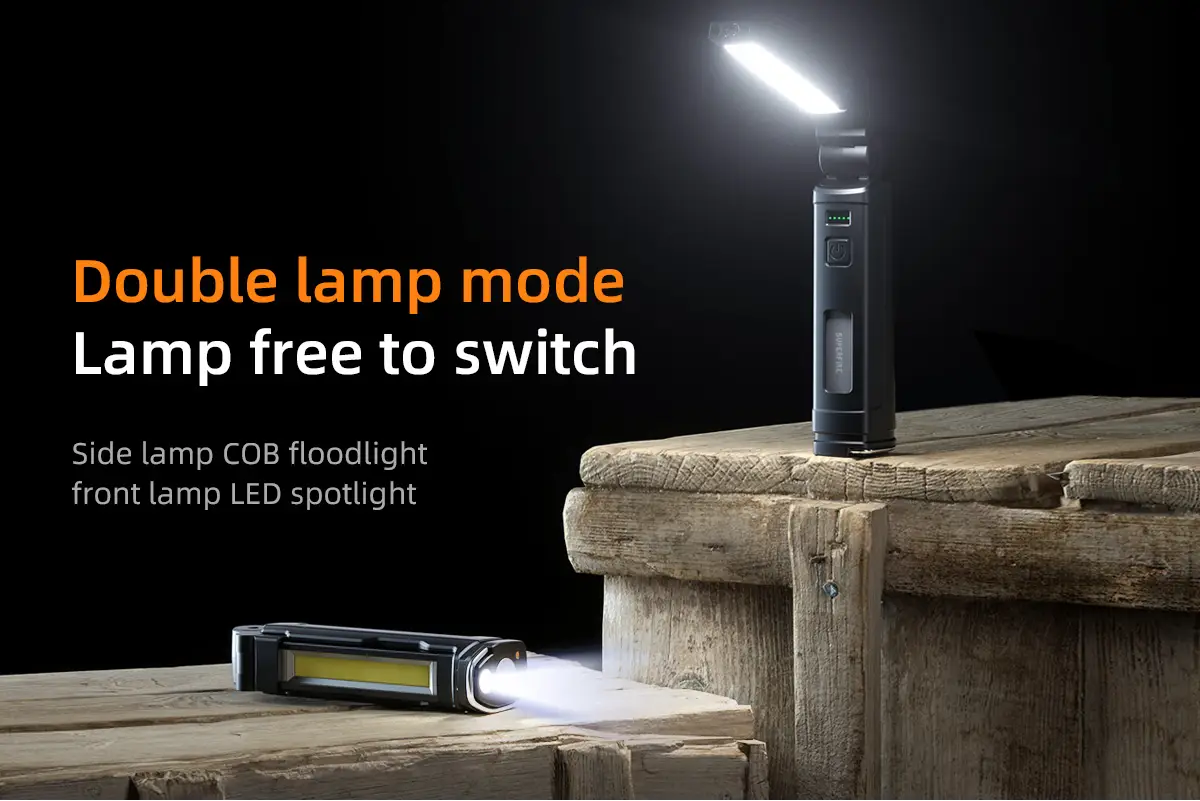

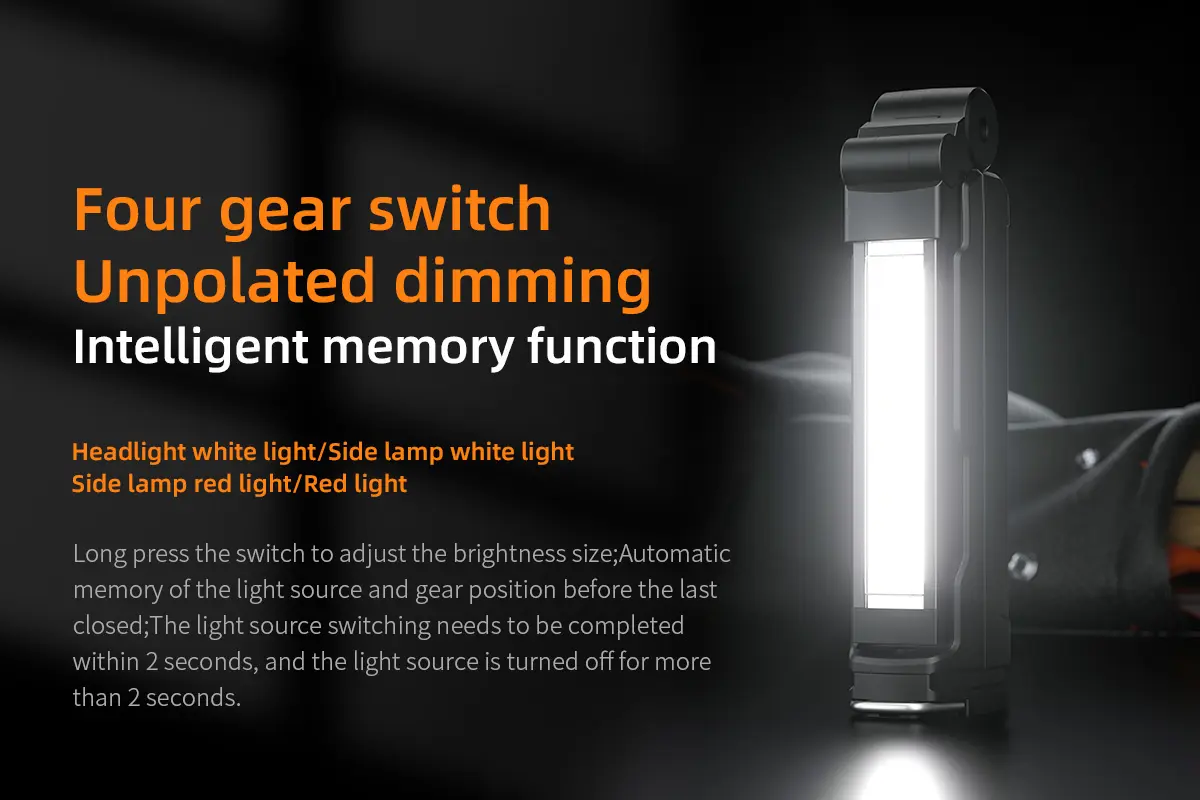

- Triple Light Source with Stepless Dimming and Mode Memory

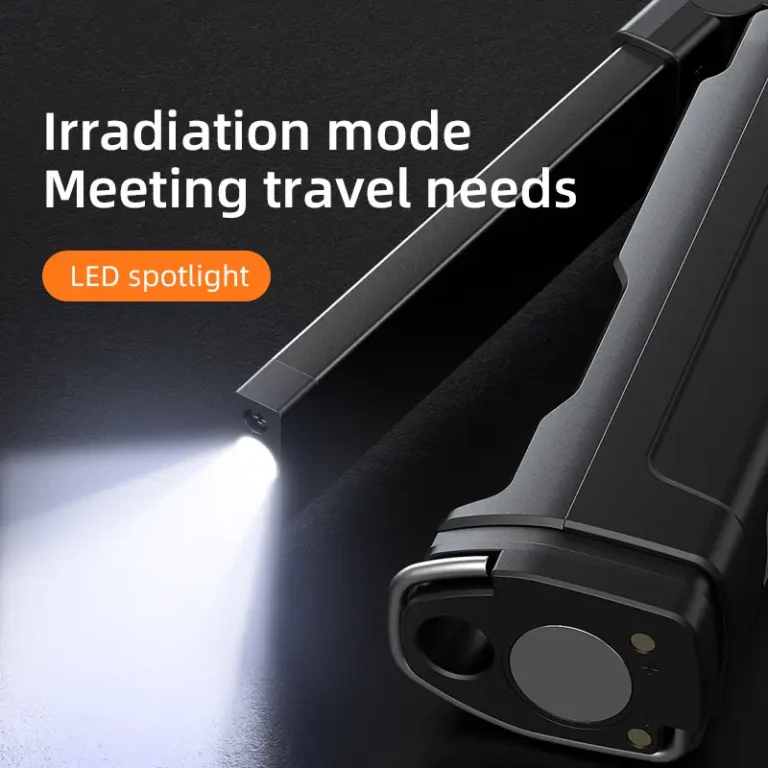

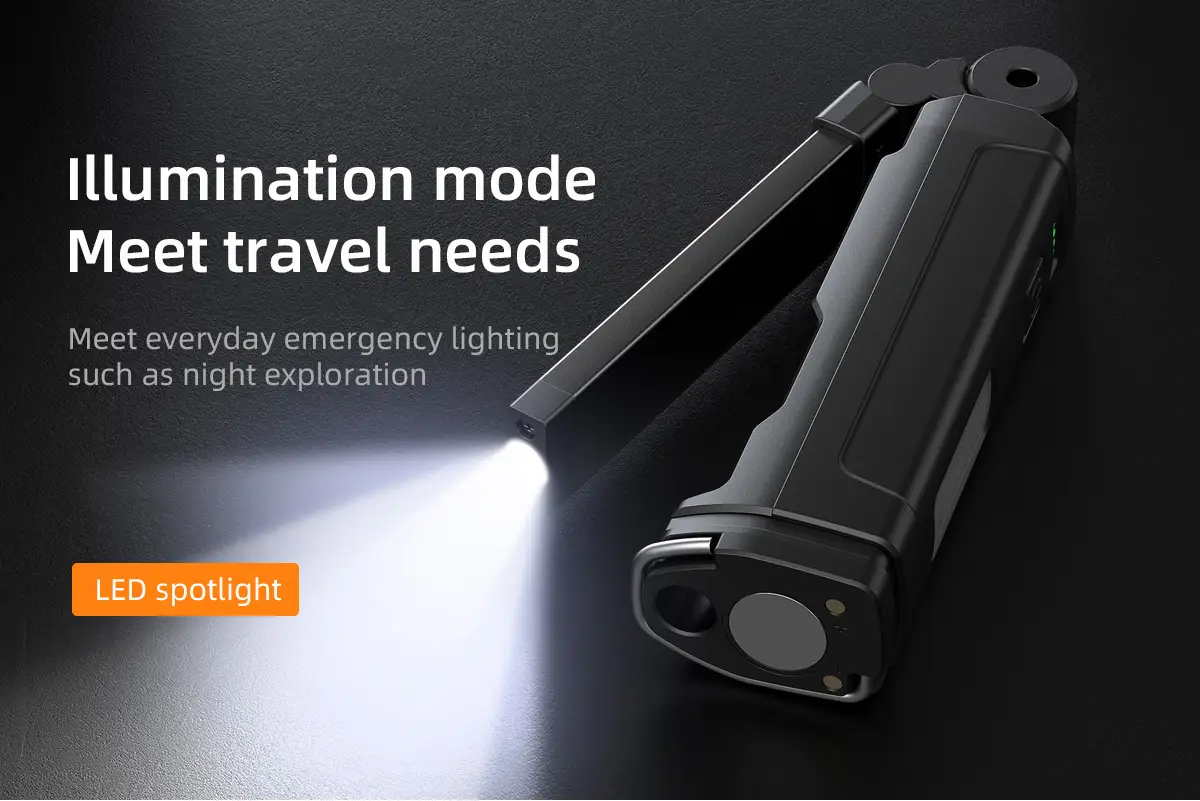

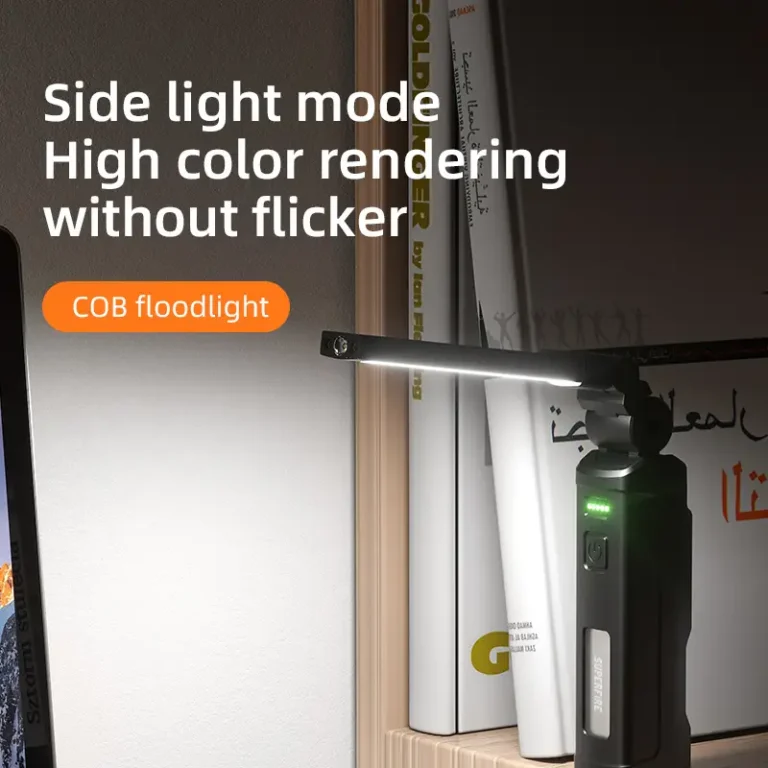

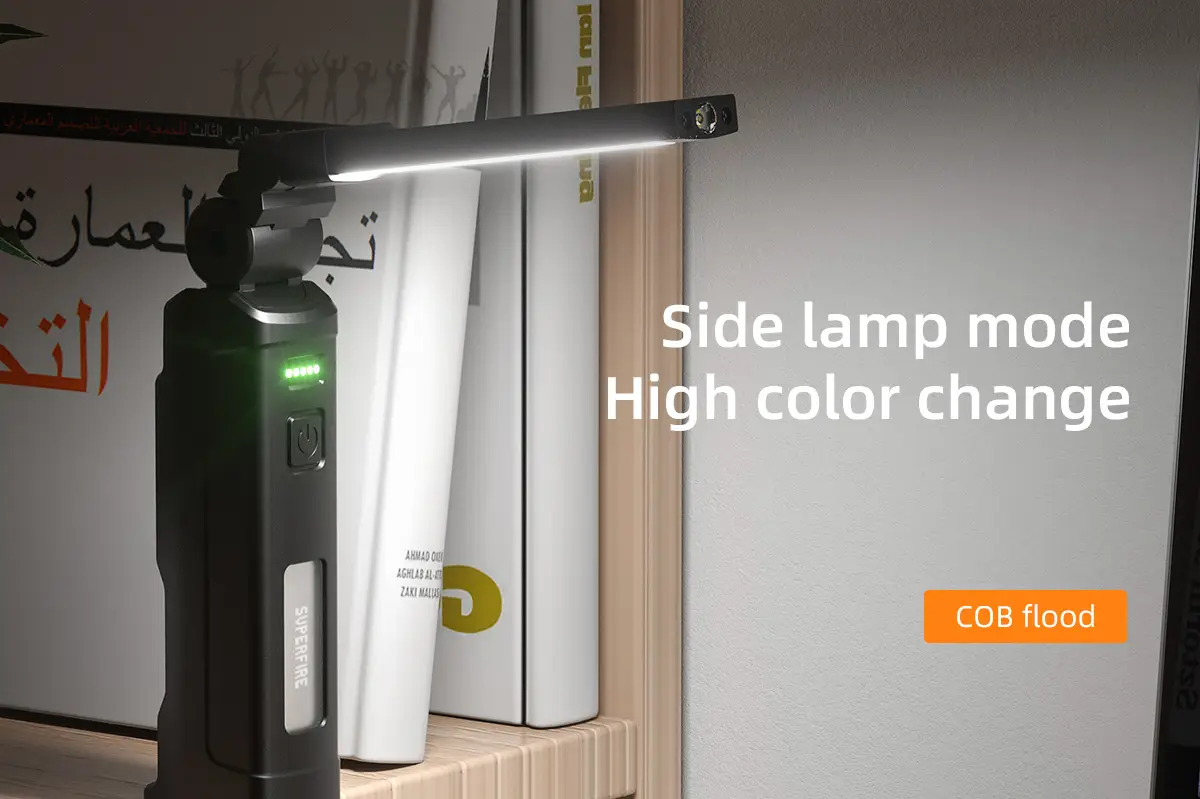

The G16-S integrates a front-facing LTG31W spotlight for long-range inspection (70m/300LM), a side COB white flood panel for broad-area task illumination (35m/700LM), and a COB red light with steady and strobe modes for safety signaling and night vision preservation. Stepless dimming — press and hold the switch in any mode — allows precise brightness control from minimum to maximum. When turned off, the G16-S automatically remembers the last-used mode and brightness level, eliminating the need to re-cycle through settings each time it’s activated.

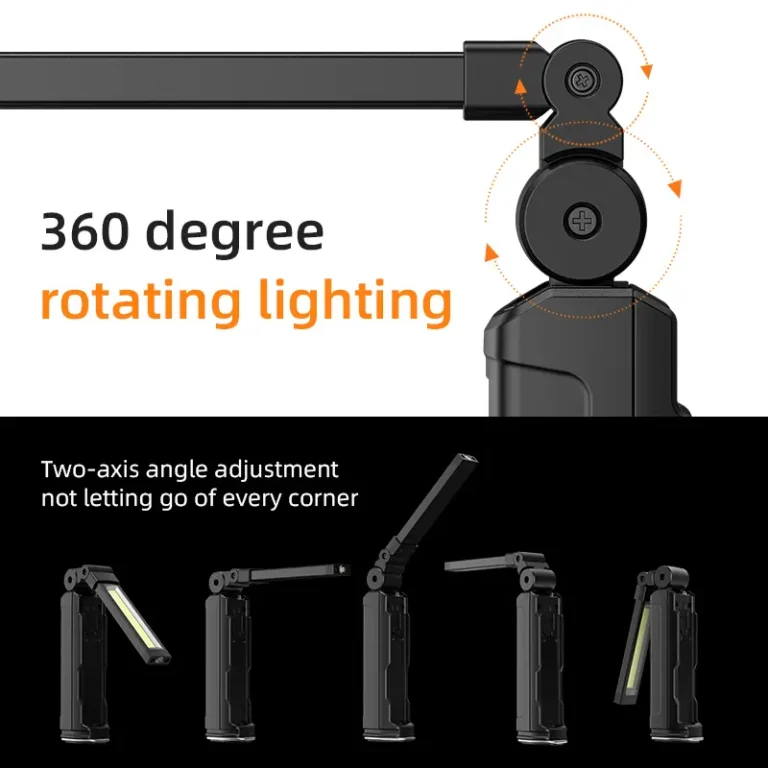

- Four-Way Hands-Free Mounting — Magnet, Hook, Clip, and Dock

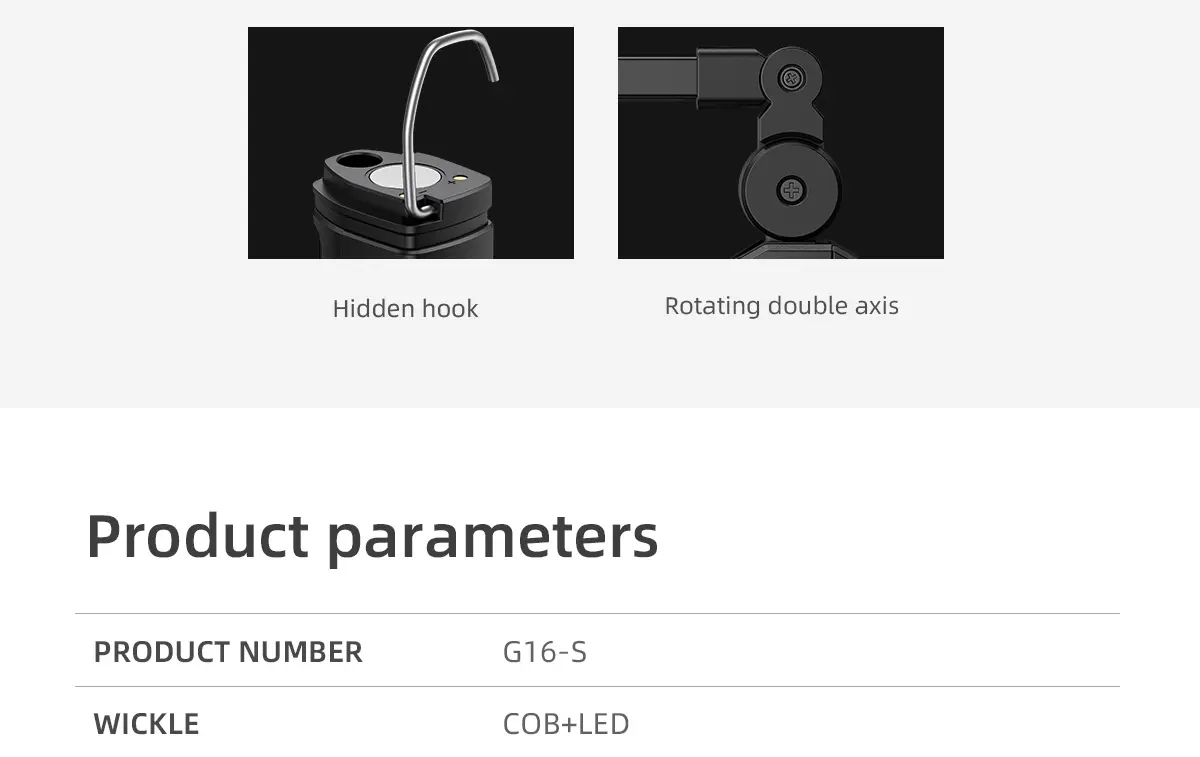

No other work light in its class matches the G16-S’s positioning versatility. The magnetic base attaches firmly to vehicle hoods, steel beams, workbenches, and machinery. The flip-out hanging hook suspends the light from overhead conduits, pipes, and tent frames. The retractable spring grip clip secures to belts, pocket edges, and webbing straps. The included charging dock base provides a stable tabletop stand while simultaneously recharging via pass-through power — deploy the light, dock it, and it charges while illuminated.

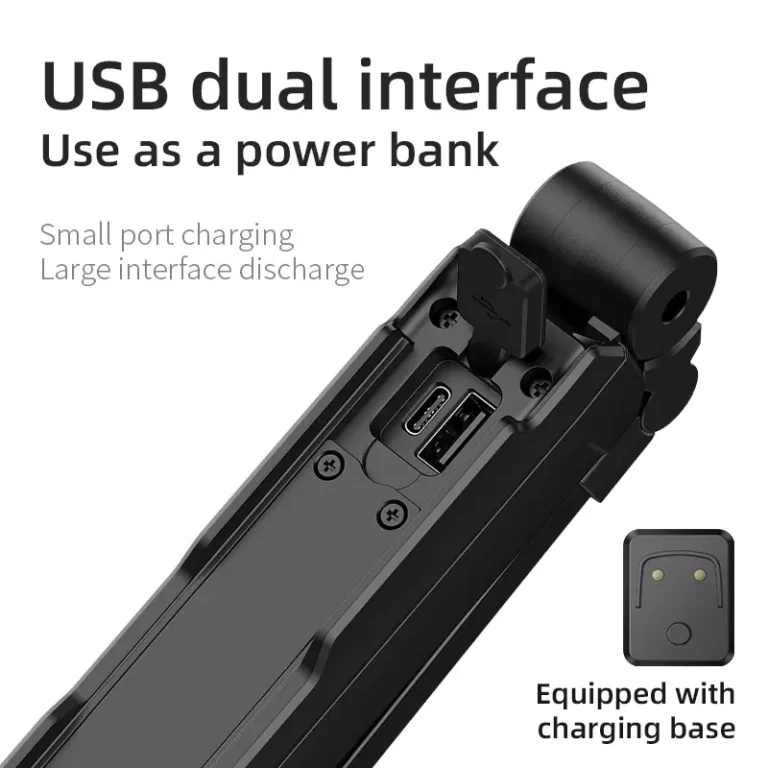

- Dual Charging Methods — Type-C Direct and Dock Base

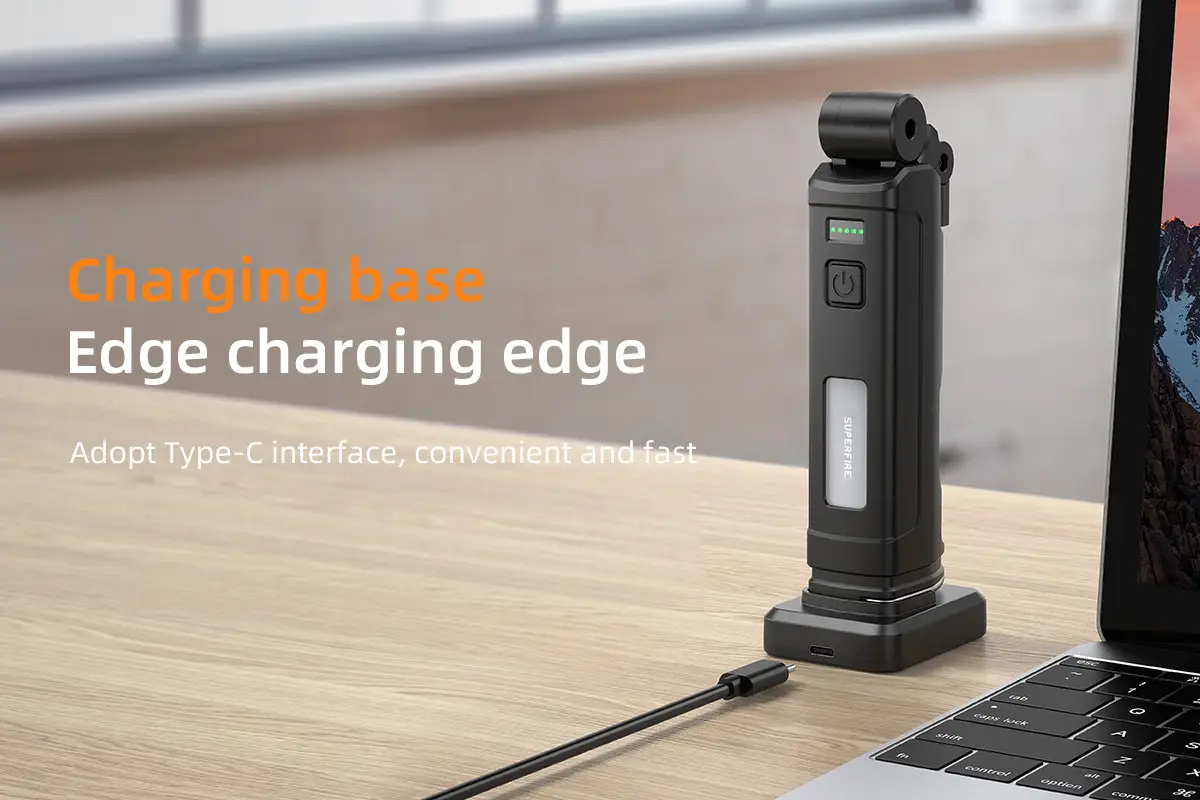

The G16-S accepts charge through two independent paths: a Type-C USB port on the light body for direct cable charging, and contact-based charging through the included dock base. Place the G16-S on the dock to charge without plugging and unplugging cables throughout the workday — pick it up to use, return it to the dock to top up. The LED charging indicator provides clear status: flashing green while charging, steady green when fully charged.

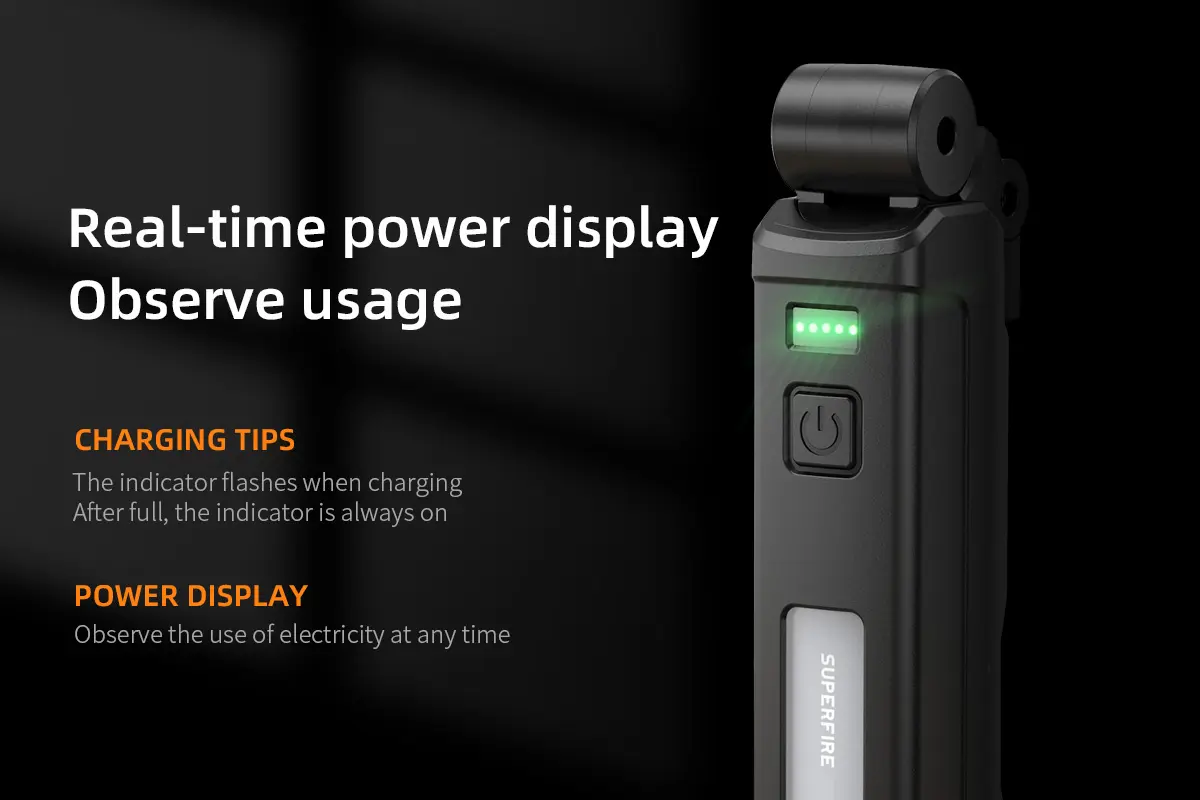

- Built-In Power Bank Output with Real-Time Battery Indicator

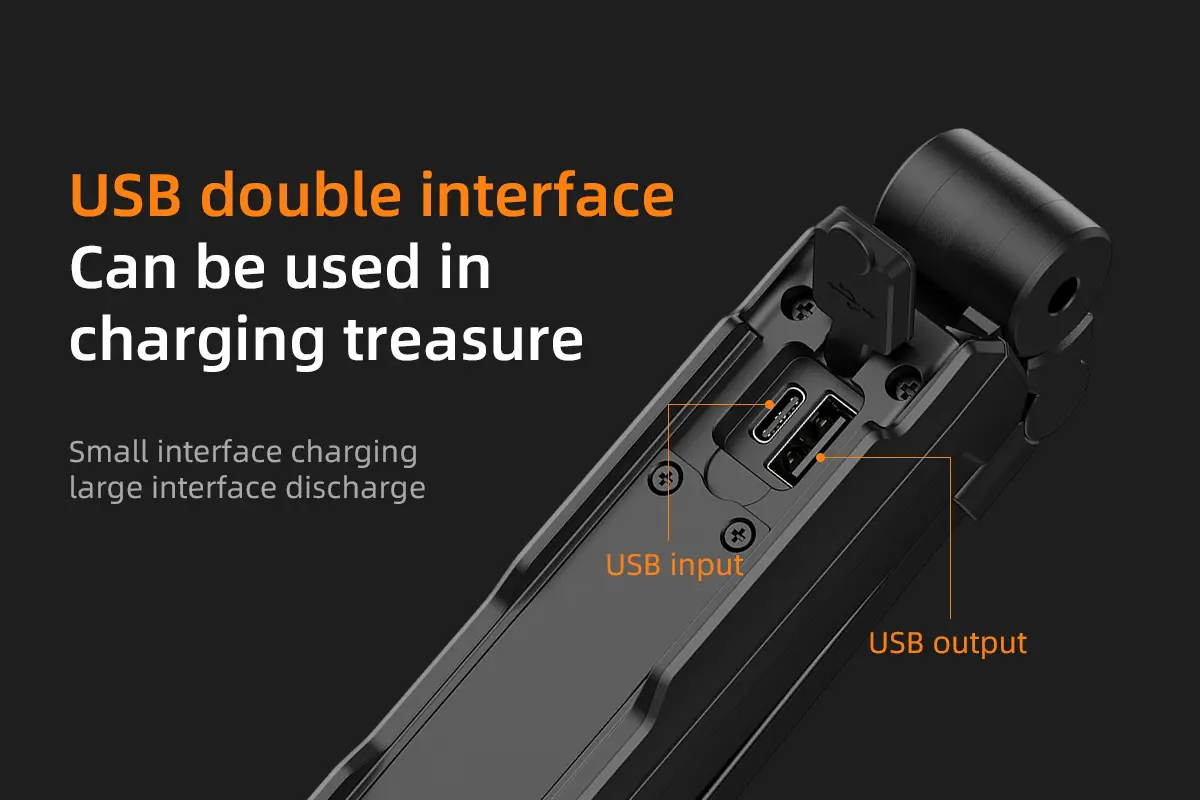

A USB output port converts the G16-S into an emergency power bank for charging smartphones, wireless earbuds, and other small USB devices — a practical advantage on job sites where power outlets are scarce. The multi-segment battery level indicator on the body provides immediate charge status visibility, and the low-voltage warning circuit alerts users when the battery approaches depletion, preventing unexpected shutdowns during critical work.

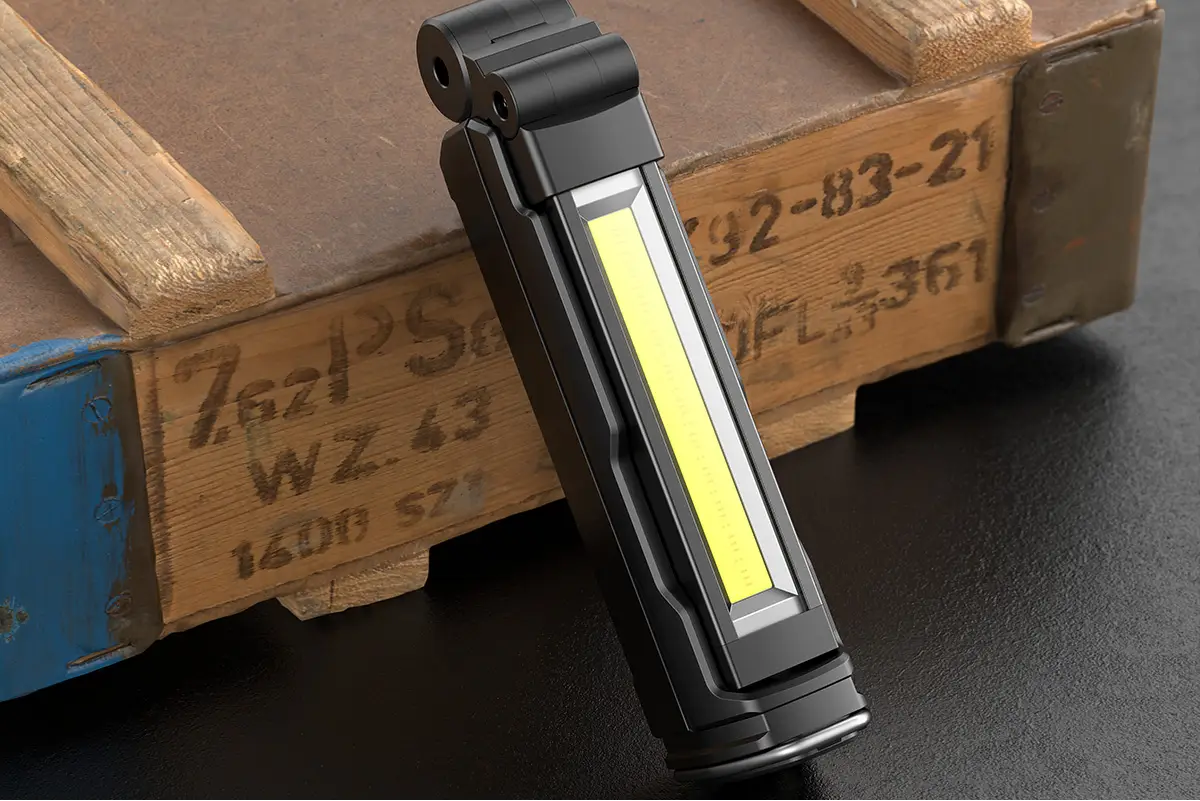

- Rugged PC + TPR Construction with IP42 Protection
The G16-S’s PC + TPR body combines impact-resistant polymer with soft-touch thermoplastic rubber grip surfaces — a materials choice that prioritizes drop survival and comfortable handling over the cold, slippery feel of all-metal alternatives. IP42 ingress protection guards against dripping water and dust ingress, making the G16-S reliable in the workshop, garage, and light outdoor conditions. The 1-meter drop resistance and comprehensive protection electronics (overcharge, over-discharge, low-voltage cutoff, power-saving mode) complete the reliability package.

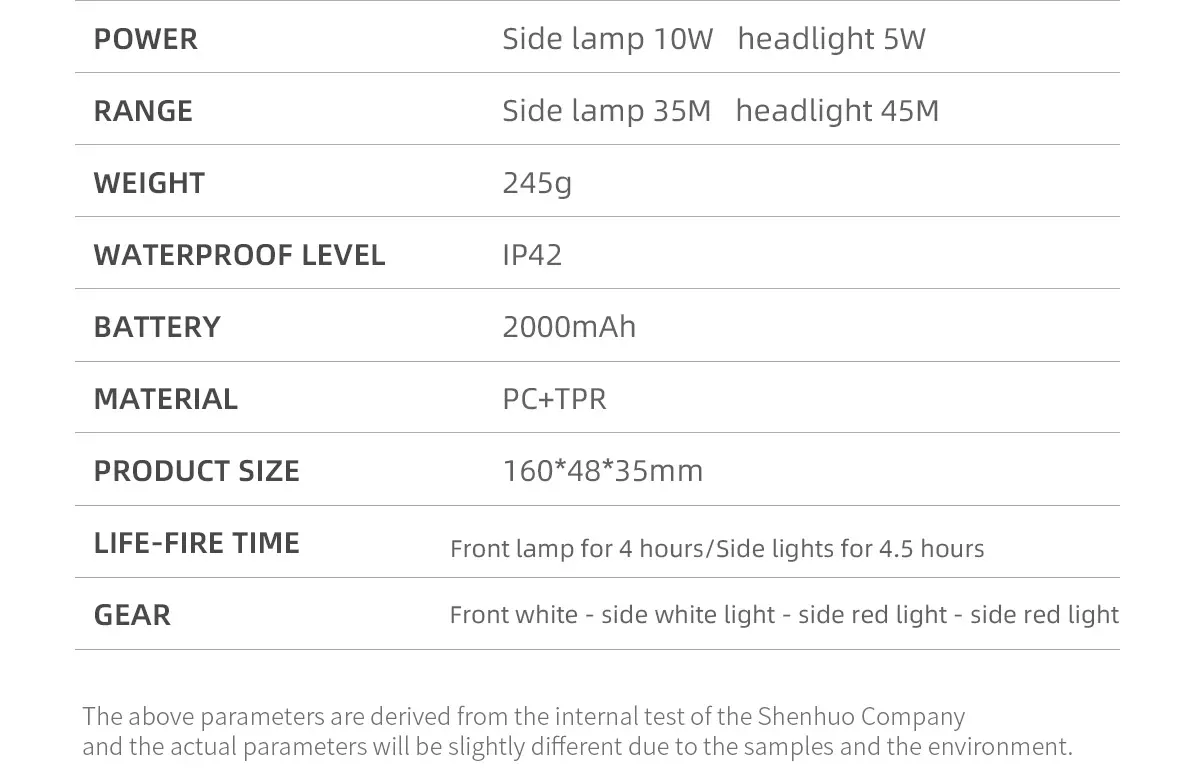

Specifications of G16-S Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | G16-S |
| Product Type | Multi-Angle COB Work Light with Charging Dock |
| LED Type | LTG31W (Front Spotlight) + COB White + COB Red |
| Rated Power | 10W + 5W (Max) |
| Lumens | Front: 300LM / COB White: 700LM |
| Beam Range | Front: 70m / COB: 35m |
| Color Temperature | Front: 6120K / COB White: 5730K / COB Red: 1000K |
| Battery | Built-in 18650 / 2000mAh (Rechargeable) |
| Runtime | Front: ~4.5H / COB: ~4.5H |
| Charging Time | Approximately 3.5H |
| Input | DC 5V/1A (Type-C) |
| Output (Power Bank) | DC 5V/1A |
| Rated Voltage | 3.7V |
| Water Resistance | IP42 |
| Drop Resistance | 1 Meter |
| Material | PC + TPR |
| Color | Black |
| Dimensions | 160 × 48 × 35mm |
| Net Weight | 245g |
| Barcode | 6977502514486 |
| Light Modes | Front White → Side COB White → Side COB Red → Side COB Red Strobe → OFF (Cycle) |
| Brightness Control | Stepless Dimming (Press-Hold in Any Mode) |
| Memory | Yes — Remembers Last Mode and Brightness Level |
| Protection Circuits | Overcharge, Over-Discharge, Low-Voltage Warning, Power-Saving Mode |
| Features | Triple Light Source, Stepless Dimming, Mode Memory, Magnetic Base, Hanging Hook, Retractable Clip, Charging Dock, Power Bank, Battery Indicator |
Package Contents:
- G16-S Multi-Angle COB Work Light ×1
- Charging Dock Base ×1
- Charging Cable ×1
- User Manual ×1
- Retail Box ×1
- Anti-Counterfeit Label ×1
Details of SUPERFIRE G16-S Tactical Flashlight
Video
FAQ
How does the mode memory function work, and how is it different from lights that always start in high mode?
When the G16-S is turned off, it saves both the current light source (front, COB white, COB red, or COB red strobe) and the brightness level set via stepless dimming. The next time the light is powered on, it returns to that exact state — no cycling through modes to reach your preferred setting. This is a significant productivity advantage for professionals who consistently use the same configuration: an automotive technician who always works in COB flood at partial brightness simply turns the light on and starts working, every time.
Can the G16-S be used while charging on the dock?
Yes, the dock base supports pass-through charging — the G16-S can be placed on the dock and operated with illumination active while simultaneously drawing charge. This effectively provides unlimited runtime when connected to a powered USB source, making the G16-S usable as a stationary task light for extended workshop sessions, bench work, or overnight security lighting. Removing the light from the dock automatically switches to battery power without interruption.

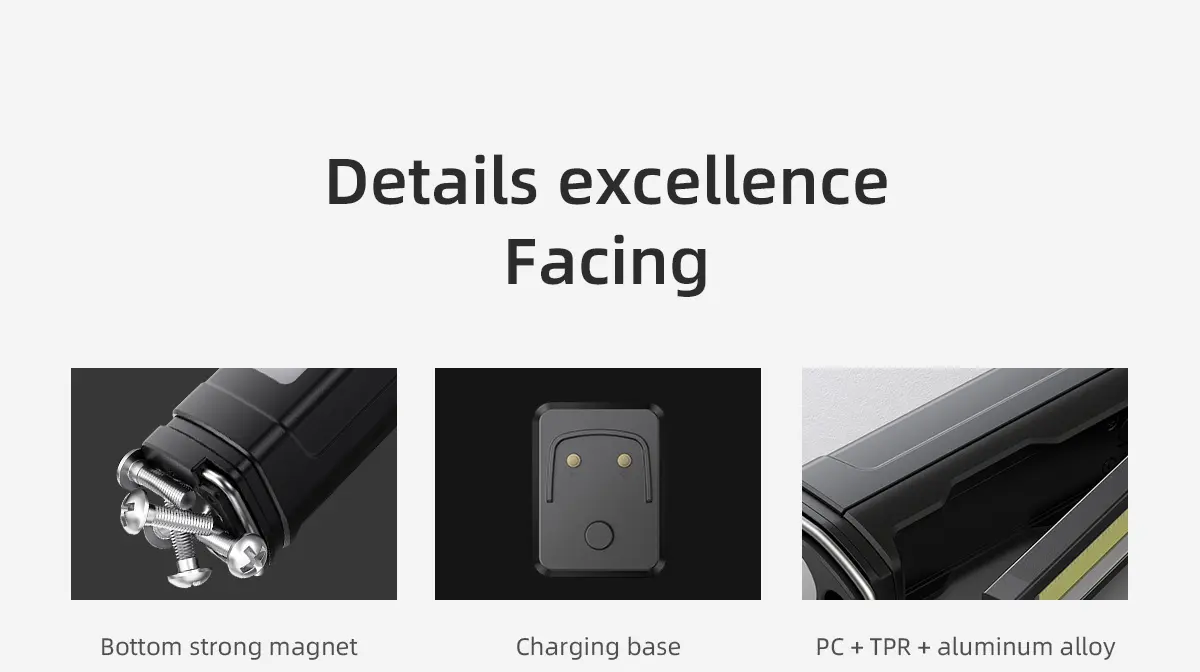

How strong is the magnetic base, and what surface types does it work on?
The magnetic base is designed to hold the G16-S securely on flat, clean ferrous metal surfaces — vehicle body panels, steel workbenches, iron beams, machinery housings, and metal shelving. The magnet’s holding force is sufficient to support the 245g light at any angle, including vertical and upside-down orientations. Performance is reduced on painted surfaces thicker than approximately 0.5mm, on curved surfaces where contact area is limited, and on non-ferrous metals (aluminum, stainless steel, brass) — for those scenarios, use the hanging hook or spring clip instead.
What is the retractable spring grip clip used for?
The spring-loaded retractable clip on the back of the G16-S serves as a multi-purpose attachment point. Extended, it grips belts, pocket edges, bag straps, and webbing up to approximately 5mm thickness — allowing the light to be worn hands-free while walking through dark work areas. Retracted, it sits flush against the body. The clip can also be used to hang the light from thin edges (desk lips, shelf edges, panel gaps) where the magnetic base and hanging hook are unsuitable, providing a third hands-free positioning option.
What is the purpose of the red COB strobe mode for a work light?
The red COB strobe serves dual safety functions. In roadside or parking-area work, the red strobe provides a visible caution signal to approaching vehicles and pedestrians — it can be placed facing traffic while the front white light illuminates the work area. In industrial environments, the red strobe marks hazard zones, equipment under maintenance, or temporary restricted areas. The steady red mode preserves night vision for close-up precision work and is useful for astronomy, wildlife observation, and military/tactical applications where white light would be inappropriate.
Customization & OEM Services
SUPERFIRE provides comprehensive OEM/ODM services for the G16-S Multi-Angle COB Work Light, tailored to tool distributors, automotive supply chains, industrial equipment suppliers, and private-label brands worldwide.
- Brand Customization
- Laser Engraving / Silkscreen: Your logo, brand name, and technical specifications applied to the PC+TPR body — positioned on the designated flat surfaces per your design requirements
- Custom Model Numbering: Assign your internal SKU or product code alongside or in place of the G16-S identifier
- Color Customization: Custom body and accent colors beyond standard black (minimum order quantities apply)
- Packaging Customization
- Box Design: Full creative control over packaging artwork, material grade (standard cardboard, rigid box, or hang-tab retail), and structural layout
- Color Customization: Custom Pantone-matched box colors aligned with your brand identity
- Insert Tray: Custom die-cut or thermoformed insert trays for secure product presentation
- Accessory Bundling: Flexible configuration — customize dock design, cable specification, or add branded accessory items
- Manual & Documentation: Multi-language user manuals with your company branding, warranty terms, and contact information
- Product Customization
- LED Configuration: Alternative LED color temperatures or specifications for specific task requirements
- Mode Programming: Custom light mode sequences, dimming behavior, and memory settings
- Body Material: Custom TPR overmold colors or texture patterns
- Dock Design: Custom dock base configurations, connector types, or multi-unit charging stations
- Accessory Ecosystem: Custom mounting brackets, vehicle-specific adapters, or tool-belt holsters
- Quality & Compliance
- CE, FCC, RoHS certification documentation provided for all custom and standard units
- Full compliance documentation package available for customs clearance and retail distribution
- Batch-level consistency validated through incoming QC, in-process inspection, and pre-shipment functional testing
- Third-party lab testing available upon request (SGS, TÜV, Intertek)
- Order & Logistics
- Minimum Order Quantities: Flexible and discussed on a per-order basis depending on product configuration and customization scope
- Sample Lead Time: Approximately 1–2 weeks for standard samples; custom pre-production samples confirmed upon order
- Production Lead Time: Discussed and confirmed upon sample approval — timelines scaled to order volume and customization complexity
- Shipping: FOB Shenzhen / EXW available; customer-nominated forwarders accepted
- Payment Terms: Discussed on order confirmation; flexible terms available for established long-term partners
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
