Core Overview
Currency and document authentication (UV mode)
Industrial inspection and quality control
Security patrol and identification verification
Presentations, lectures, and classroom instruction (laser)
Outdoor navigation and equipment inspection
Key Product Advantages

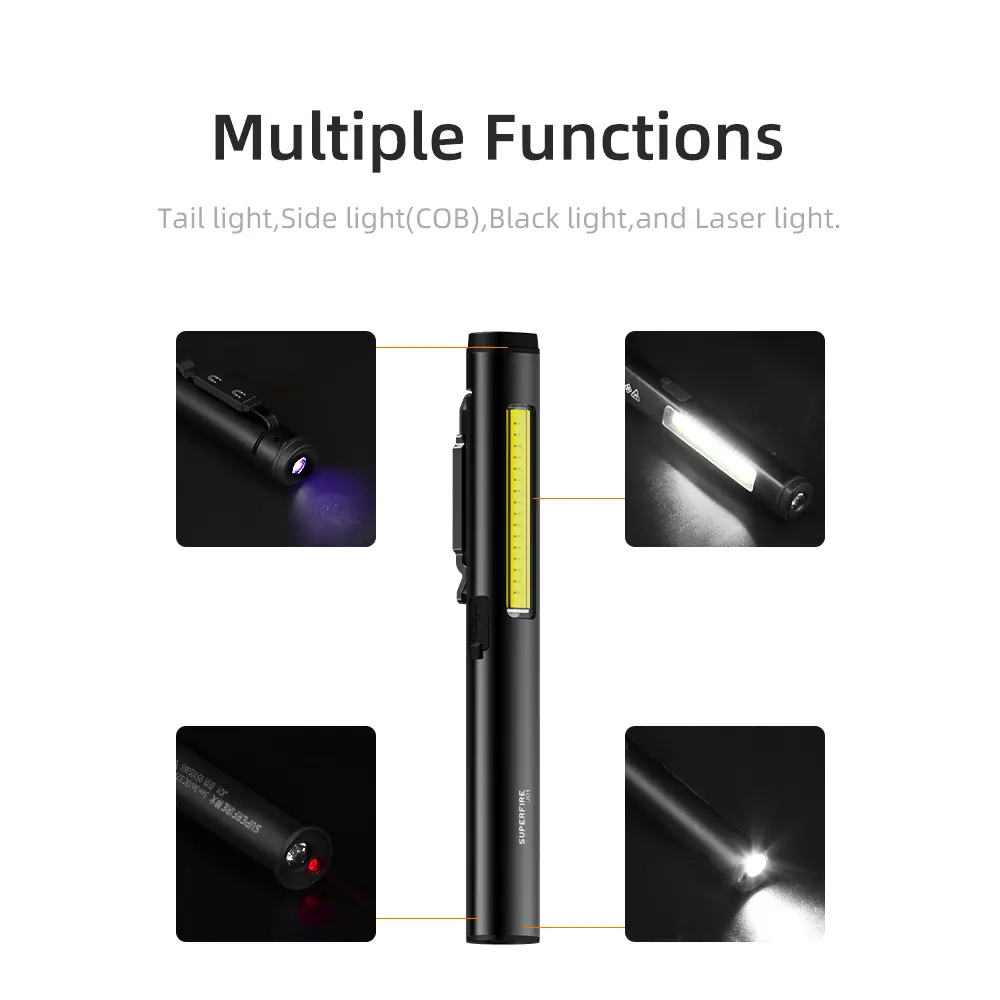

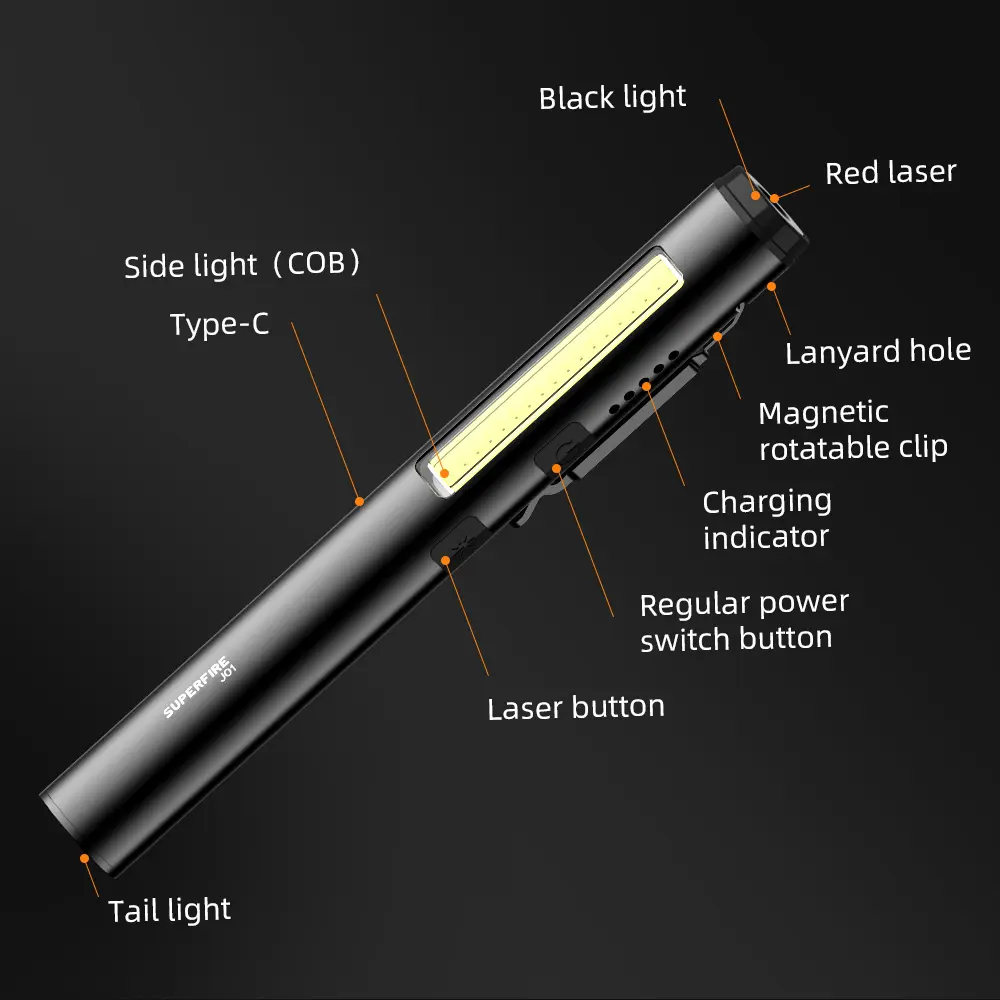

- Four Light Sources in One Compact Tool
No other flashlight in its class integrates four independent light sources: a white LED spotlight for long-range illumination (59m/160LM), a high-output COB side panel for close-range flood lighting (28m/350LM), a 380nm UV LED for fluorescence detection and authentication, and a 700nm red laser with 1028-meter range for long-distance pointing and signaling. Each mode is instantly accessible without swapping heads or attachments.

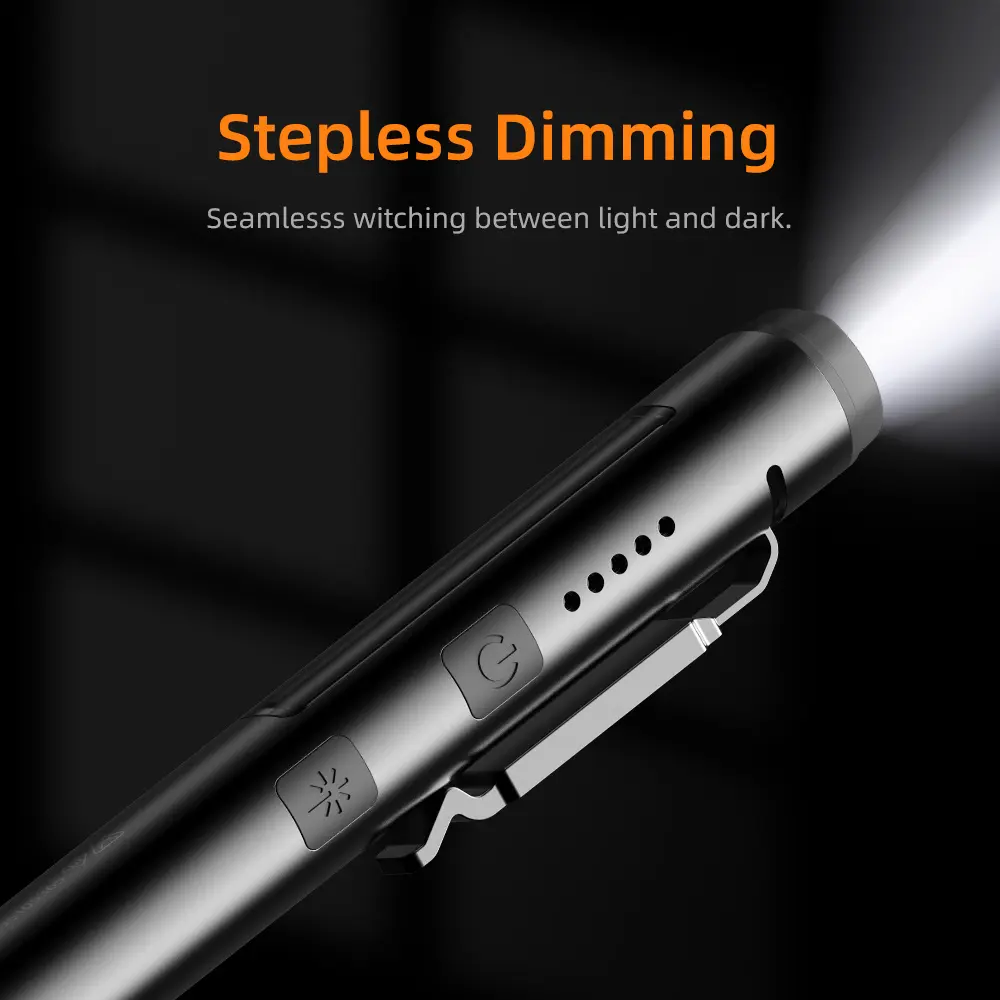

- Stepless Dimming on All Illumination Modes
Unlike fixed-brightness competitors, the J01 supports stepless dimming on every illumination mode — white spotlight, COB side light, and UV. Press and hold the mode button while in any active mode to smoothly ramp brightness from minimum to maximum output, releasing at the desired level. This granular control allows precise adjustment for delicate inspection tasks, preserving night vision, or maximizing battery efficiency.

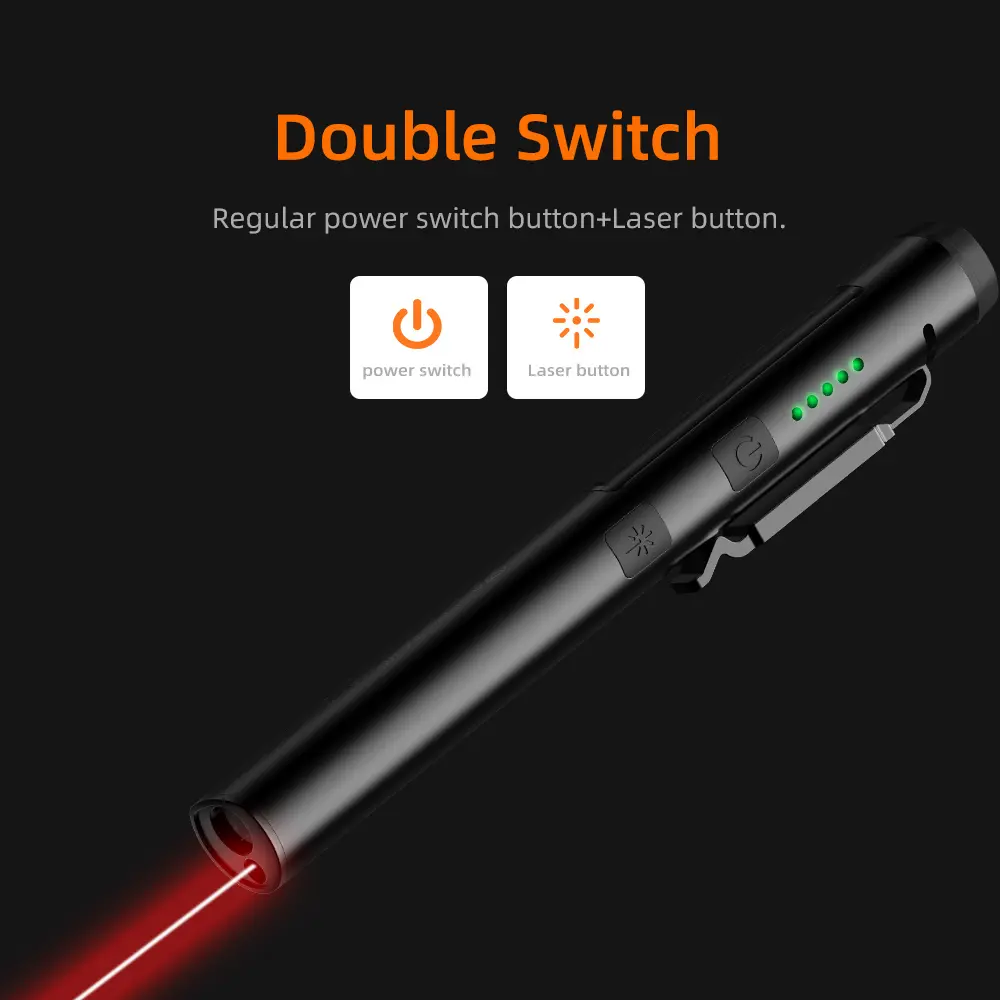

- Momentary Red Laser with Kilometer-Class Range
The dedicated laser button operates on a momentary press-hold basis — press for instant activation, release to deactivate. The 700nm red laser achieves an effective pointing range of 1028 meters, making it suitable for outdoor navigation reference, construction site alignment, search coordination, and long-distance signaling where voice communication is impractical. The instantaneous on/off control prevents accidental operation and conserves battery power.
- 80g Pocketable Aluminum Body with 1-Meter Drop Rating
Weighing just 80 grams and measuring 20 × 165 × 24mm, the J01 is small enough to slip into a shirt pocket, tool belt, or EDC pouch without adding noticeable bulk. The aluminum alloy body is anodized in matte black and tested for 1-meter drop resistance, ensuring it survives daily professional use in industrial, security, and field environments.

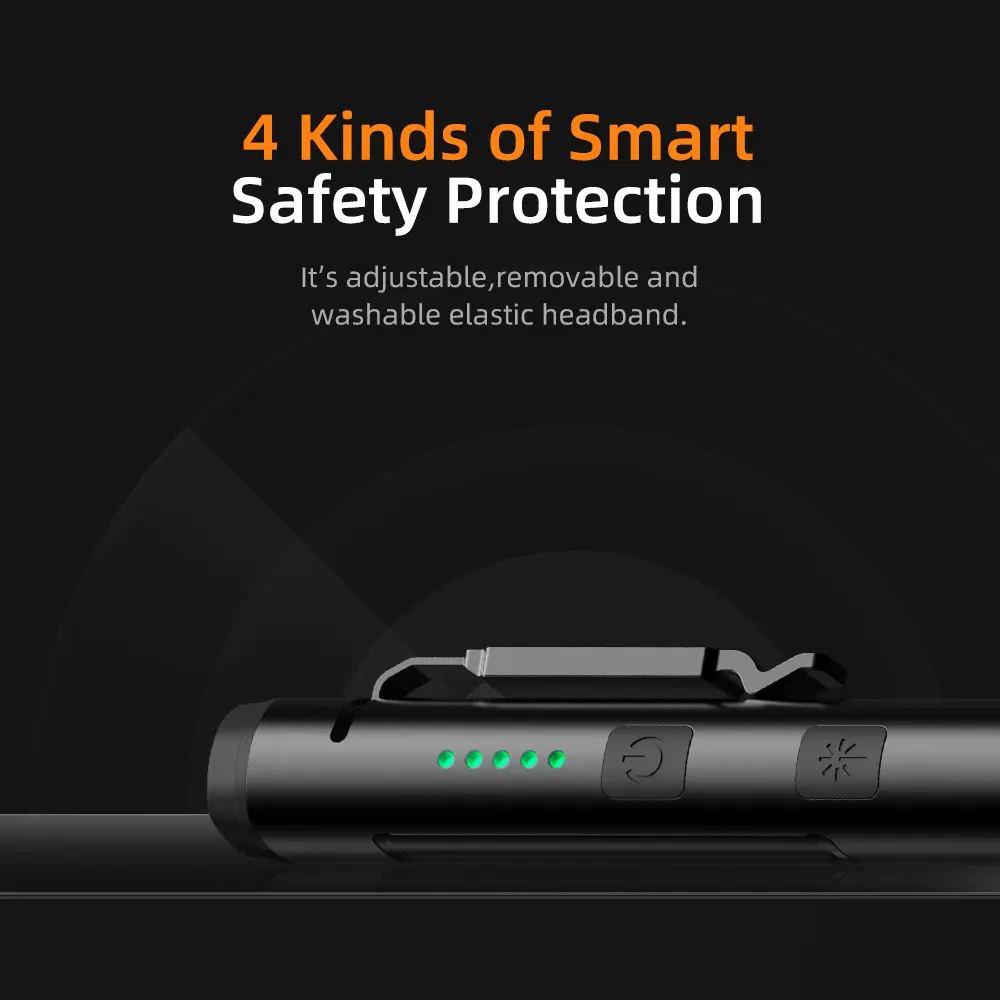

- Type-C Charging with Comprehensive Safety Electronics

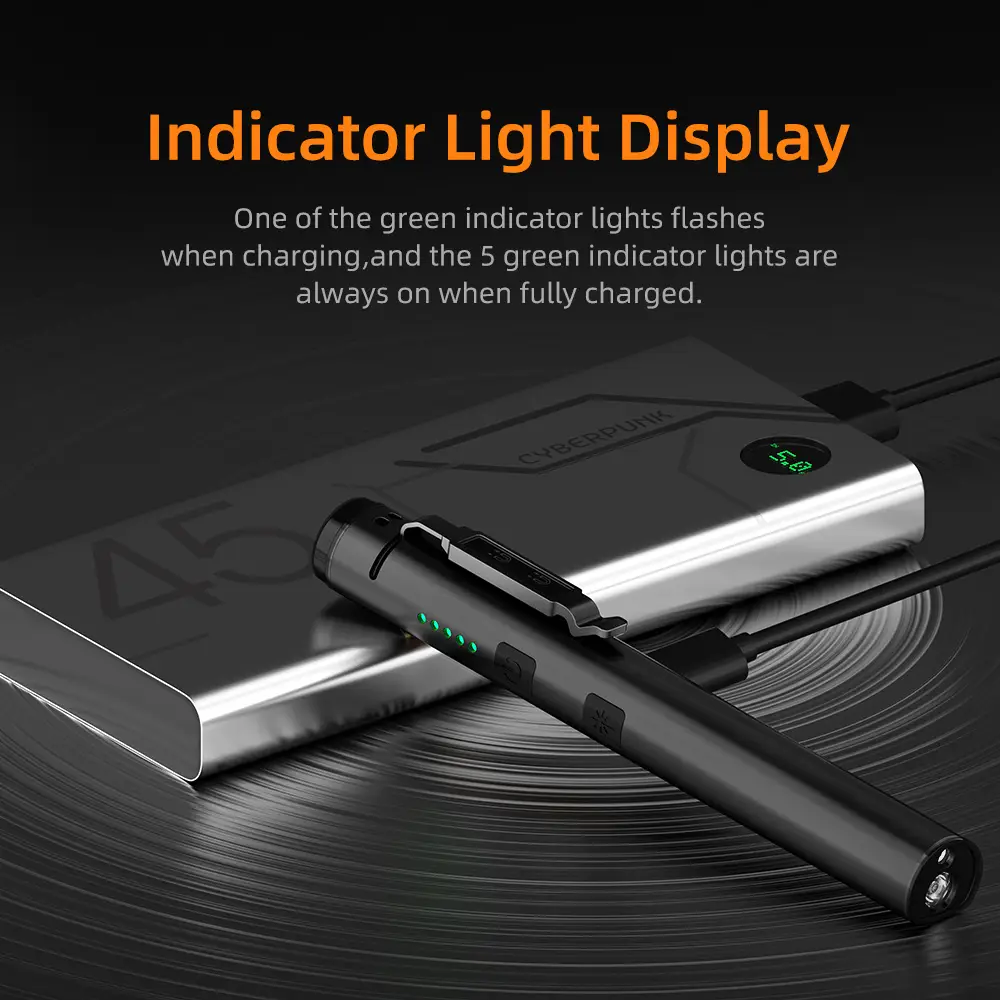

A standard Type-C USB port provides convenient recharging from any modern charger, power bank, or computer — full charge achieved in approximately 4 hours. Built-in overcharge and over-discharge protection circuits safeguard the internal 14500/800mAh lithium battery through repeated charge cycles. A multi-segment LED charging indicator provides clear status: flashing green during charging, steady green when full.

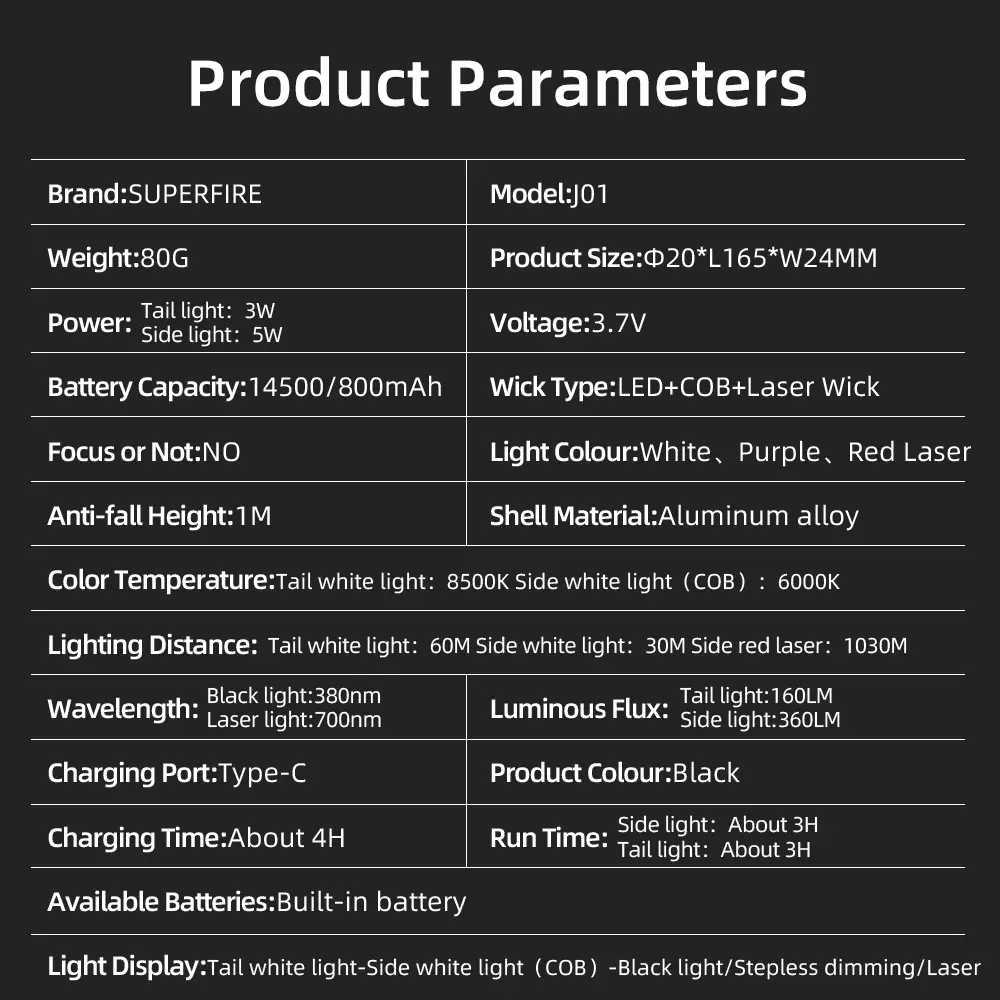

Specifications of J01 Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | J01 |
| Product Type | Multi-Function Laser Flashlight |
| LED Type | White LED (Tail), COB (Side), UV 380nm (Head), Red Laser 700nm |
| Rated Power | Tail Light: 3W / Side COB: 5W |
| Lumens | Tail Light: 160LM / Side COB: 350LM |
| Beam Range | Tail White: 59m / Side COB: 28m / Red Laser: 1028m |
| Color Temperature | Tail White: 8528K / Side COB White: 5984K |
| UV Wavelength | 380nm |
| Laser Wavelength | 700nm (Red) |
| Battery | Built-in 14500 / 800mAh (Rechargeable) |
| Runtime | Side COB: ~3H / Tail Light: ~2.8H |
| Charging Time | Approximately 4H |
| Input | DC 5V/1A (Type-C) |
| Rated Voltage | 3.7V |
| Drop Resistance | 1 Meter |
| Material | Aluminum Alloy |
| Color | Black |
| Dimensions | 20 × 165 × 24mm |
| Net Weight | 80g |
| Barcode | 6977502516145 |
| Light Modes | Tail White → Side COB White → Head UV → OFF (Cycle) / Red Laser: Momentary |
| Features | 4-in-1 Light Sources, Stepless Dimming, 1028m Laser Range, Type-C Charging, Overcharge/Over-Discharge Protection |
Mode Operation:
- Press mode switch → cycles: Tail White → Side COB → Head UV → OFF
- Press and hold mode switch in any mode → stepless dimming
- Press laser button → momentary red laser (release to deactivate)

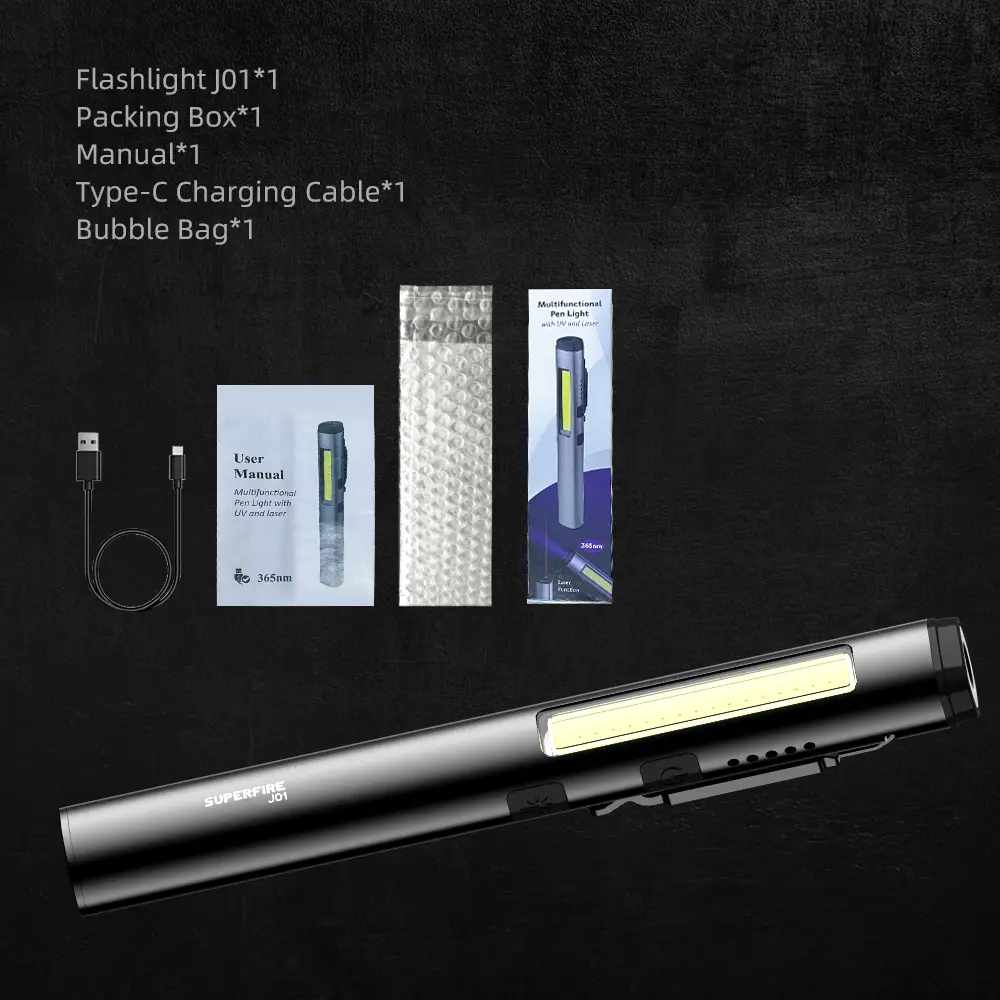

Package Contents:
- J01 Multi-Function Laser Flashlight ×1
- Type-C Charging Cable ×1
- Laser Warning Sticker ×1
- User Manual ×1
- Bubble Protective Bag ×1
- Retail Box ×1
Details of SUPERFIRE J01 Tactical Flashlight
Video
FAQ
What practical applications does the 380nm UV light serve?
The 380nm ultraviolet LED is useful for currency and document authentication (detecting UV-reactive security features), hotel and rental property cleanliness inspection (revealing biological residues invisible under white light), industrial crack and leak detection when used with fluorescent dye penetrants, mineral and gemstone identification, and forensic evidence examination. The UV mode operates at a wavelength safe for intermittent inspection use, though direct eye exposure should always be avoided.
How does the stepless dimming work across different light modes?
Stepless dimming is available on the tail white LED, side COB, and head UV modes. While in any active illumination mode, press and hold the mode button — output will ramp smoothly from minimum to maximum, then begin decreasing (or vice versa, depending on the current level). Release the button at the desired brightness. The laser mode does not support dimming. To dim again, release the button and press-hold a second time to initiate a new ramping cycle.
Can the laser and an illumination mode be used simultaneously?
The J01’s control logic is designed for safe, single-mode operation — the laser button activates the laser momentarily only when no other mode is engaged. If the light is currently in white LED, COB, or UV mode, the mode button must be used to cycle to OFF before the laser becomes available. This design prevents accidental laser activation while the user is in close-range inspection modes where the laser would risk eye exposure.
What is the effective range difference between the tail spotlight and the red laser?
The tail white spotlight has a usable illumination range of 59 meters — ideal for identifying objects, navigating paths, and general-purpose lighting at short to medium distances. The red laser, by contrast, has a 1028-meter range for point visibility only — the laser dot is visible on distant surfaces for signaling and directional reference, but it does not illuminate the surrounding area. The two modes serve fundamentally different purposes: the spotlight illuminates what you need to see, the laser points to what others need to see.
Is the J01 waterproof, and can it be used outdoors in wet conditions?
Customization & OEM Services
SUPERFIRE provides comprehensive OEM/ODM services for the J01 Multi-Function Laser Flashlight, tailored to industrial tool distributors, inspection equipment suppliers, and private-label brands worldwide.
- Brand Customization
- Laser Engraving: Your logo, brand name, and specifications etched onto the aluminum body — positioned on the flat surface or clip area per your design requirements
- Silkscreen Printing: Available for multi-color logo applications
- Custom Model Numbering: Assign your internal SKU or product code alongside or in place of the J01 identifier
- Packaging Customization
- Box Design: Full creative control over packaging artwork, material grade, and structural design — standard cardboard, rigid presentation box, or hang-tab retail
- Color Customization: Custom Pantone-matched box colors aligned with your brand identity
- Insert Tray: Custom die-cut or thermoformed insert trays for secure presentation
- Accessory Bundling: Flexible configuration — customize cable length, add branded lanyards, or bundle with inspection accessories
- Manual & Documentation: Multi-language user manuals with your company branding, safety instructions, and warranty terms
- Product Customization
- Laser Wavelength: Alternative laser colors (green) or power specifications for specific professional applications
- UV Wavelength: Custom UV LED wavelength for specialized inspection requirements
- Mode Programming: Custom mode sequences, dimming behavior, and button logic
- Body Finish: Custom anodizing colors beyond standard black (minimum order quantities apply)
- Accessory Ecosystem: Custom holsters, belt clips, or mounting accessories
- Quality & Compliance
- CE, FCC, RoHS certification documentation provided for all custom and standard units
- Laser product classification labeling and compliance documentation included
- Full compliance documentation package available for customs clearance and retail distribution
- Batch-level consistency validated through incoming QC, in-process inspection, and pre-shipment sampling
- Third-party lab testing available upon request (SGS, TÜV, Intertek)
- Order & Logistics
- Minimum Order Quantities: Flexible and discussed on a per-order basis depending on product configuration and customization scope
- Sample Lead Time: Approximately 1–2 weeks for standard samples; custom pre-production samples confirmed upon order
- Production Lead Time: Discussed and confirmed upon sample approval — timelines scaled to order volume and customization complexity
- Shipping: FOB Shenzhen / EXW available; customer-nominated forwarders accepted
- Payment Terms: Discussed on order confirmation; flexible terms available for established long-term partners
- Production Lead Time: Discussed and confirmed upon sample approval — timelines scaled to order volume and customization complexity
- Shipping: FOB Shenzhen / EXW available; ocean freight consolidation and air freight expedited options
- Payment Terms: Discussed on order confirmation; flexible terms available for established long-term partners
- After-Sales Support: Manufacturer warranty against defects in materials and workmanship; spare parts (mounts, USB covers, batteries) available for the product’s supported lifecycle
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
