Core Overview
Key Product Advantages

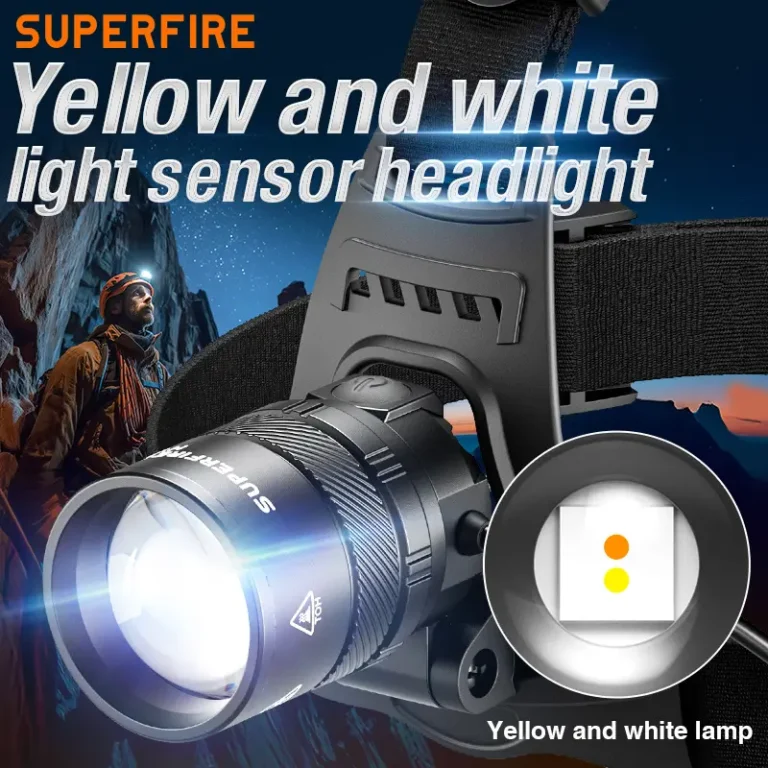

- Dual Color System: White for Clarity, Yellow for Penetration
The HY06’s defining feature is its switchable dual-color LED system. Cool white (9800K / 520LM) provides maximum brightness, sharp contrast, and true color rendering for detail work in clear conditions. Warm yellow (3200K / 500LM) cuts through fog, dust, rain, and smoke where white light creates debilitating glare and backscatter. Users simply cycle between white and yellow channels based on environmental conditions, effectively carrying two specialized headlamps in one unit.
- Six Distinct Operating Modes Across Both Color Channels
The comprehensive mode set covers every operational scenario: White High (520LM) for maximum brightness, White Low for extended runtime, White Strobe for tactical attention or self-defense, White SOS for emergency distress signaling, Yellow High (500LM) for adverse weather penetration, and Yellow Low for energy-efficient yellow illumination. No other headlamp in its class offers this breadth of color and intensity control.

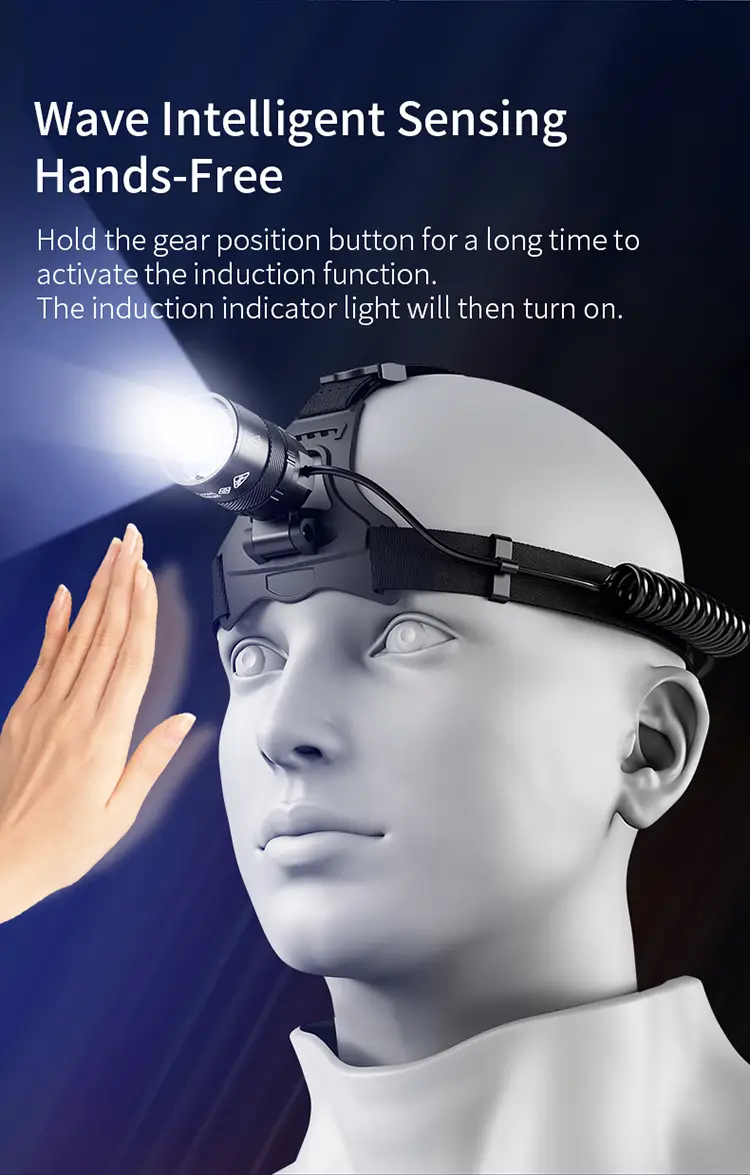

- Integrated Gesture Sensor with Quick Activation
A 2-second long press on the power button from any operating mode activates the gesture sensor, which then responds to hand-wave motion for ON/OFF control. The sensor indicator light illuminates to confirm activation. Users can continue cycling modes normally while the sensor is active. This hands-free control is invaluable for gloved work, hazardous material handling, and situations where the headlamp must not be disturbed once positioned.

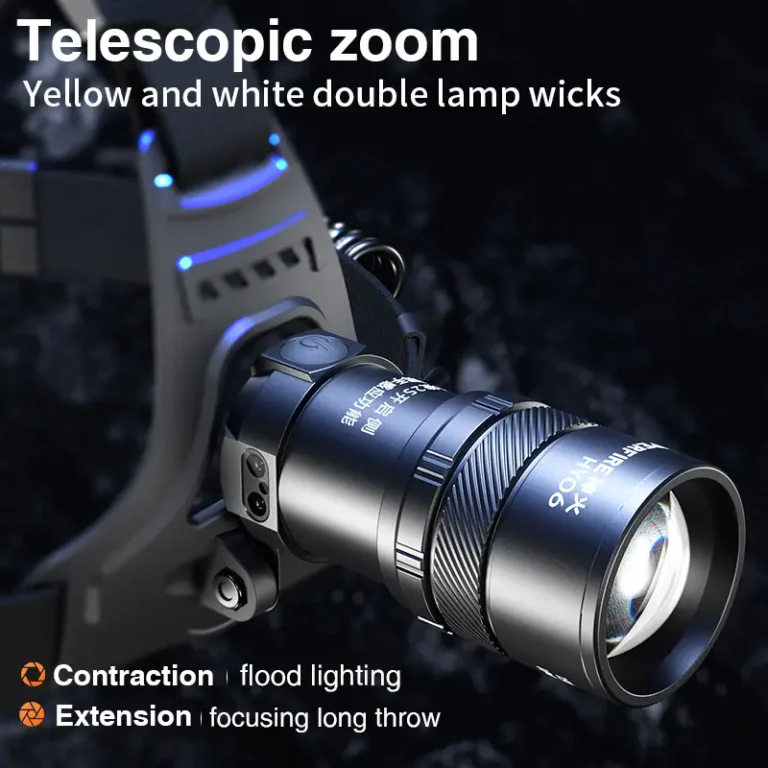

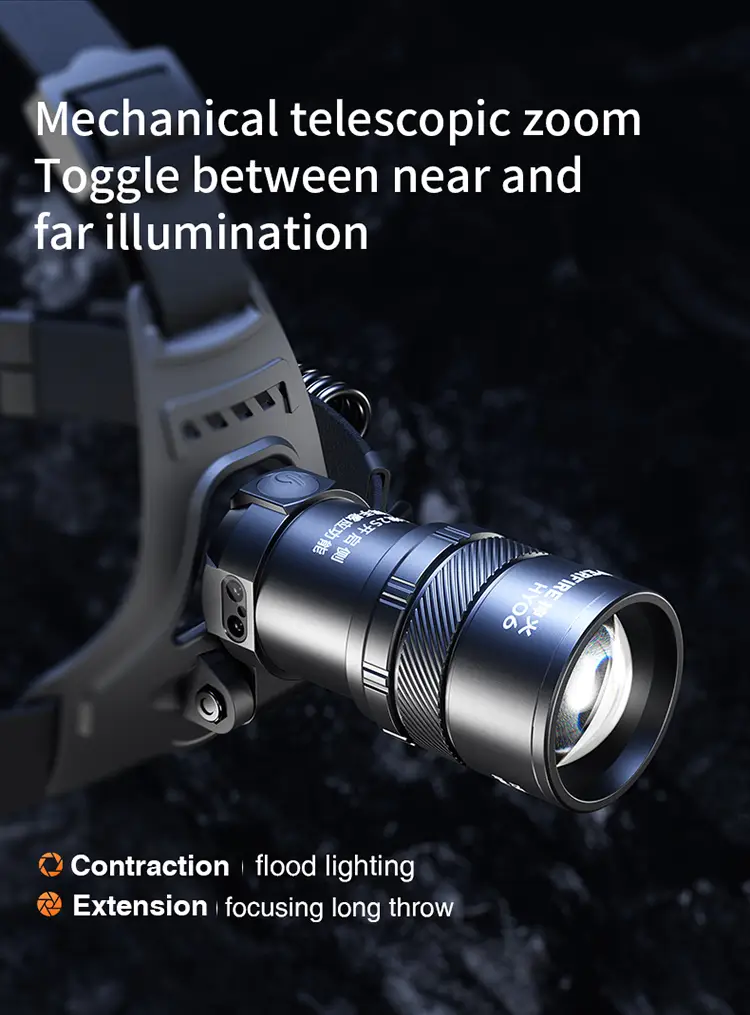

- Telescopic Zoom Focus with Mechanical Adjustment
The telescopic zoom mechanism provides smooth, continuous beam profile adjustment from a tight spot for maximum 400-meter throw distance to a wide flood for area illumination. The stretch-and-retract design is durable, intuitive, and operates independently of the electronic mode system, ensuring reliable beam control in any field condition.
- Comprehensive Safety Protection Suite

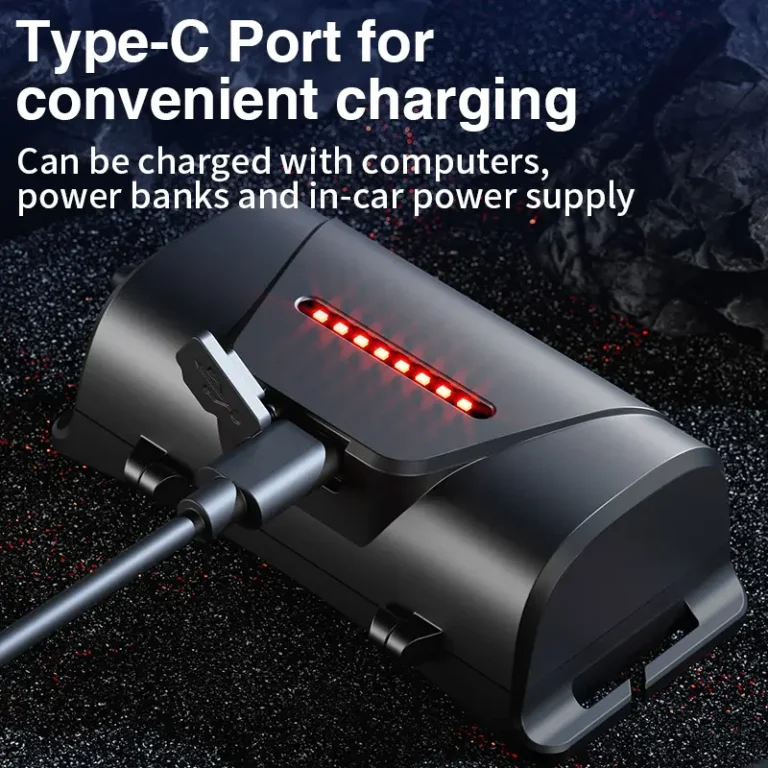

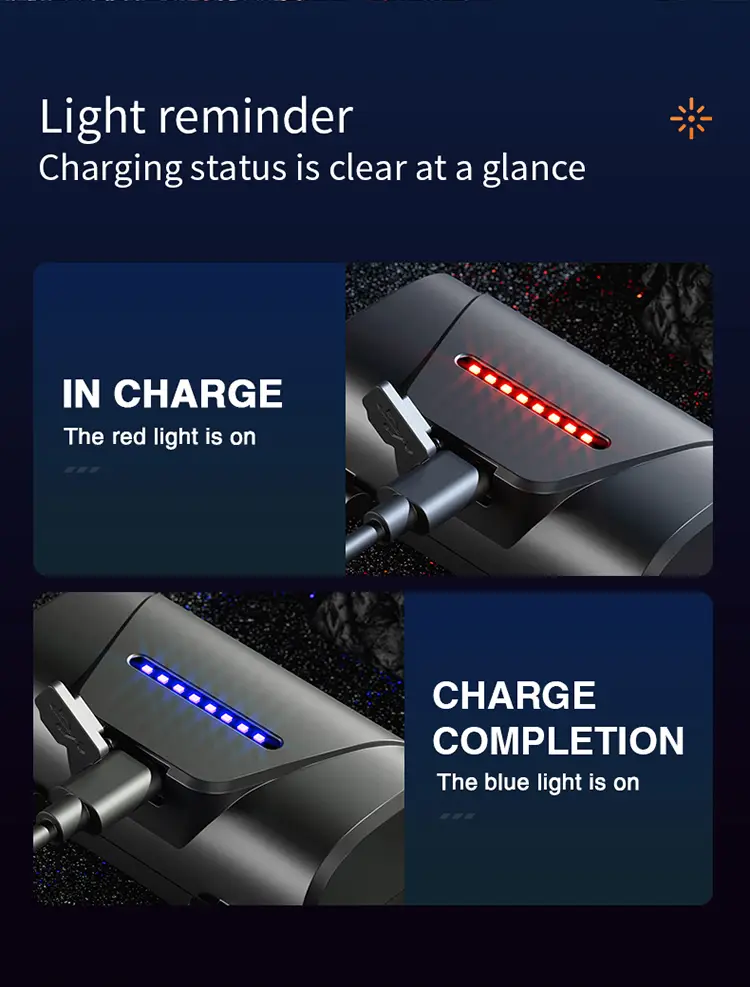

The HY06 incorporates overcharge protection, over-discharge protection, reverse polarity protection, low voltage cutoff, and a power-saving program. The charging circuit features a red/blue indicator (red while charging, solid blue when full). These protections safeguard both the user and the investment in quality 18650 cells, extending overall product lifespan.

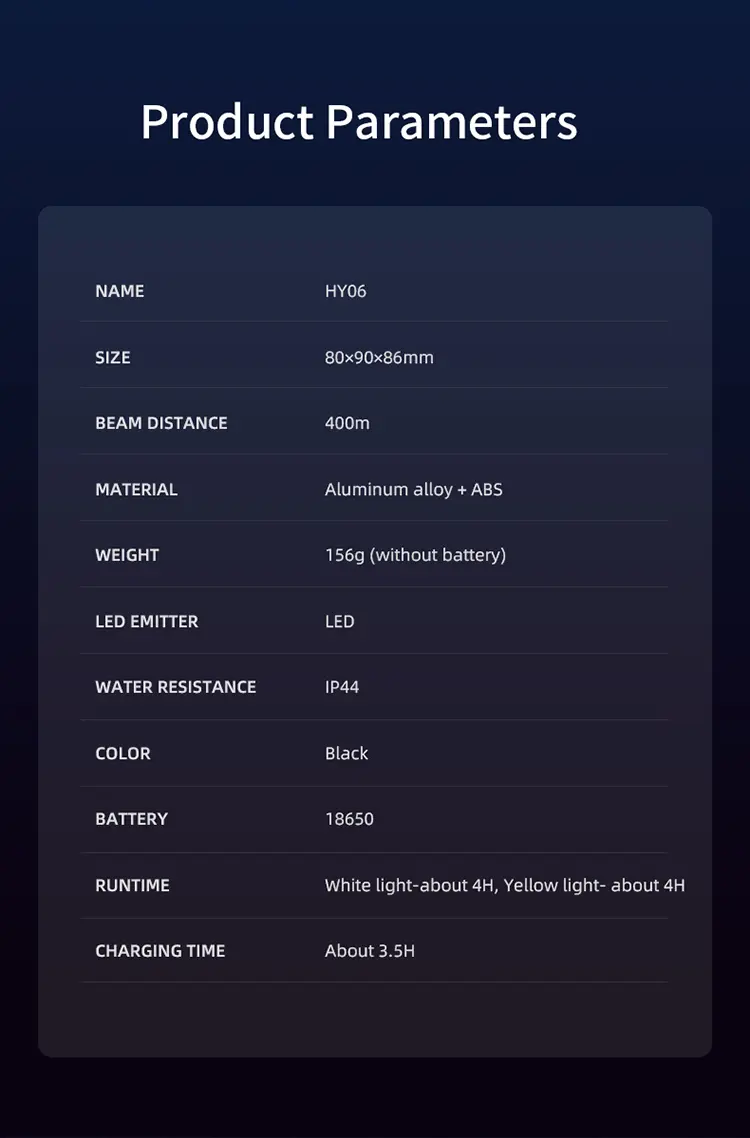

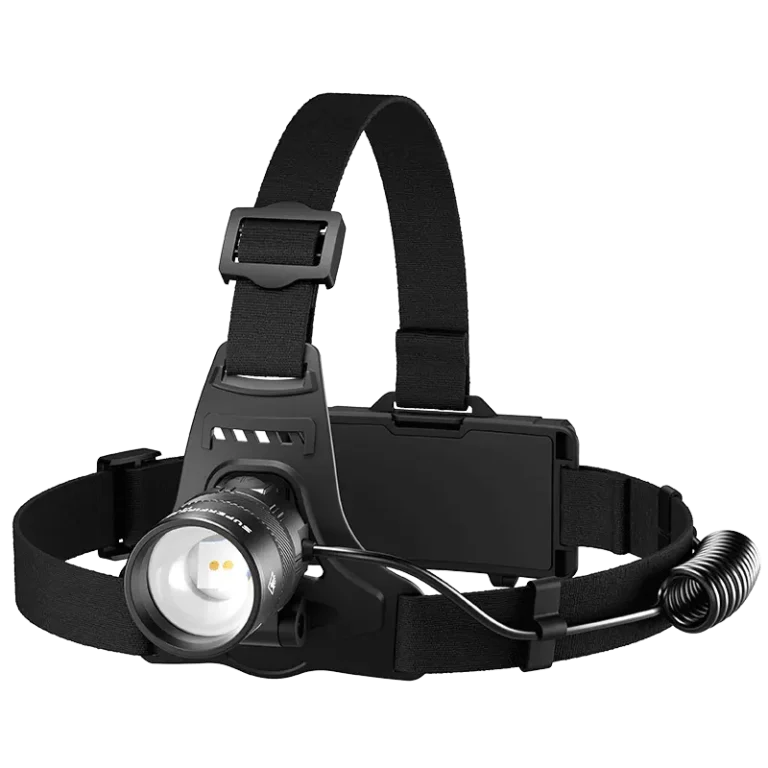

Specifications of HY06 Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | HY06 |
| Product Type | Dual Color Sensor Zoom Headlamp |
| LED Configuration | Dual-Channel: White + Yellow Long-Range LED |

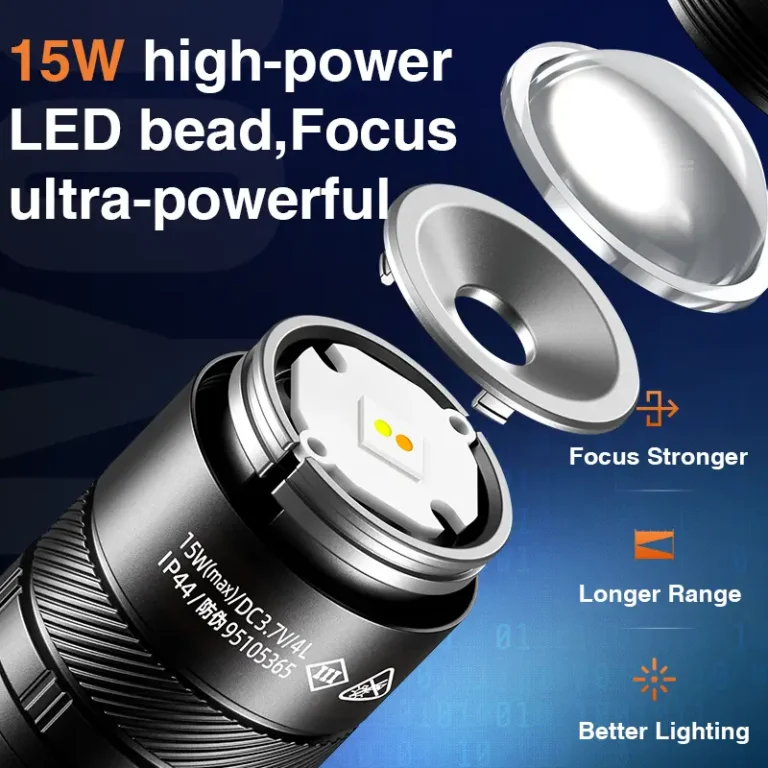

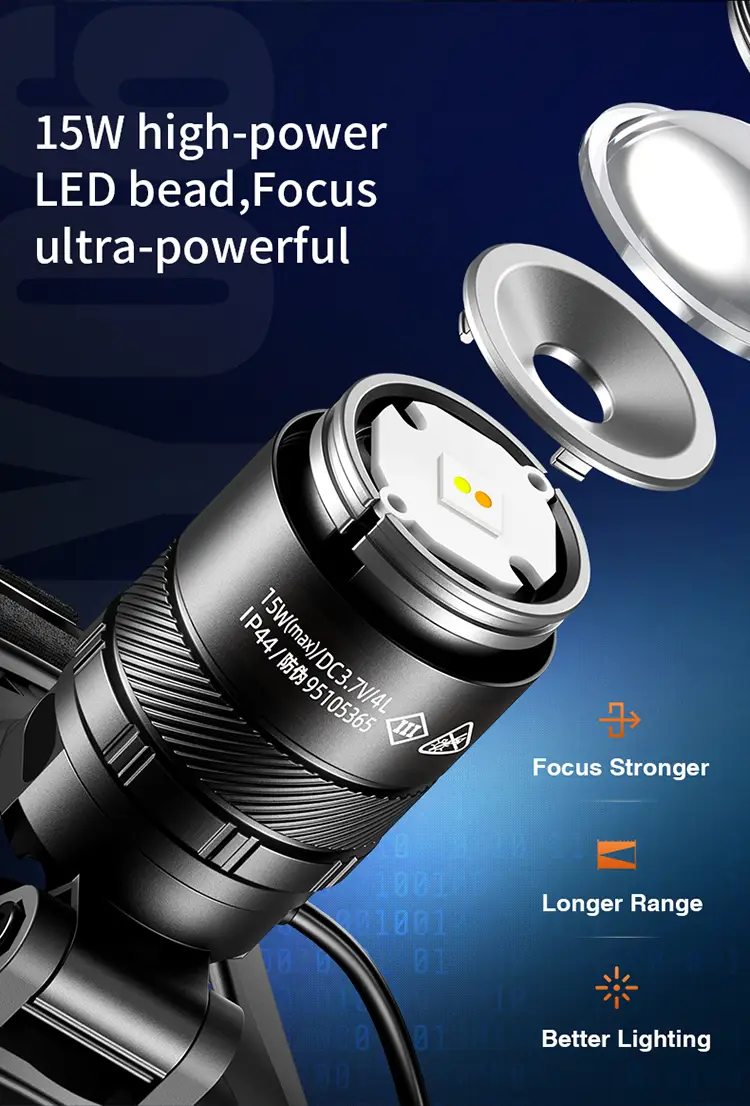

| Rated Power | 15W (max) |
| Luminous Flux | White High: 520LM / Yellow High: 500LM |
| Beam Distance | 400m |
| Color Temperature | White: 9800K / Yellow: 3200K |
| Battery | 2 x 18650 / 1200mAh (2400mAh Total, Replaceable) |
| Rated Voltage | DC 3.7V |
| Runtime | White: Approx. 4H / Yellow: Approx. 4H |
| Charging Time | Approx. 3.5H |

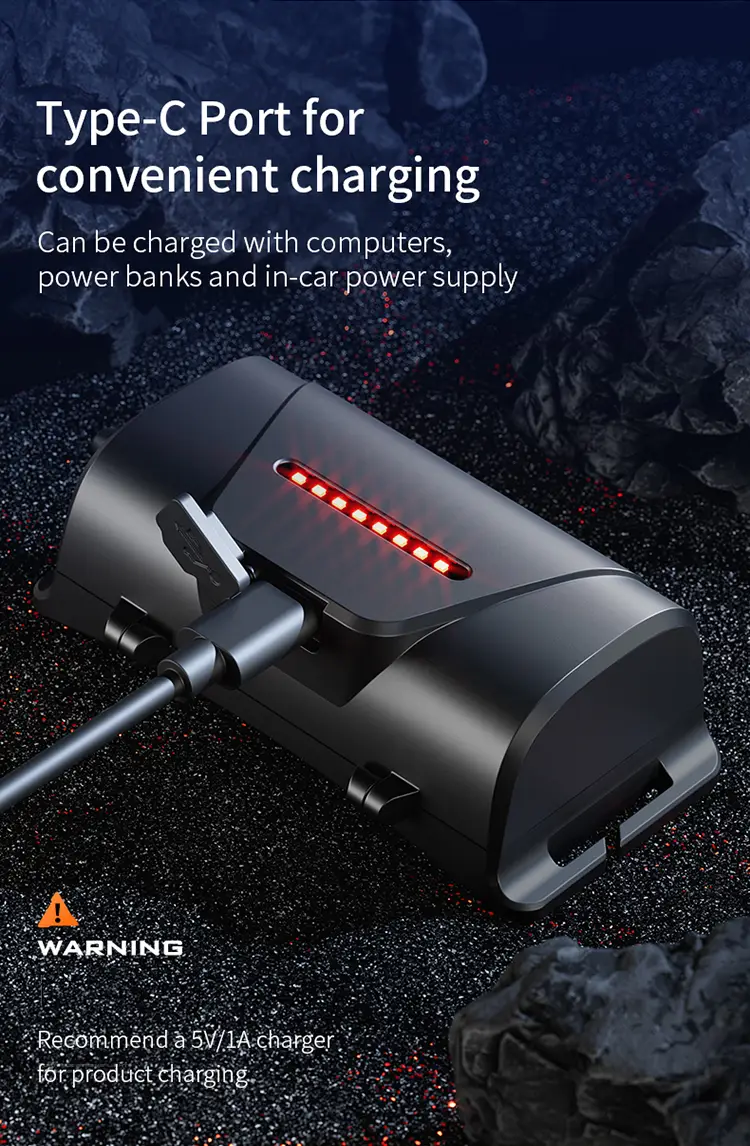

| Charging Port | Type-C |
| Charging Input | 5V / 1A |
| Waterproof Rating | IP44 |
| Drop Resistance | 1m |
| Unit Weight | 156g |
| Dimensions | 80 x 90 x 86mm |
| Body Material | Aluminum Alloy + ABS |
| Color | Black |
| Focusable | Yes (Telescopic Zoom) |
| Operating Modes | White High / White Low / White Strobe / White SOS / Yellow High / Yellow Low / Off |

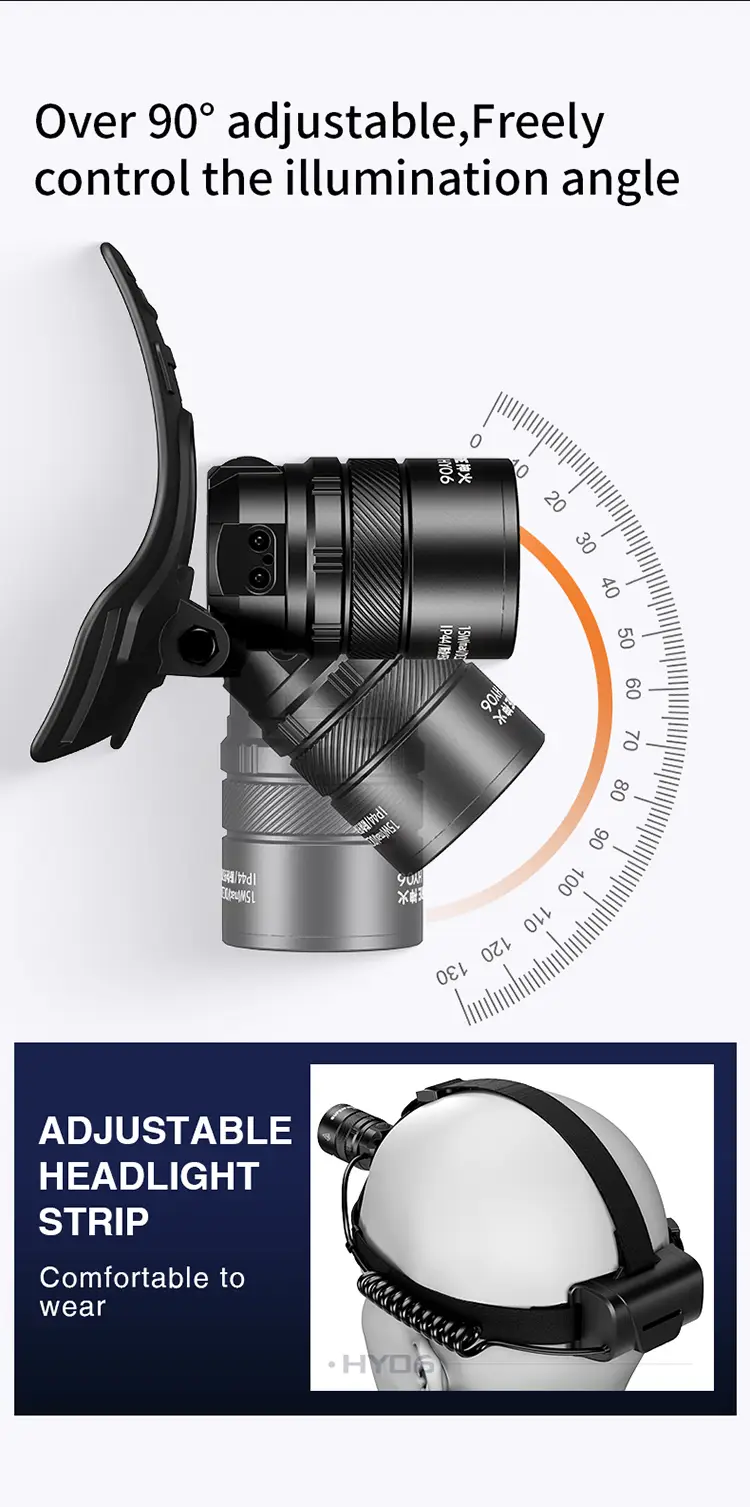

| Special Functions | Gesture Sensor, Dual Color LED, Telescopic Zoom, 90-Degree Head Tilt, Overcharge Protection, Over-discharge Protection, Reverse Polarity Protection, Low Voltage Cutoff, Power-Saving Program |
| SKU Code | 1-22-01-0200 |
| Barcode | 6977502514714 |
Details of SUPERFIRE HY06 Tactical Flashlight
Video
FAQ
Can I quickly switch between white and yellow modes?
Yes, the six-mode sequence is arranged as White High > White Low > White Strobe > White SOS > Yellow High > Yellow Low > Off. Users cycle through all modes in order with sequential button presses. To rapidly reach yellow from white, simply press the button through the sequence. Mode transitions must occur quickly; after a timeout period, the next press turns the light off.
When should I use yellow light instead of white?
Yellow light (3200K) should be selected whenever you are operating in fog, heavy dust, rain, snow, or smoke. The longer wavelengths of yellow light scatter less when encountering airborne particles, meaning more light reaches your target instead of reflecting back into your eyes. White light is ideal for clear conditions where maximum brightness and color accuracy are needed.
How do I activate and use the sensor mode?
From any operating mode, press and hold the power button for approximately 2 seconds. The sensor indicator light will illuminate, confirming activation. Wave your hand near the front sensor to toggle the light ON/OFF. To disable the sensor, long-press the power button again. The headlamp will remember the last-used color and brightness mode when reactivated.
Does using yellow light extend battery life compared to white?
Yellow and white channels consume similar power at their respective High settings (500LM vs 520LM), so runtime is approximately the same at maximum output for both colors. Using Low mode on either channel significantly extends runtime. The dual-color design is about versatility and environmental adaptation rather than power efficiency differences between colors.
Can I use higher-capacity 18650 batteries for longer runtime?
Yes, the HY06 accepts standard 18650 lithium cells. Using higher-capacity cells (e.g., 3500mAh instead of the included 1200mAh) will proportionally extend runtime. Ensure cells are protected, matched in capacity and charge state, and installed with correct polarity. Charging time will increase with higher-capacity cells.
Customization & OEM Services
- Brand Customization
The aluminum alloy front housing supports laser engraving for permanent logo and model markings with white contrast on the metal surface. The ABS body supports additional silkscreen or pad printing. The elastic headband can feature woven, printed, or embossed brand logos in custom colors. Custom body color options may be available for qualifying order volumes.
- Packaging Customization

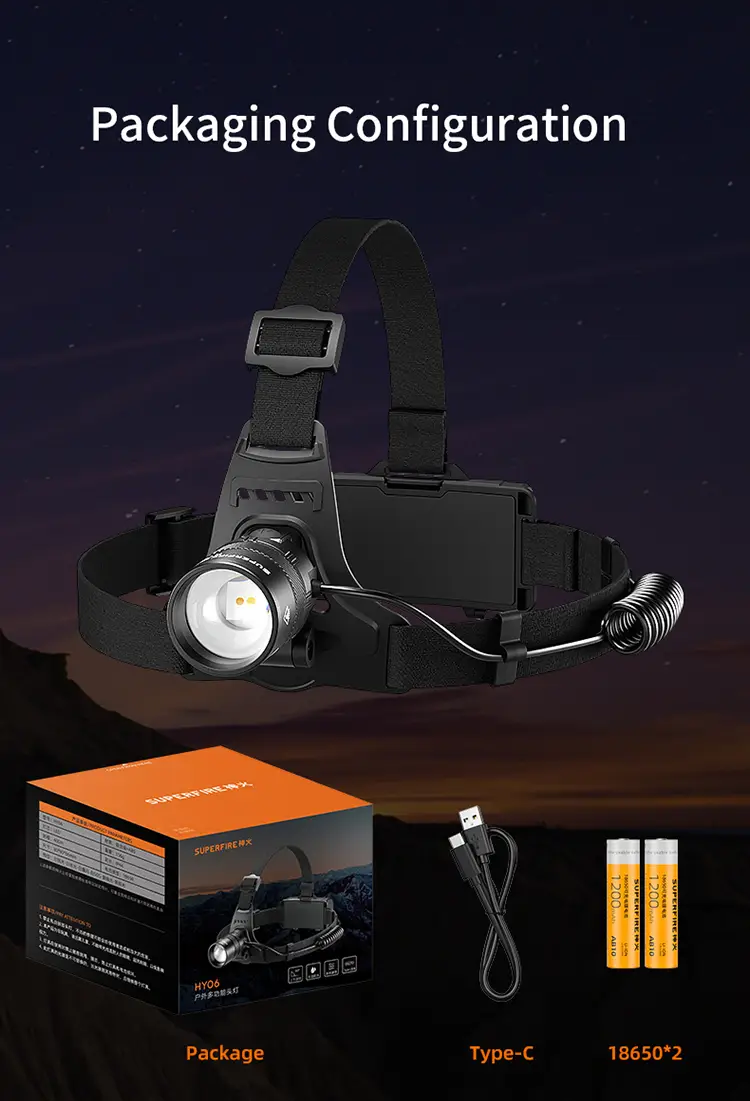

Standard packaging uses a dedicated branded retail box with UV coating and anti-counterfeit label. OEM customers can choose fully custom-designed packaging with brand identity, custom color schemes, product photography, and regional compliance labeling. Blister cards, window boxes, and eco-friendly alternatives are available. Multilingual manuals are supported.
- Product Customization
Available customizations include alternative color temperature combinations (e.g., neutral white + amber), modified mode sequences and default activation states, specialized accessory bundles for specific industries, custom-branded documentation, and packaging configurations. Engineering support is available for custom development.
- Quality Assurance
Every HY06 undergoes comprehensive QC testing: all six operating modes verified on both color channels, sensor mode calibrated and validated, zoom mechanism tested across full travel, battery contacts checked, charging circuit and indicator verified, IP44 seal tested, tilt mechanism inspected, and drop test performed. CE and RoHS certifications are maintained.
- Order & Logistics
Flexible order quantities with tiered pricing structures. Multiple shipping methods available including sea freight, air freight, and express courier. Samples for evaluation with lead times discussed upon inquiry. We provide consolidated shipment coordination for multi-product orders to optimize logistics costs.
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
