Core Overview
Characteristics of SUPERFIRE HL33 Tactical Flashlight

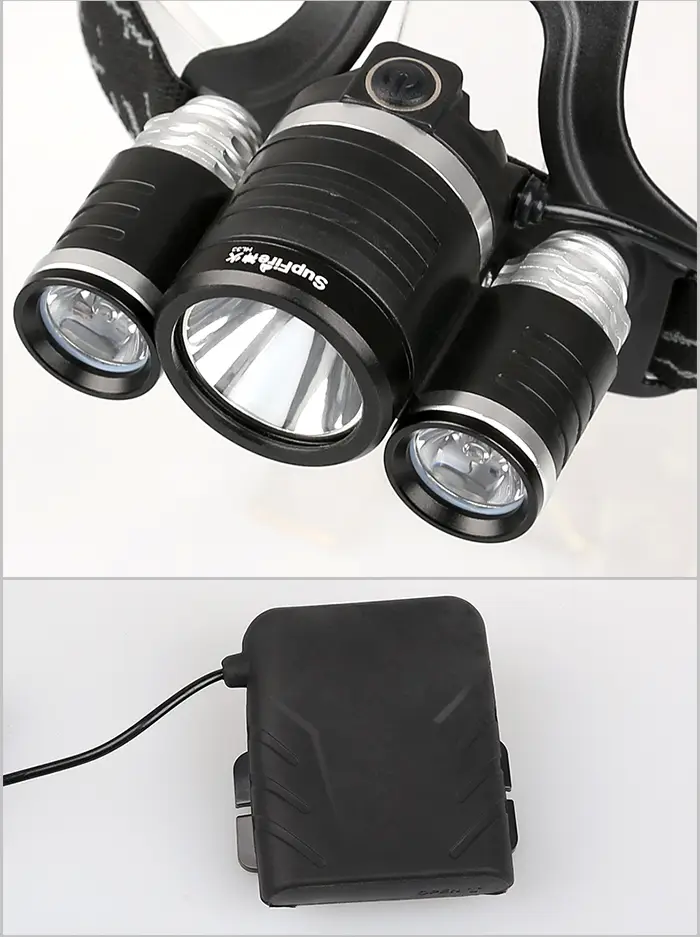

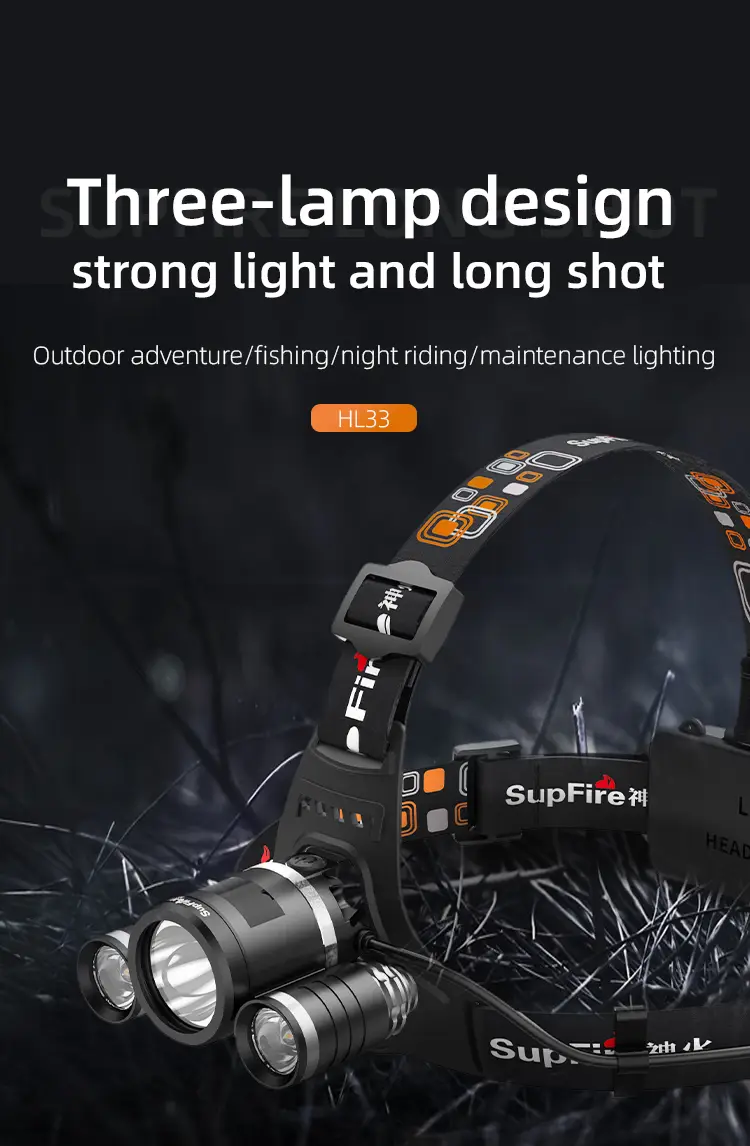

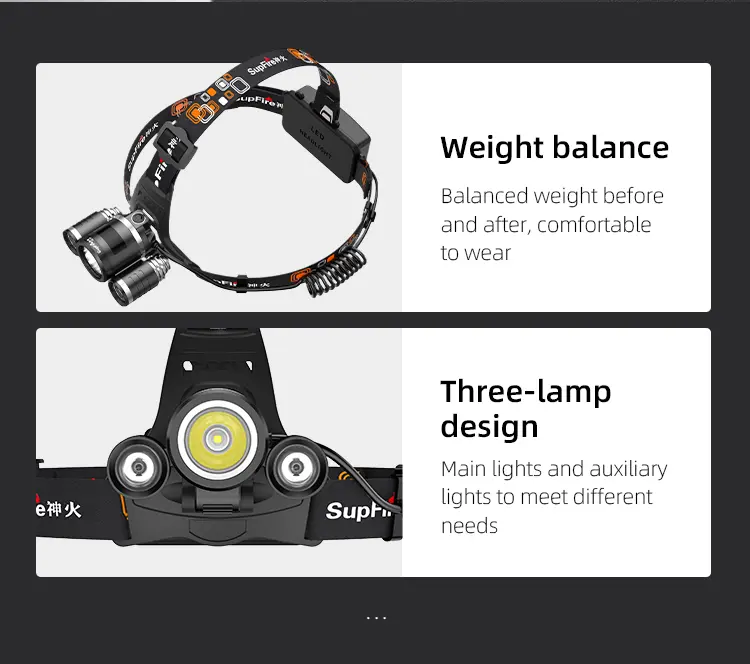

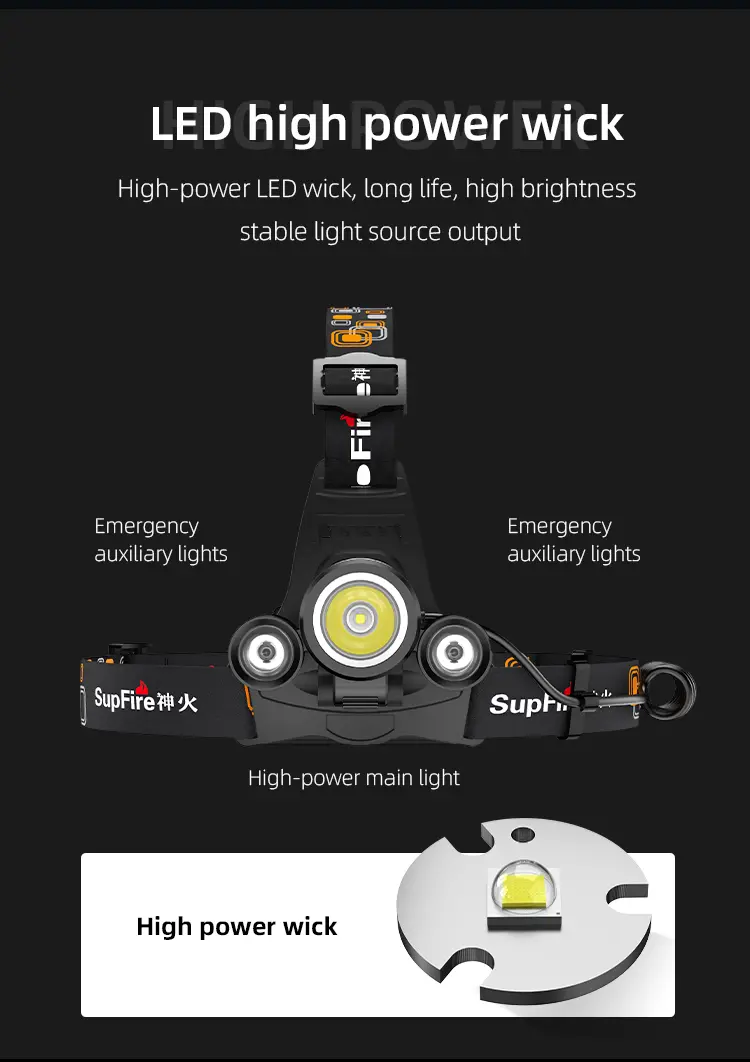

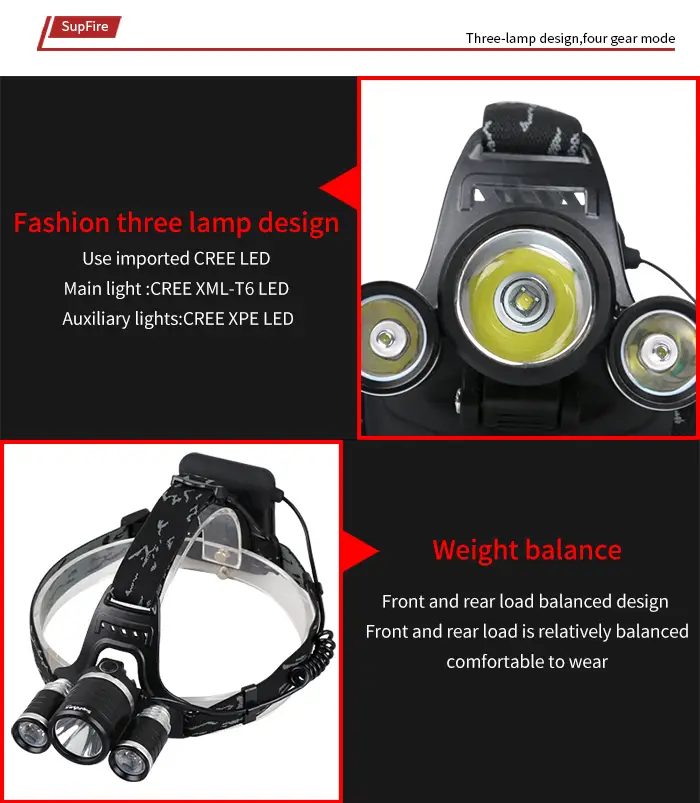

- Triple LED Architecture: Main Spot + Dual Side Flood

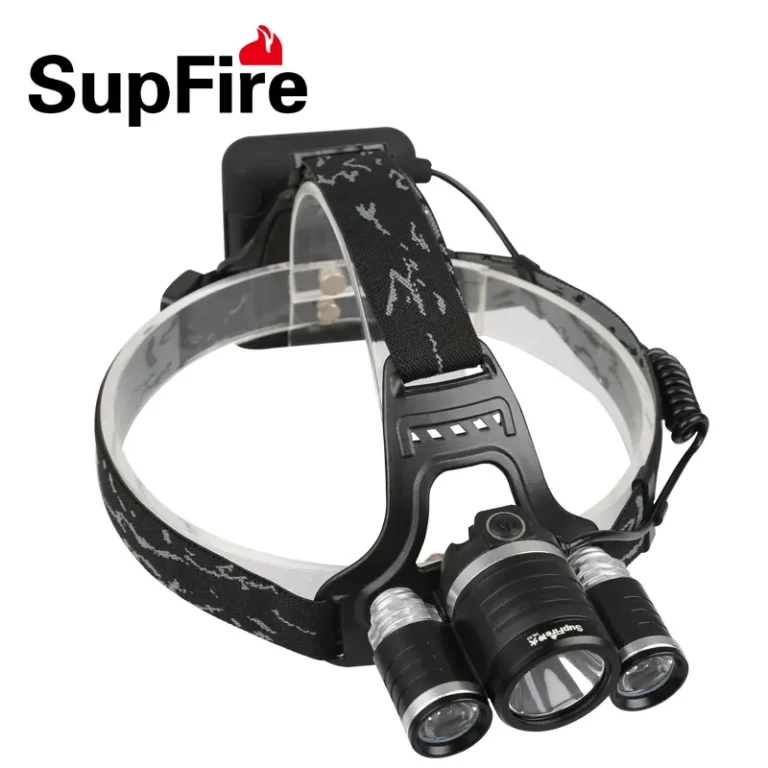

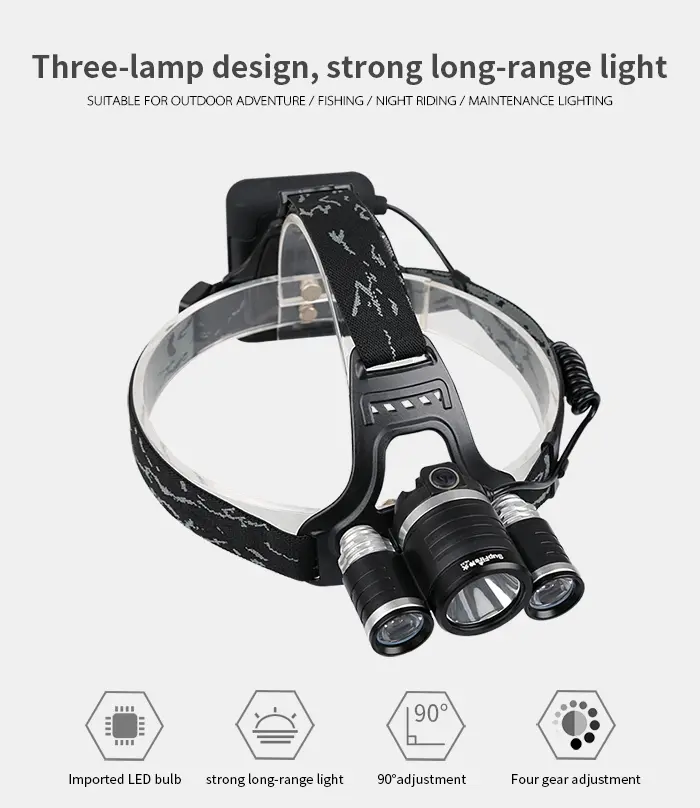

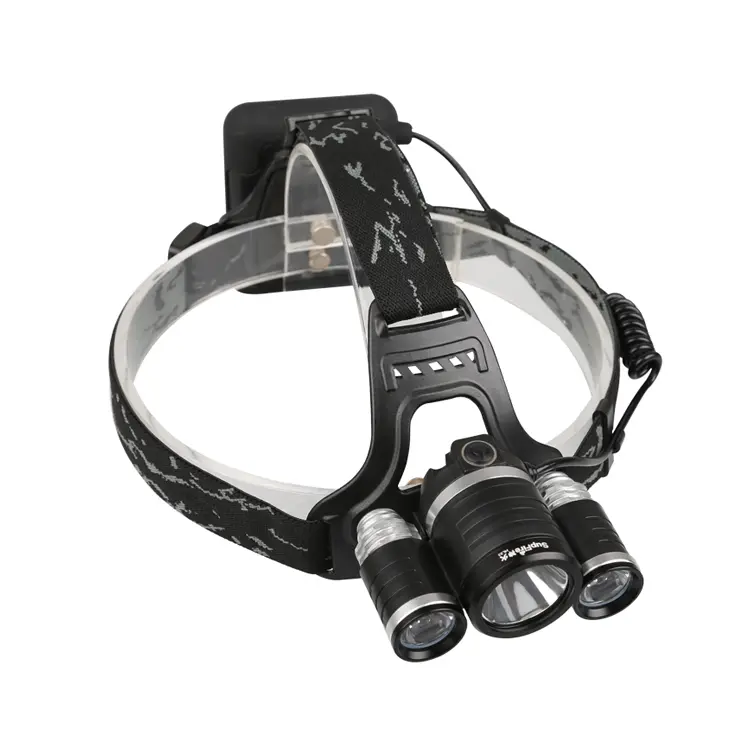

The HL33’s defining feature is its three-LED configuration: a high-power L2 LED in the center for focused long-range illumination, flanked by two XPE side LEDs providing wide-angle flood coverage. Users can activate the main beam alone (200m reach), the side lights alone (164m reach), or all three combined for maximum 229-meter illumination coverage.
- Rotary Focus Mechanism for Beam Control
A mechanical rotary focus ring on the front lens allows smooth, continuous adjustment from a tight spot beam to a wide flood pattern. Unlike fixed-focus headlamps, the HL33 adapts to the task at hand: dial in a concentrated beam for distance identification, then twist to flood for close-up area work — all without changing tools or position.

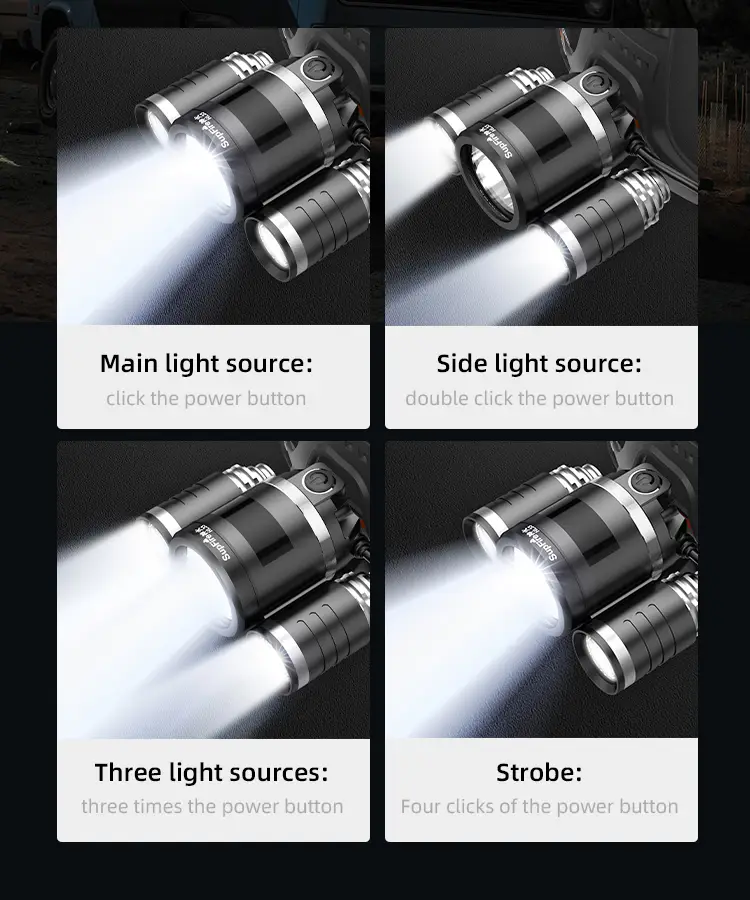

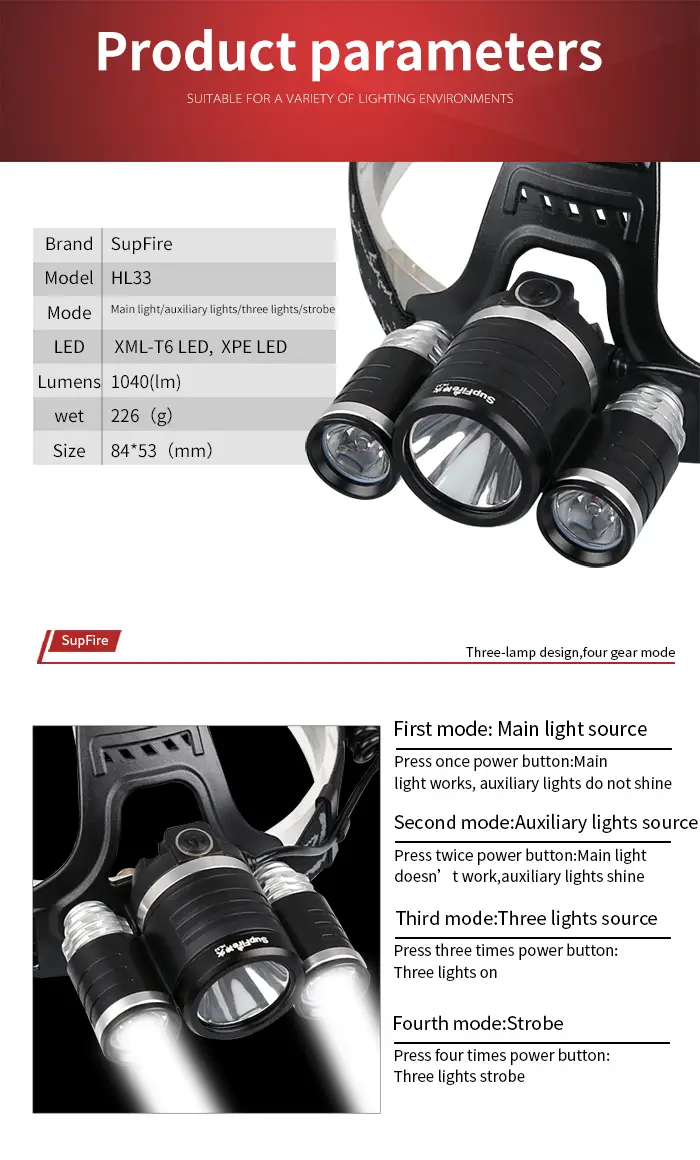

- Four-Mode Operation with Main+Side Combination
Cycle through Main Light, Auxiliary (Side) Light, Main+Side Combined, and Main+Side Strobe via a single top-mounted button. The strobe mode activates all three LEDs in a rapid flash pattern useful for emergency signaling, self-defense disorientation, or attracting attention in low-visibility conditions.
- Dual Replaceable 18650 Battery System
Two standard 18650 AB2-S 2000mAh cells provide a combined 4000mAh capacity in a removable battery tray. Users can carry spare cells for unlimited runtime in the field, swap depleted batteries in seconds, and charge cells externally or via the onboard USB port. This replaceable design significantly extends the product’s service life compared to sealed-battery alternatives.
- Memory Function for Workflow Continuity
When the HL33 is powered off and back on, it automatically returns to the last-used lighting mode rather than defaulting to the first position. This memory function saves time and frustration in professional workflows where users repeatedly need the same beam configuration, such as when cycling power between inspection points.

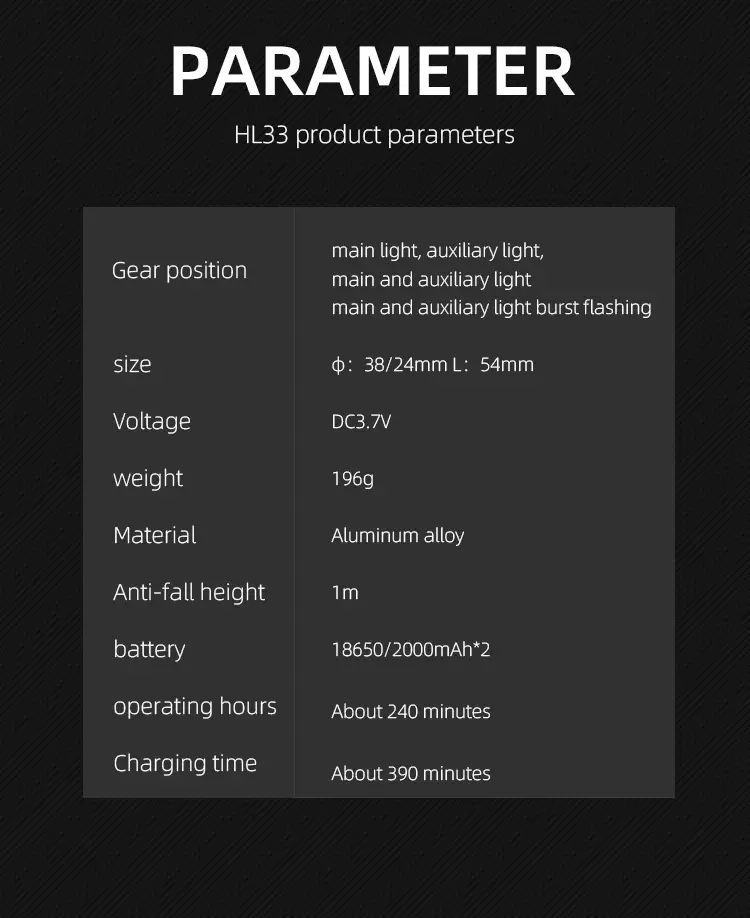

Specifications of HL33 Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | HL33 |
| Product Type | Triple LED Multi-Beam Headlamp |
| LED Configuration | Main: L2 x 1 / Side: XPE x 2 |
| Rated Power | Main: 10W / Side: 3W x 2 (16W Total) |
| Luminous Flux | Main: 550LM |
| Beam Distance | Main: 200m / Side: 164m / Combined: 229m |
| Color Temperature | Main: 9800K |
| Battery | 2 x 18650 AB2-S / 2000mAh (4000mAh Total, Replaceable) |
| Rated Voltage | DC 3.7V |
| Runtime | Approx. 4H |
| Charging Time | Approx. 6.5H |
| Charging Input | USB 5V / 1A |
| Waterproof Rating | IP42 |
| Drop Resistance | 1m |
| Unit Weight | 196g |
| Dimensions | Head Diameter: 38/24mm / Length: 54mm |
| Body Material | ABS |
| Color | Black |
| Focusable | Yes (Rotary Mechanical Focus) |
| Operating Modes | Main / Auxiliary (Side) / Main+Side Combined / Main+Side Strobe |
| Special Functions | Memory Mode Recall, Overcharge Protection, Over-discharge Protection, Reverse Polarity Protection, Low Voltage Indicator |
| SKU Code | 13163 |
| Barcode | 6956362942998 |

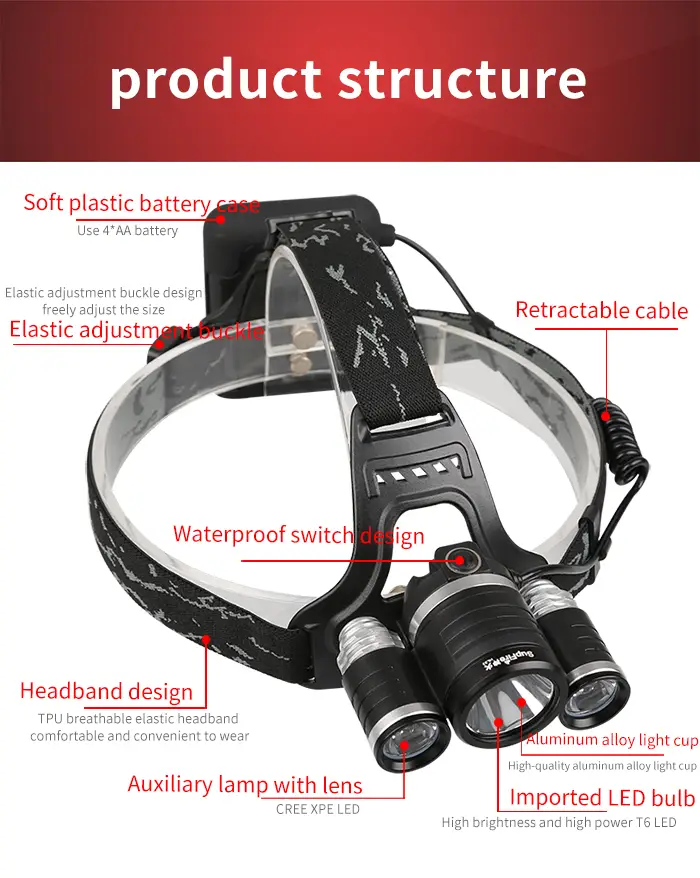

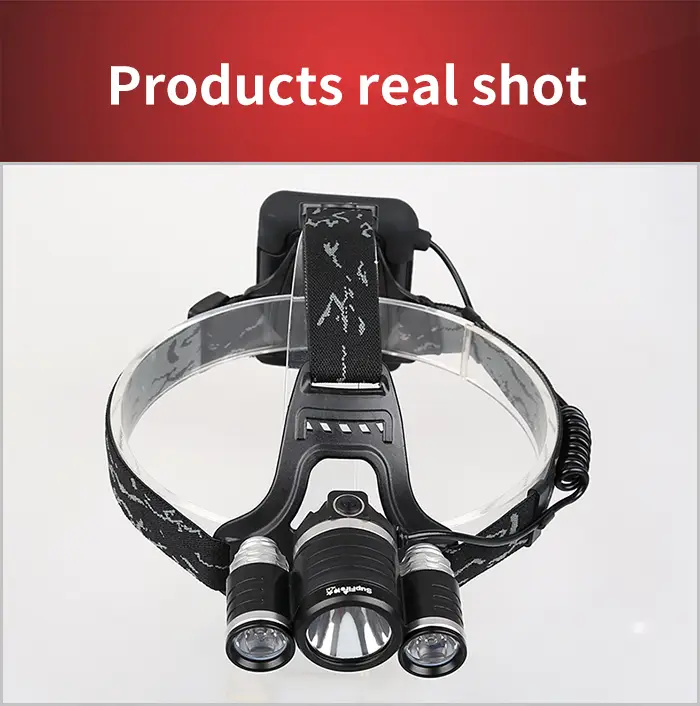

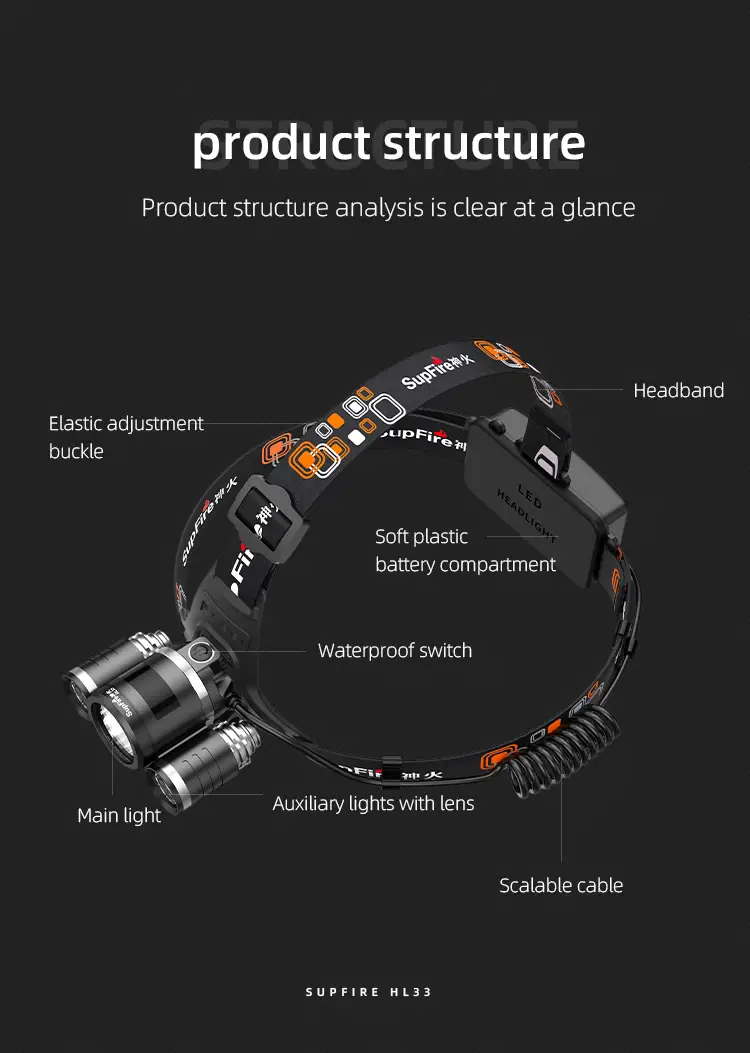

Details of SUPERFIRE HL33 Tactical Flashlight
Video
FAQ
Can I use just the side lights without the main beam?
Yes, the HL33’s mode sequence cycles through Main Only, Side Only, Combined, and Strobe. Selecting the Auxiliary mode activates the two XPE side LEDs alone, providing wide flood illumination without the intense center spot. This is ideal for close-up work where a softer, broader beam is preferred.
How does the memory function work?
When you turn off the HL33 while in any specific mode, the headlamp remembers that position. The next time you power it on — even after removing and reinstalling the batteries — it will activate in the same mode you were using previously, rather than always starting from the first mode in the sequence.
Are the batteries charged inside the headlamp or must they be removed?
Both options are supported. The HL33 has an onboard USB charging port that charges both cells while installed. Alternatively, the batteries can be removed and charged in any standard 18650 bay charger. Charging time is approximately 6.5 hours for a full charge of both cells.
What does IP42 mean for real-world use?
IP42 provides protection against solid objects larger than 1mm (tools, wires) and against dripping water when tilted up to 15 degrees. This is adequate for light rain and dusty workshop environments. The HL33 is not designed for heavy rain exposure or submersion.
How does the rotary focus compare to fixed-focus headlamps in the same class?
The rotary focus mechanism allows infinite adjustment between spot and flood, giving the HL33 both the long-range capability of a dedicated thrower (229m combined) and the area illumination of a flood light. Fixed-focus competitors must compromise on one beam profile, while the HL33 delivers both.
Customization & OEM Services
- Brand Customization

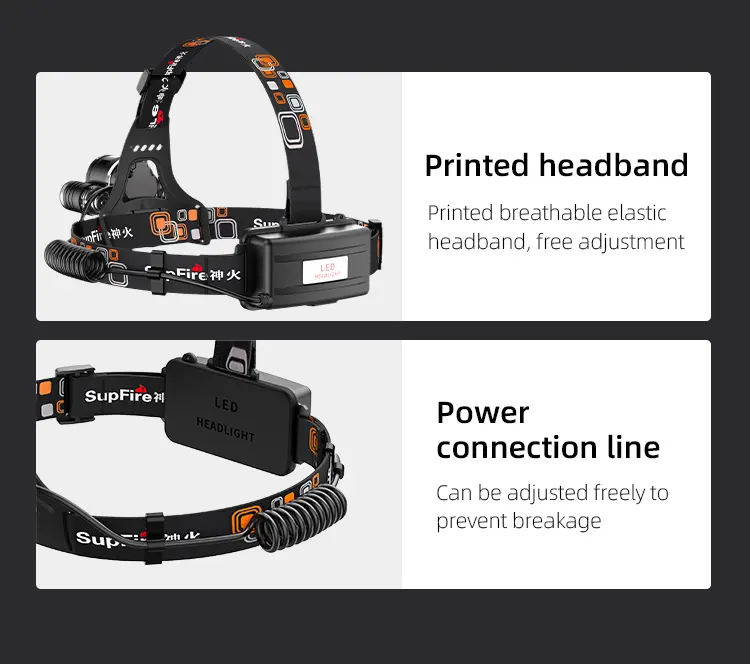

The ABS body supports laser engraving and silkscreen printing for brand logos and model markings. Laser marking is white on the black body for high contrast. The elastic headband can feature woven, printed, or embossed logos in custom colors. Custom body colors may be available for qualifying volumes.
- Packaging Customization
Standard packaging uses a dedicated retail box with anti-counterfeit label. OEM services include custom-printed boxes with full brand identity, custom color schemes, product photography, and barcode placement. Blister cards, display boxes, and eco-friendly alternatives are available.
- Product Customization
Engineering customization includes alternative LED configurations (different color temperatures, UV, or IR side LEDs), modified mode sequences, customized battery configurations, branded accessory bundles, and specialized documentation. Full-cycle development support from concept to production samples.
- Quality Assurance
Each HL33 unit undergoes comprehensive QC testing: all four operating modes verified, rotary focus mechanism inspected for smooth operation, battery contacts tested, charging circuit validated, memory function verified, waterproof seal tested, and drop resistance confirmed. CE and RoHS certifications are maintained.
- Order & Logistics
Flexible order quantities accommodate businesses of all scales. Multiple shipping methods include sea freight, air freight, and express courier. Samples available for evaluation. We provide logistics coordination and can arrange consolidated multi-product shipments.
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
