Core Overview
Key Product Advantages
- Premium Luminus SFT-70X-WXS LED with 2850 Lumen Output
At the core of the TF02 is the Luminus SFT-70X-WXS LED—a high-performance emitter delivering 2850 lumens of brilliant white light at 6956K color temperature. This professional-grade LED provides exceptional luminous efficacy, consistent beam quality, and extended operational lifespan compared to generic LED alternatives, ensuring reliable performance across thousands of duty cycles.

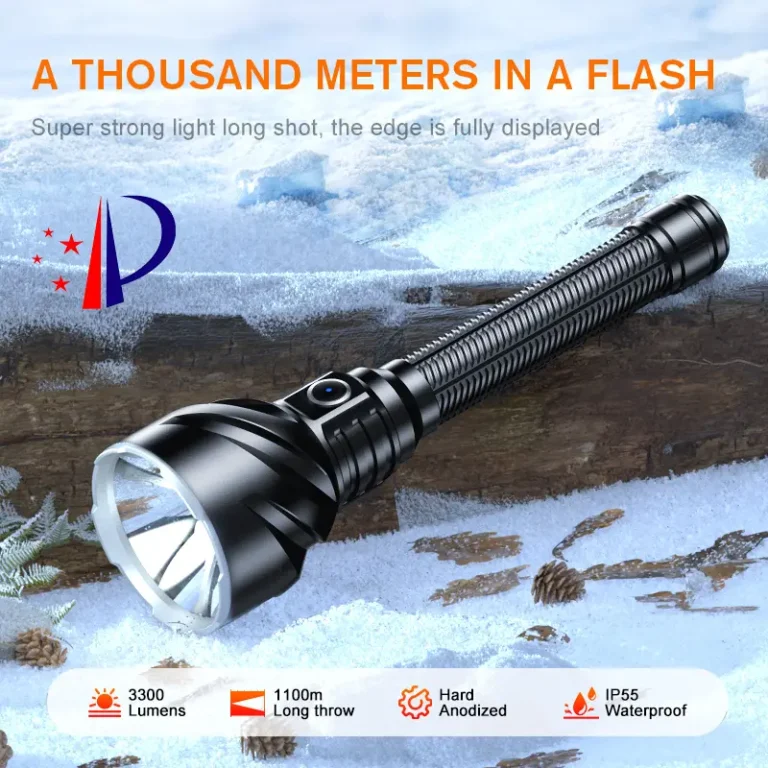

- 1100-Meter Extreme Beam Distance with Precision Optics
The TF02 achieves an outstanding 1100-meter effective beam distance backed by 302,500 candela peak intensity, enabled by a large-diameter precision-machined metal reflector. This optical system maximizes light collimation and throw, providing clear target illumination at distances unreachable by standard flashlights. Ideal for search and rescue, long-range patrol, maritime signaling, and wide-area outdoor surveillance operations.

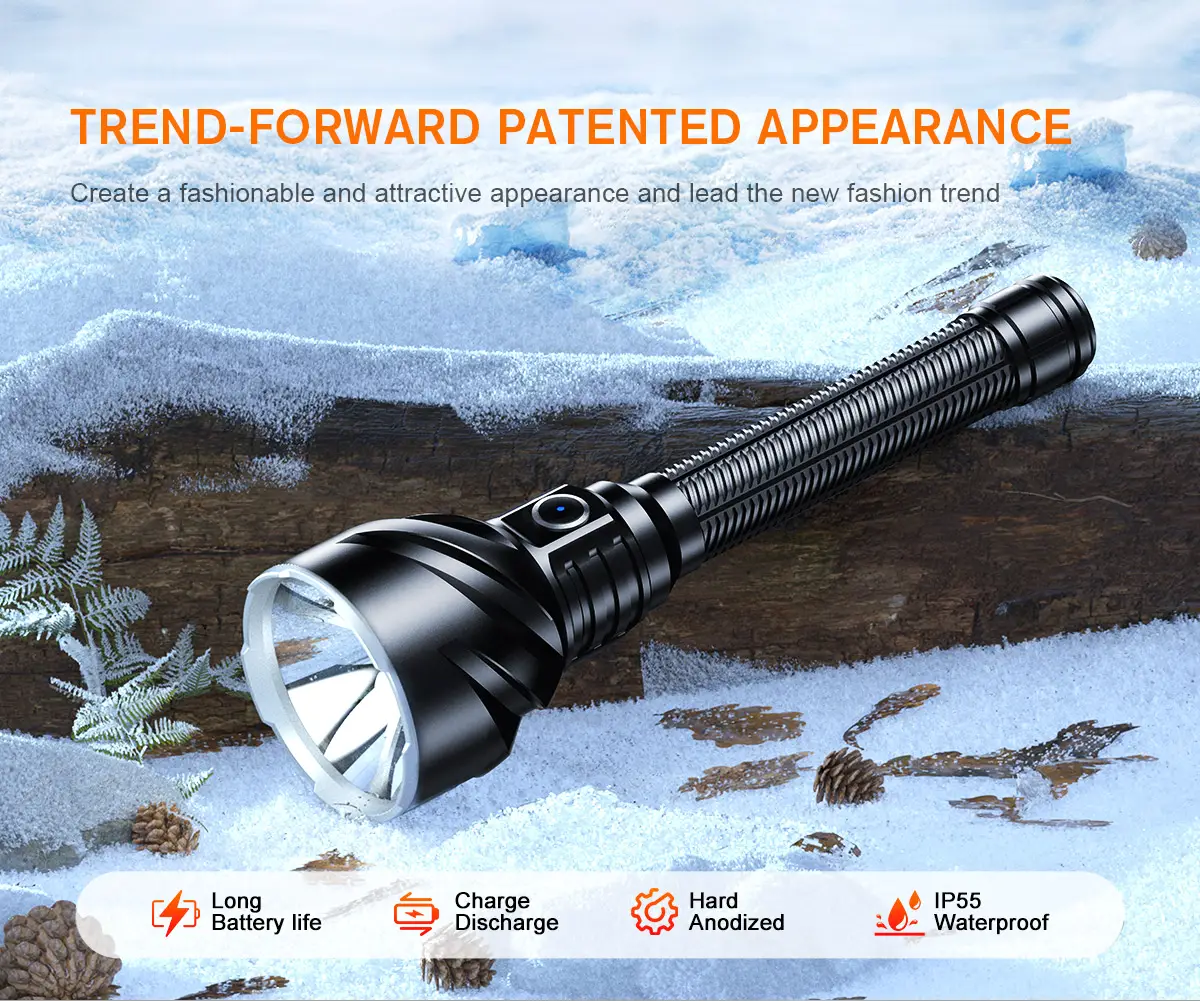

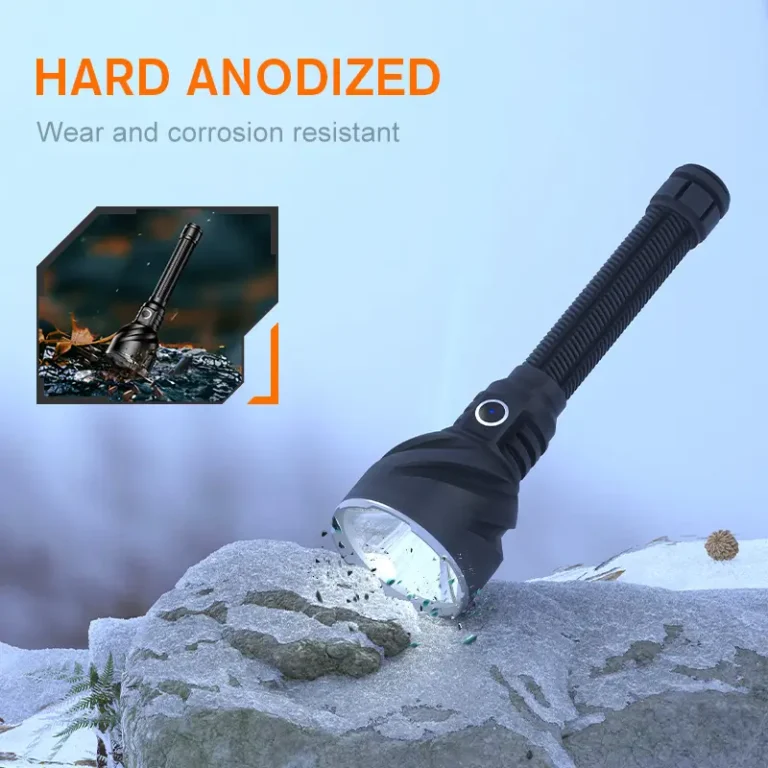

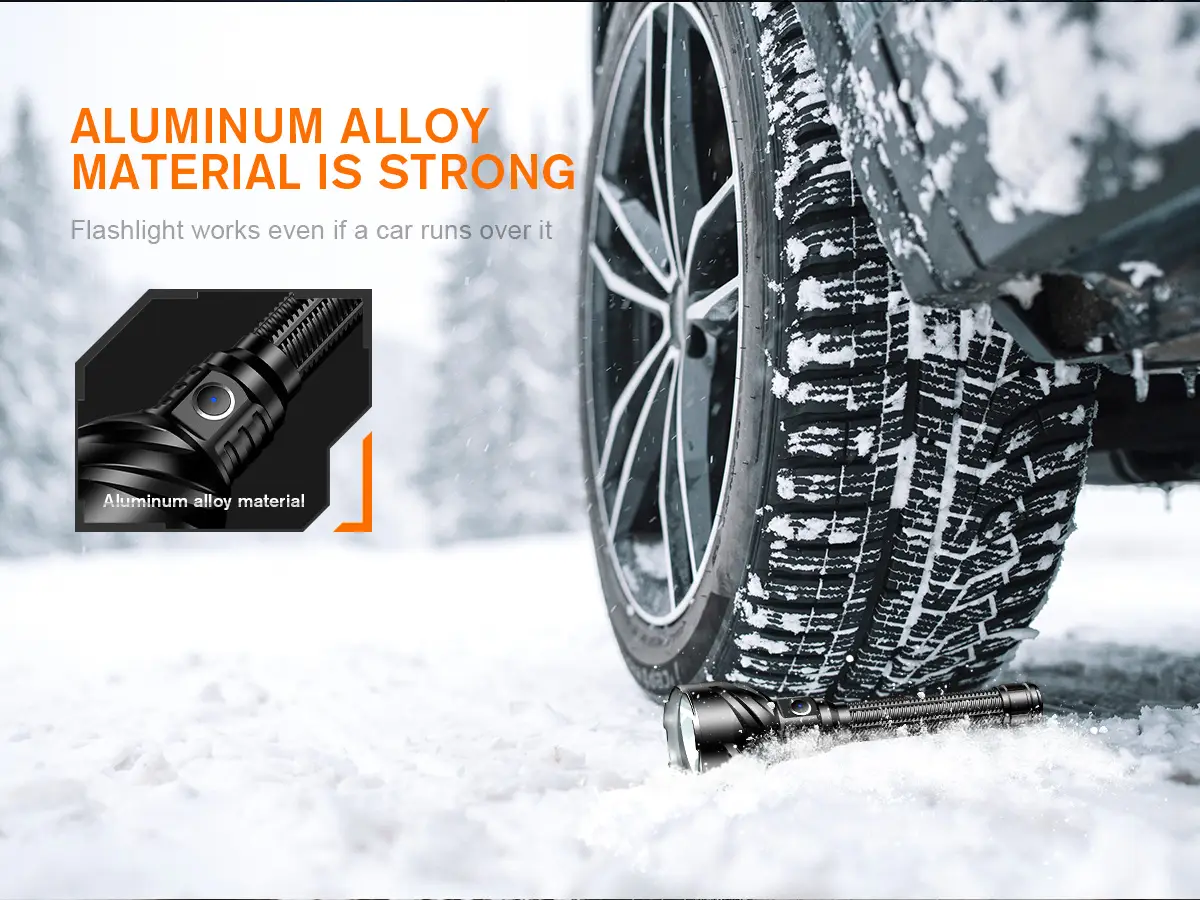

- T6061-T6 Aircraft Aluminum Construction with Hard Anodizing
Machined from T6061-T6 aluminum alloy—the same grade used in aerospace applications—the TF02 body undergoes a hard anodized surface treatment for superior hardness, corrosion resistance, and wear durability. The textured grip pattern ensures secure handling in wet or gloved conditions. This premium construction withstands 1-meter drop impact and harsh environmental exposure without compromising structural integrity or aesthetic finish.

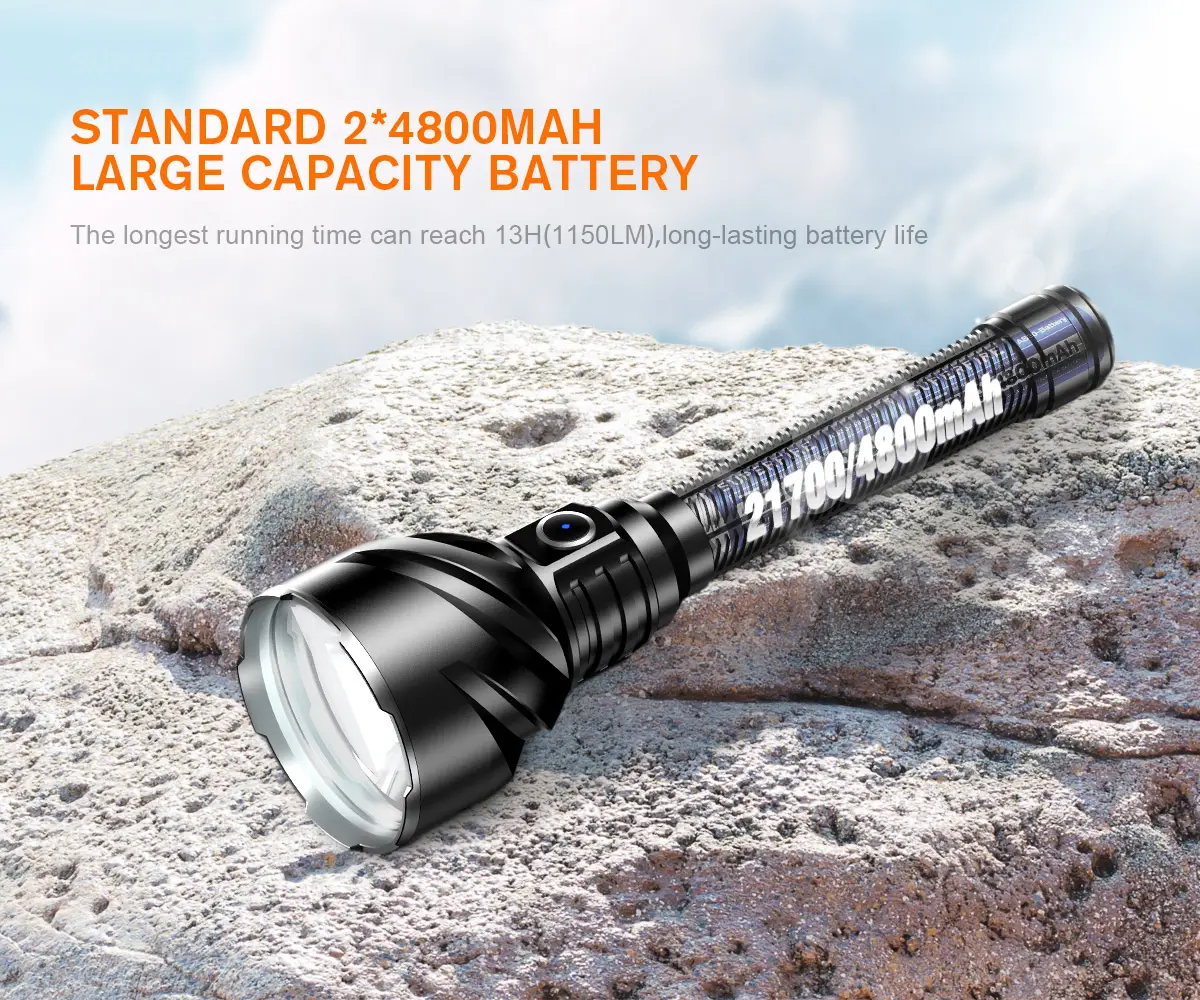

- Dual 21700 Battery System with Extended Runtime
The TF02 operates on two external 21700 lithium-ion cells (4800mAh each, 9600mAh total), delivering up to 284 minutes of continuous illumination on a full charge. The 7.4V dual-battery architecture provides the high-current delivery required for peak 40W output while maintaining thermal stability. Users can carry spare pre-charged 21700 cells for unlimited field runtime without downtime.
- Comprehensive Safety and Power Management Features
The TF02 integrates a complete circuit protection suite including overcharge protection, over-discharge prevention, reverse polarity protection, low-voltage warning indicator, and automatic low-voltage cutoff. The bidirectional Type-C port functions as both charging input (5V/1A, 327 minutes full charge) and power bank output (5V/1.85A), enabling emergency charging of smartphones, GPS units, and communication devices in the field.

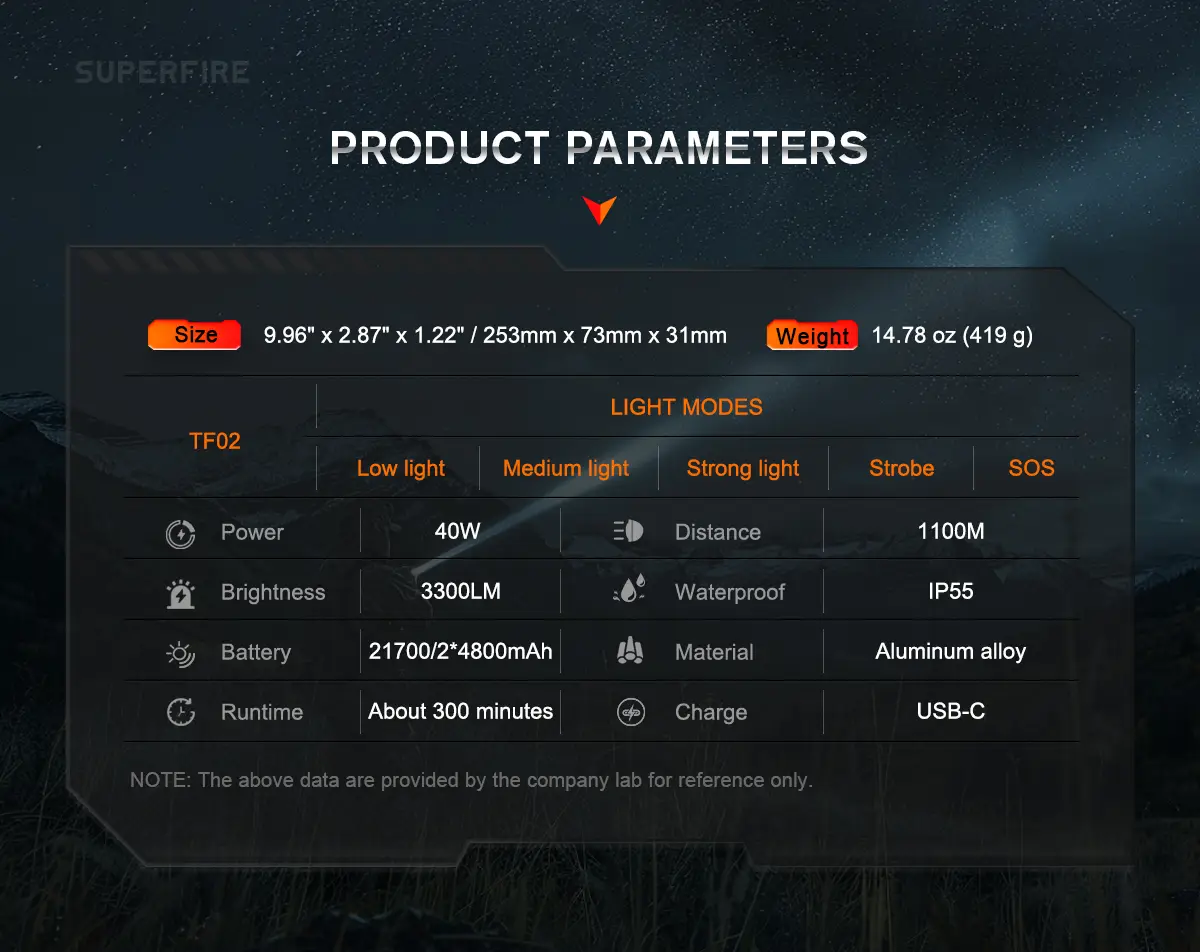

Specifications of TF02 Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | TF02 |
| Product Name | Professional Long-Range Tactical Flashlight (High-End) |
| LED Type | Luminus SFT-70X-WXS |
| Rated Power | 40W (MAX) |
| Luminous Flux | 2850LM |
| Peak Beam Intensity | 302,500 Candela |
| Effective Beam Distance | 1100M |
| Color Temperature | 6956K (Cool White) |
| Battery Type | 21700 Lithium-Ion (External, User-Replaceable) |
| Battery Configuration | 2 x 4800mAh (9600mAh Total) |
| Rated Voltage | DC 7.4V |
| Runtime (Strong Mode) | ~284 Minutes (4.7 Hours) |
| Charging Time | ~327 Minutes (5.45 Hours) |
| Charging Port | Type-C |
| Charging Input | 5V/1A |
| Discharge Output | 5V/1.85A |

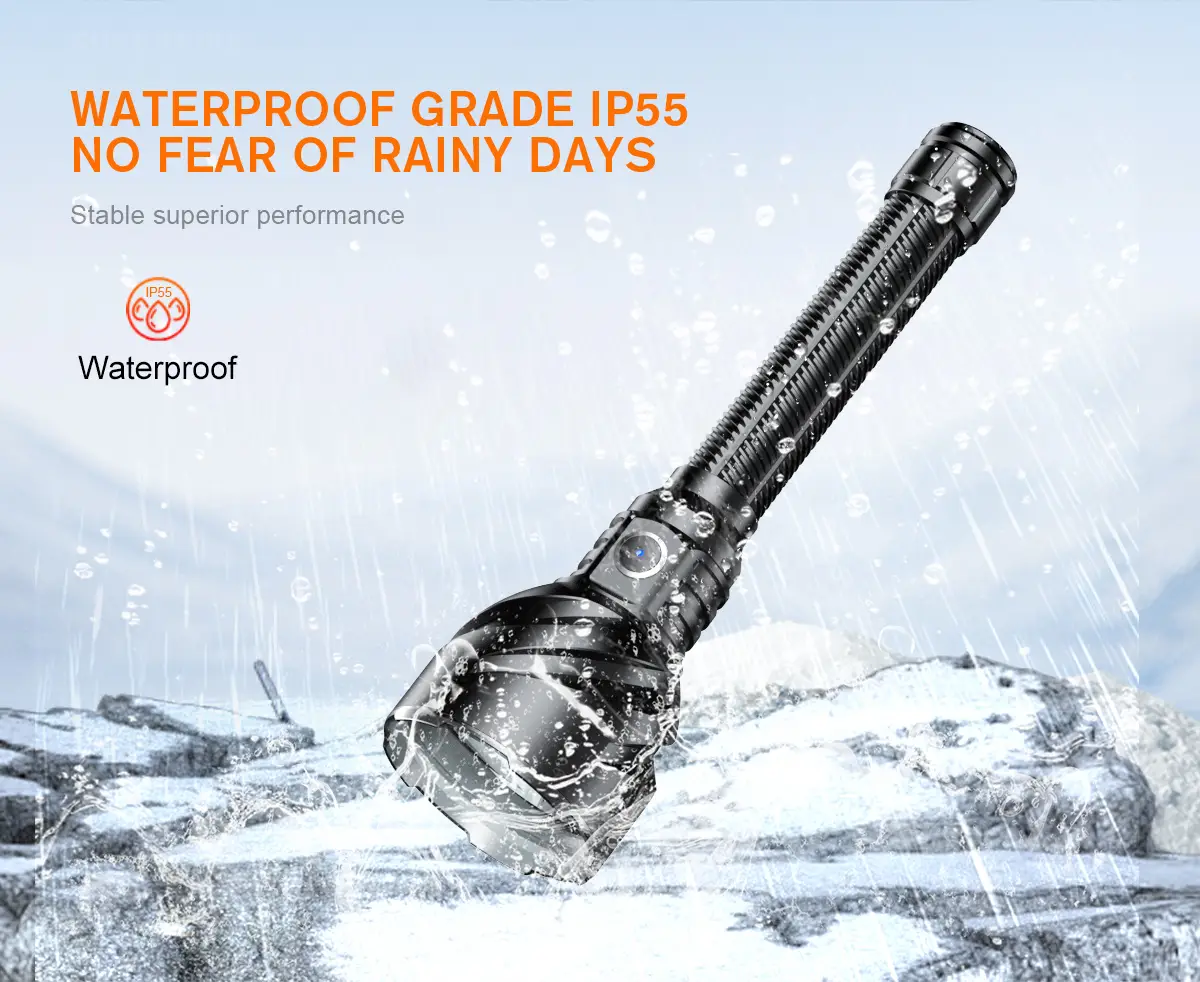

| Waterproof Rating | IP55 |
| Drop Resistance | 1M |
| Housing Material | T6061-T6 Aircraft Aluminum Alloy |
| Surface Treatment | Hard Anodized |
| Focus Mechanism | Fixed (Optimized for Long-Range Throw) |
| Light Beam Color | White |
| Product Color | Black |
| Dimensions | 253 x 73 x 31mm |
| Unit Weight | 419g (Flashlight Only) |

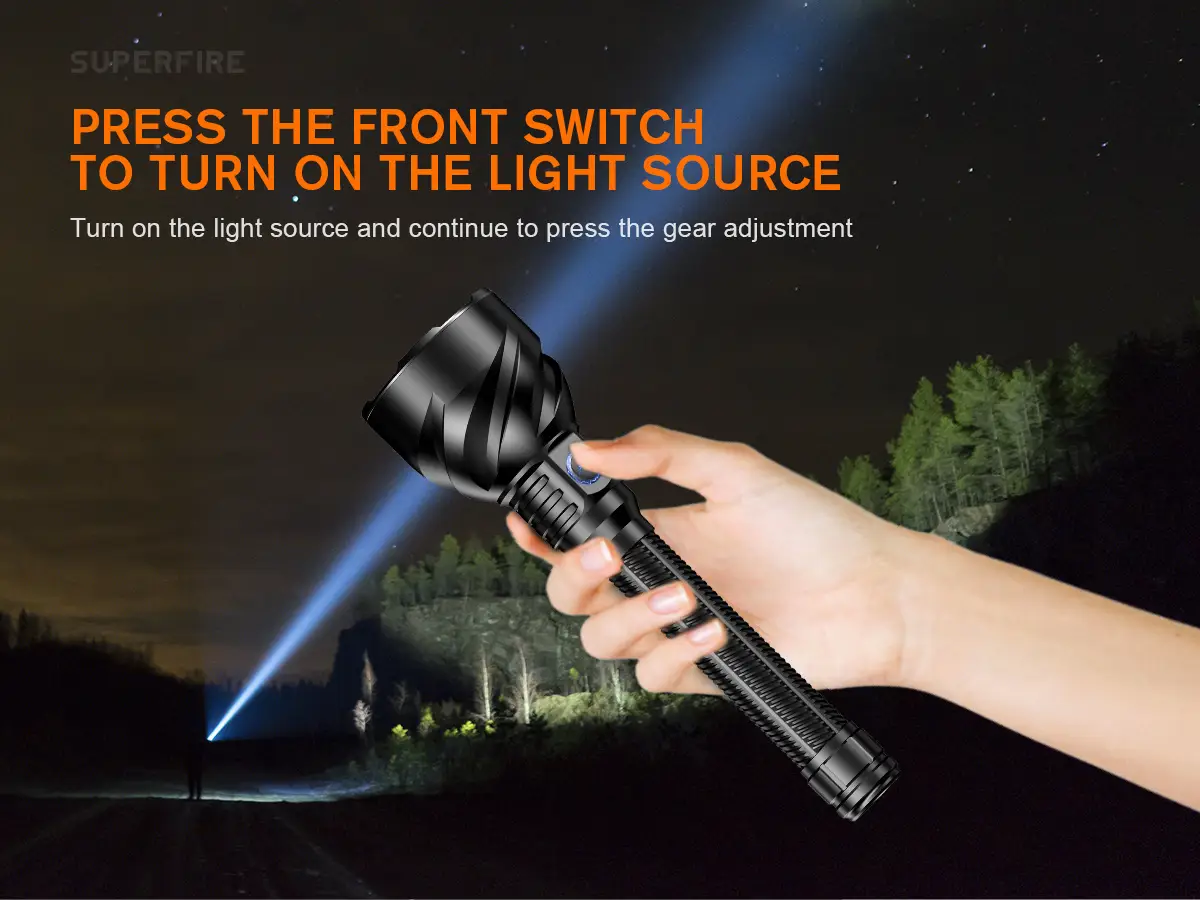

| Operating Modes | Weak → Medium → Strong → Strobe → SOS → Off (5 Modes) |
| Shutdown | Long Press 3 Seconds from Any Mode |
| Power Bank Function | Double-Click to Activate / Double-Click to Deactivate |
| Circuit Protection | Overcharge / Over-Discharge / Reverse Polarity / Low Voltage Warning / Low Voltage Cutoff |
| Barcode | 6975515777607 |

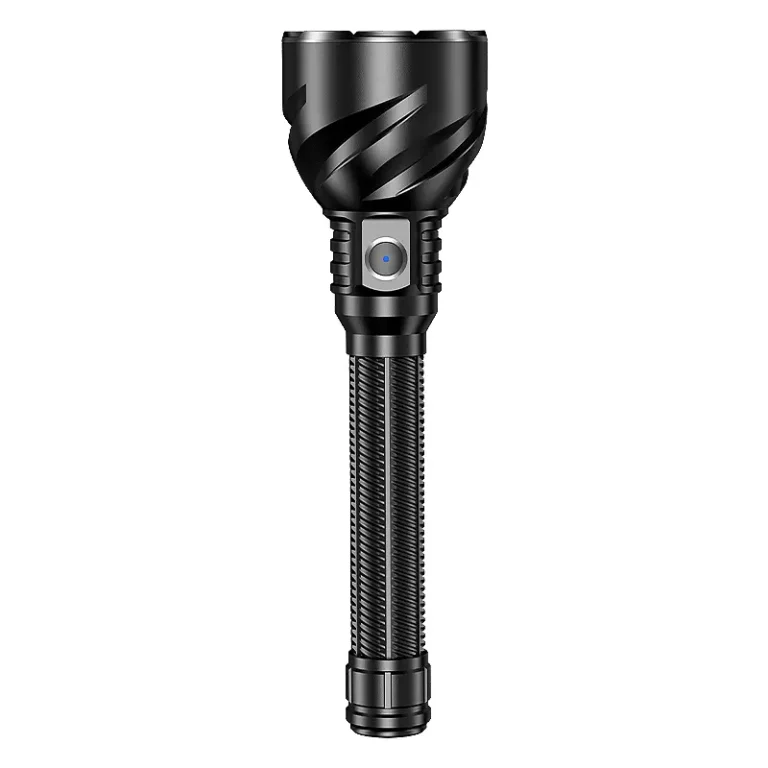

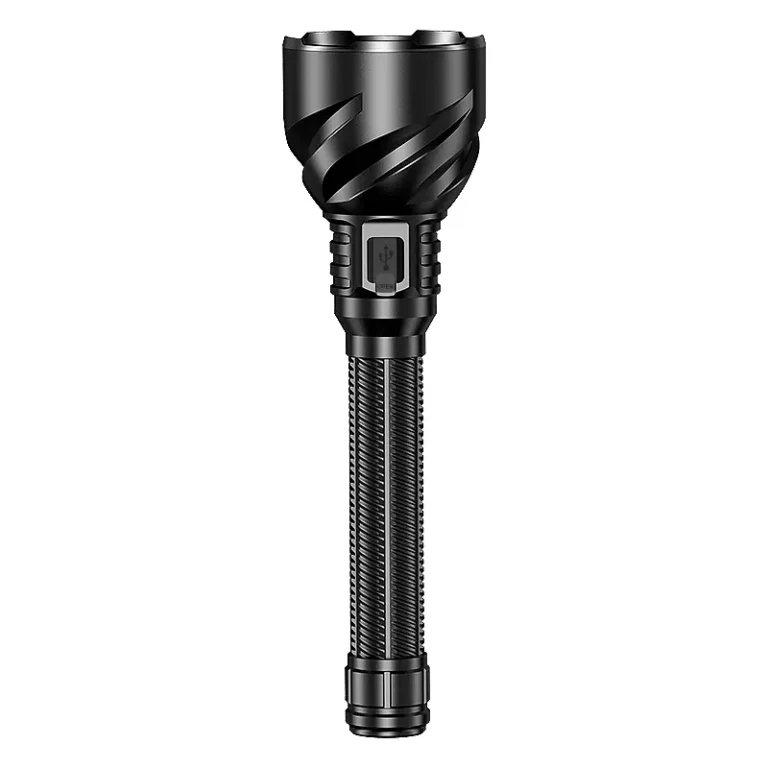

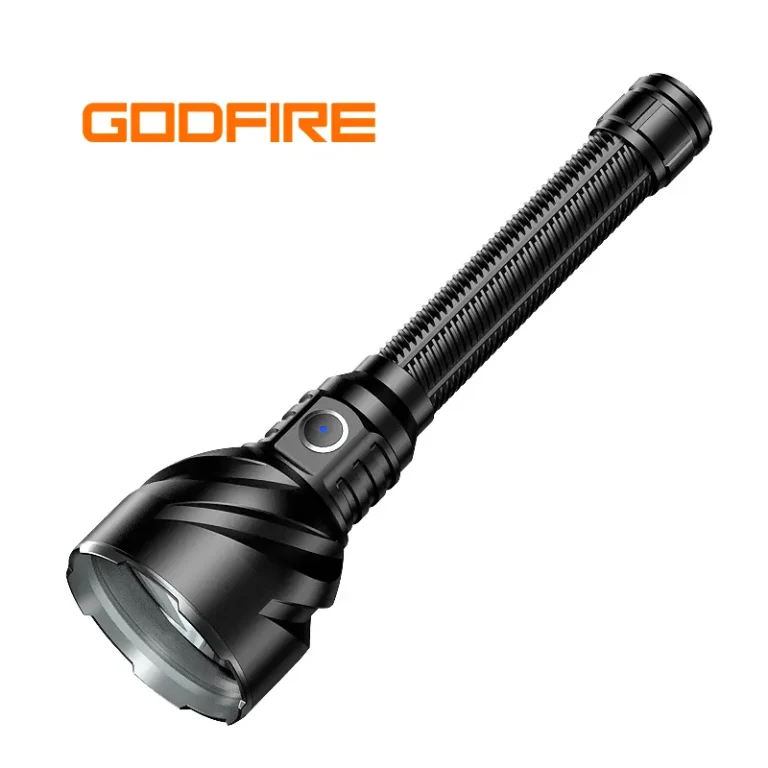

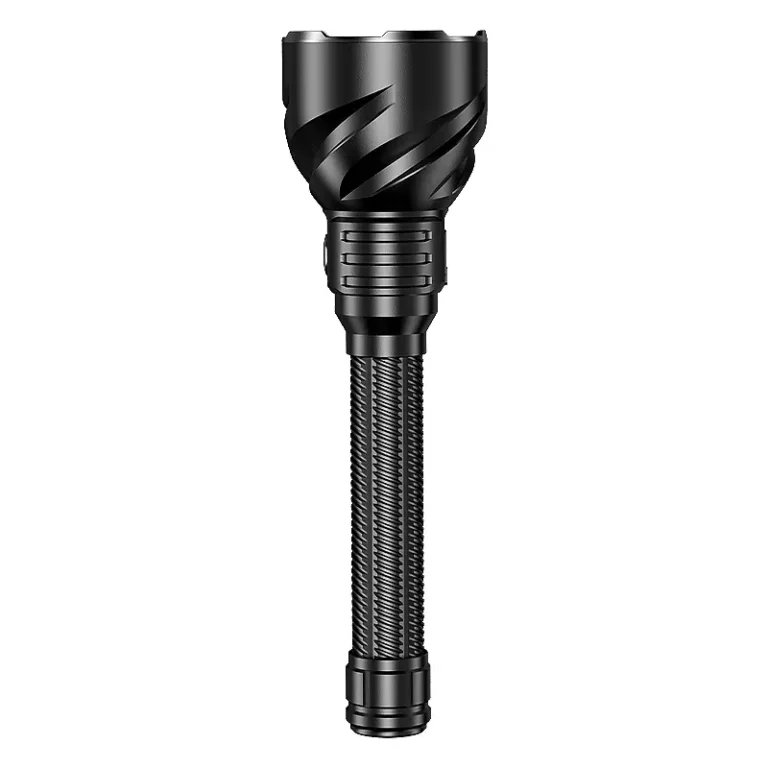

Details of SUPERFIRE TF02 Tactical Flashlight
Video
FAQ
What makes the Luminus SFT-70X-WXS LED superior to standard flashlight LEDs?
The Luminus SFT-70X-WXS is a professional-grade high-intensity LED purpose-built for long-range illumination applications. It provides higher luminous flux density, better thermal management, and superior beam consistency compared to standard commodity LEDs. This translates to the TF02’s exceptional 1100-meter beam distance and 302,500 candela peak intensity—specifications achievable only with premium emitter technology.
Can I use standard 21700 batteries with the TF02, or are proprietary batteries required?
The TF02 uses standard 21700 lithium-ion cells in a dual-battery configuration. The recommended specification is 21700/4800mAh cells (SUPERFIRE AB30 flat-top variant is pre-tested for optimal performance). The external battery bay allows quick swapping of pre-charged spare cells in the field. We recommend using protected 21700 cells for optimal safety and performance. Battery availability for bulk orders can be discussed with our B2B team.

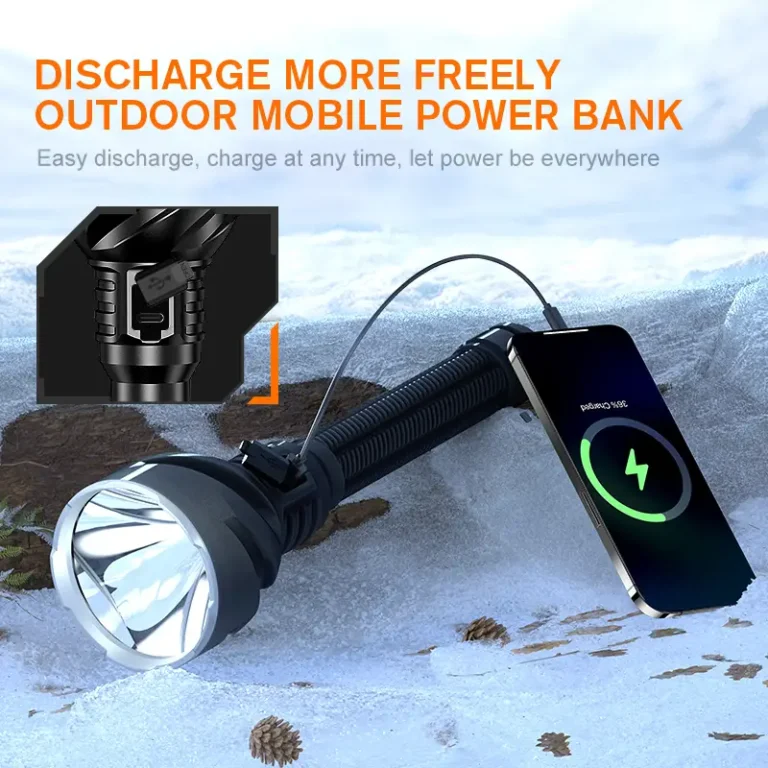

How does the power bank (discharge) function work on the TF02?
The TF02’s bidirectional Type-C port supports reverse power delivery at 5V/1.85A output. To activate power bank mode, double-click the main switch—the flashlight will enter discharge mode to charge an external device. Double-click again to deactivate and return to flashlight operation. This provides emergency charging capability for smartphones, GPS navigation units, and communication devices during extended field operations.
What is the runtime in the strongest mode versus lower modes?
In Strong mode (maximum 40W output, 2850LM), the TF02 delivers approximately 284 minutes (4.7 hours) of continuous illumination from fully charged batteries. Lower modes provide significantly extended runtime: Medium mode (17.16W) and Weak mode (9.17W) each proportionally extend operational duration. The SOS mode cycles at variable power (0.074-16.72W) and can operate for extended periods for emergency signaling applications.
Is the TF02 suitable for professional and government procurement?
Yes. The TF02 is designed to meet the requirements of professional users including search and rescue teams, law enforcement, border patrol, maritime operators, and industrial inspection crews. The premium T6061-T6 construction, IP55 weather sealing, documented performance specifications, and comprehensive circuit protection make it suitable for mission-critical applications. We support government and institutional procurement with custom documentation packages, compliance certifications, and long-term supply agreements structured on a per-contract basis.
Customization & OEM Services
- Brand Customization
We offer comprehensive OEM branding services for the TF02 including laser engraving of agency/department logos on the T6061-T6 aluminum body, custom anodizing color options beyond standard black, silk-screen marking with your organization’s nomenclature and serial number formatting, and fully customized retail or institutional packaging with your visual identity. The standard SHENHUO metal logo plate can be replaced with your custom metal badge. All branding specifications are reviewed and prototyped before full production.
- Packaging Customization

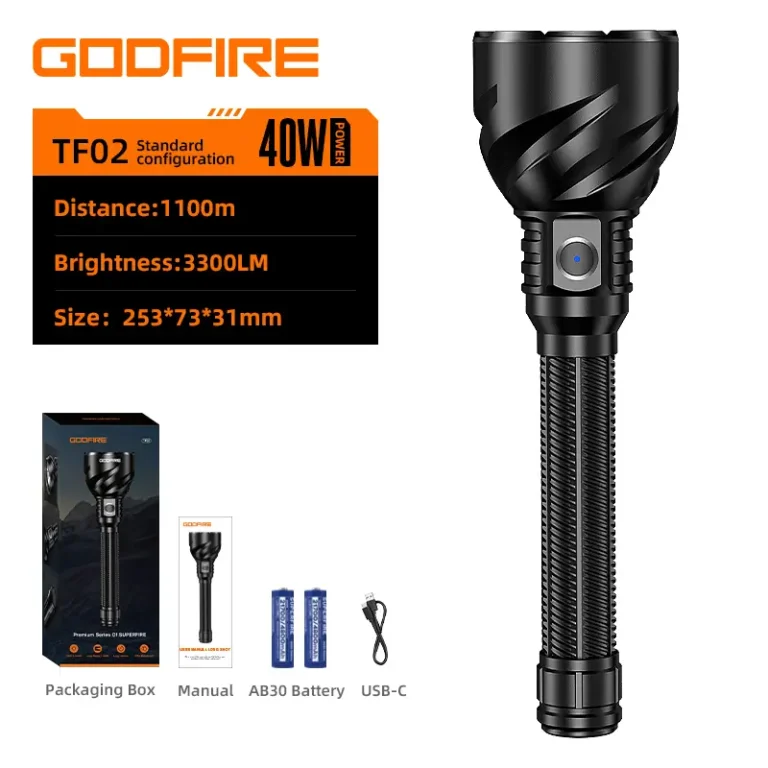

The standard TF02 retail packaging consists of a premium two-piece rigid gift box (lid and base) with custom foam insert, multi-language instruction manual, Type-C charging cable (50cm, 2A), and pair of AB30 21700 batteries. We offer fully customizable packaging solutions including: institutional bulk packaging for agency procurement, custom-printed color boxes with your brand identity, bundled accessory configurations (additional batteries, charging docks, holsters, filters), co-branded instruction manuals in your required languages, and specialized master carton configurations optimized for your logistics requirements.
- Product Customization
The TF02 platform supports various hardware specification modifications for specialized applications: alternative LED emitters for different color temperatures or beam characteristics, custom brightness mode programming (different lumen outputs, mode sequences, or tactical interface configurations), specialized reflector coatings for specific beam profiles, integrated mounting solutions for weapon rails or vehicle brackets, and compliance-specific modifications for regional certification requirements (CE, RoHS, etc.). All custom engineering is validated through our R&D quality control process before production release.
- Quality & Compliance
Each TF02 unit is manufactured and tested under SUPERFIRE’s stringent quality control framework (documented by R&D department with signed approval records). Testing protocols include: full LED and driver circuit verification, power output validation across all five modes (Weak: 9.17W, Medium: 17.16W, Strong: 37.88W, Strobe: 6.58-9.99W, SOS: 0.074-16.72W), battery charge/discharge cycle testing, IP55 water jet protection certification, 1M drop test validation, candela and beam distance confirmation, thermal management verification under sustained maximum output, and complete functional testing of all operating modes including power bank discharge. Quality documentation is maintained for full batch traceability.
- Order & Logistics
We accommodate flexible order volumes from evaluation samples to full production runs for institutional procurement and commercial distribution. Lead times are confirmed based on order specifications, customization requirements, and current production scheduling—all discussed transparently before order confirmation. Global logistics are supported through our established international shipping network, with flexible Incoterms negotiated per order. Dedicated B2B account management provides end-to-end support from initial inquiry through post-delivery service. Commercial terms including pricing, payment arrangements, warranty provisions, and delivery schedules are discussed confidentially on a per-order basis.
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
