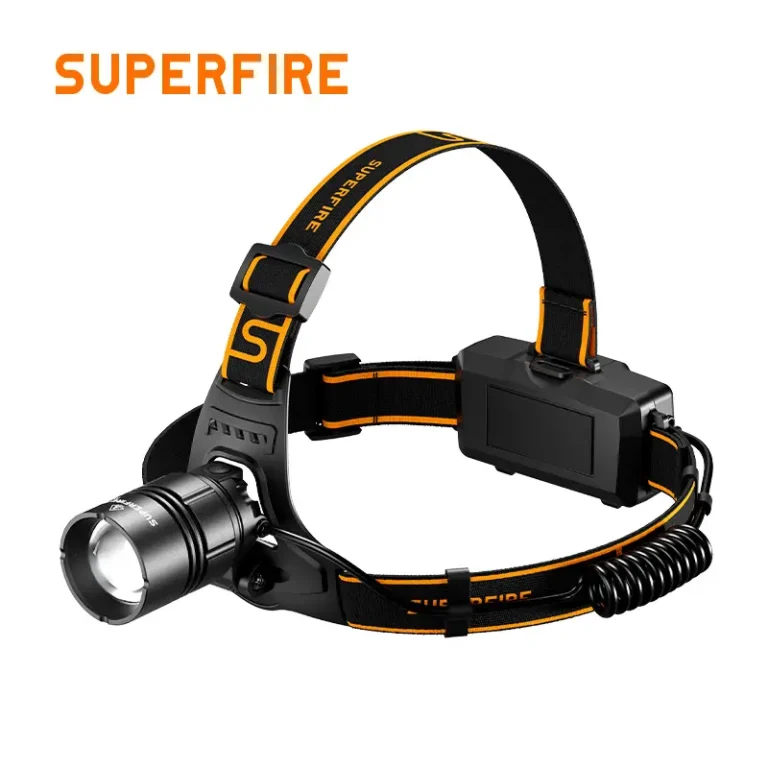

Core Overview
Key Product Advantages

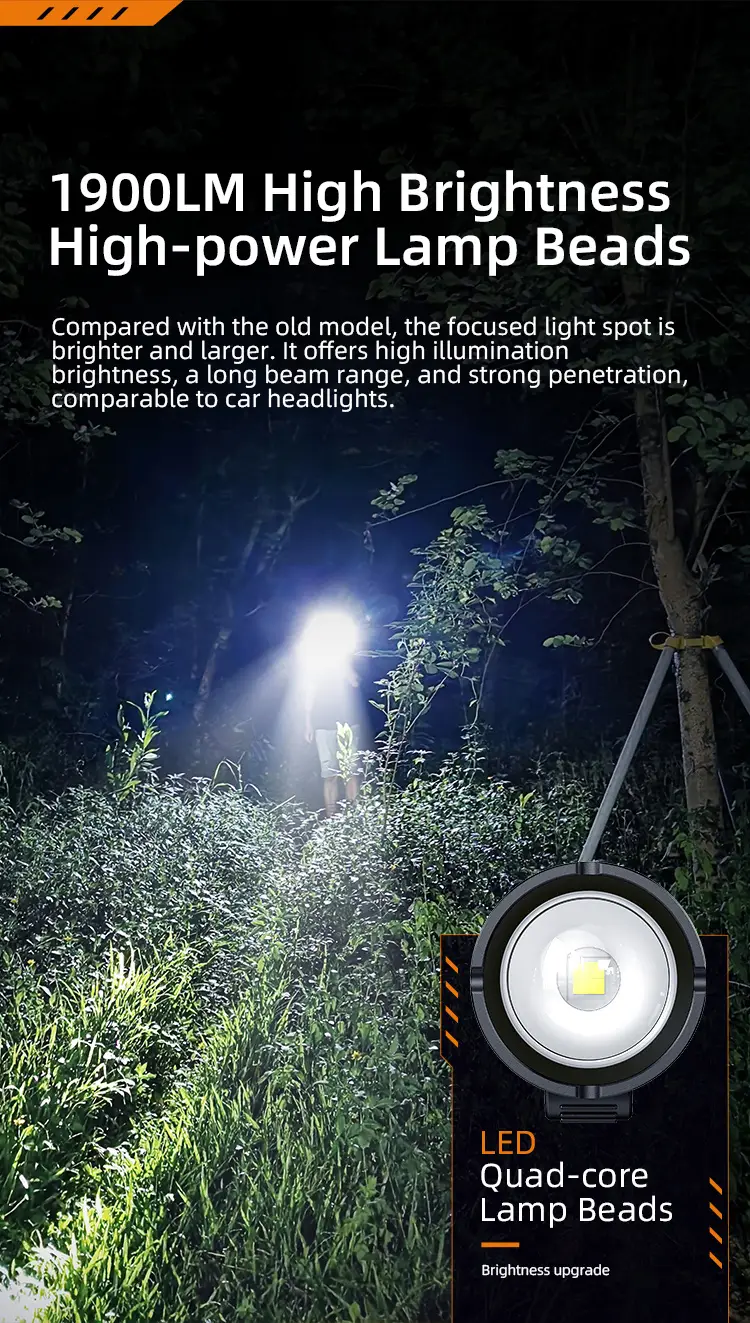

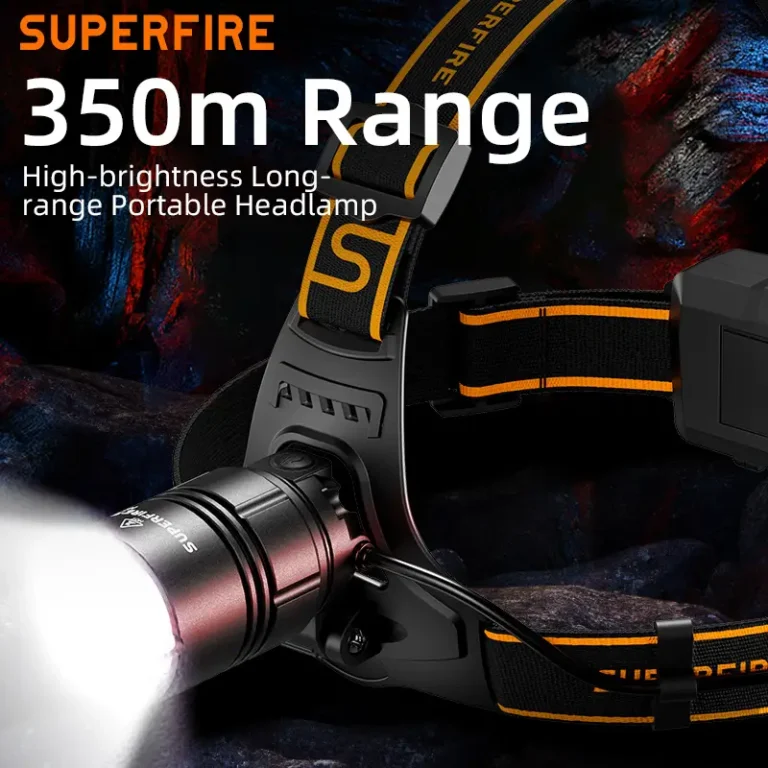

- 1900 Lumen Output with 350-Meter Beam Reach
The HL08 is one of the brightest headlamps in its class, producing 1900 lumens that illuminate objects at distances up to 350 meters when focused. This output level rivals many handheld tactical flashlights, making the HL08 suitable for search and rescue operations, cave exploration, and large-area site inspection where both hands must remain free.

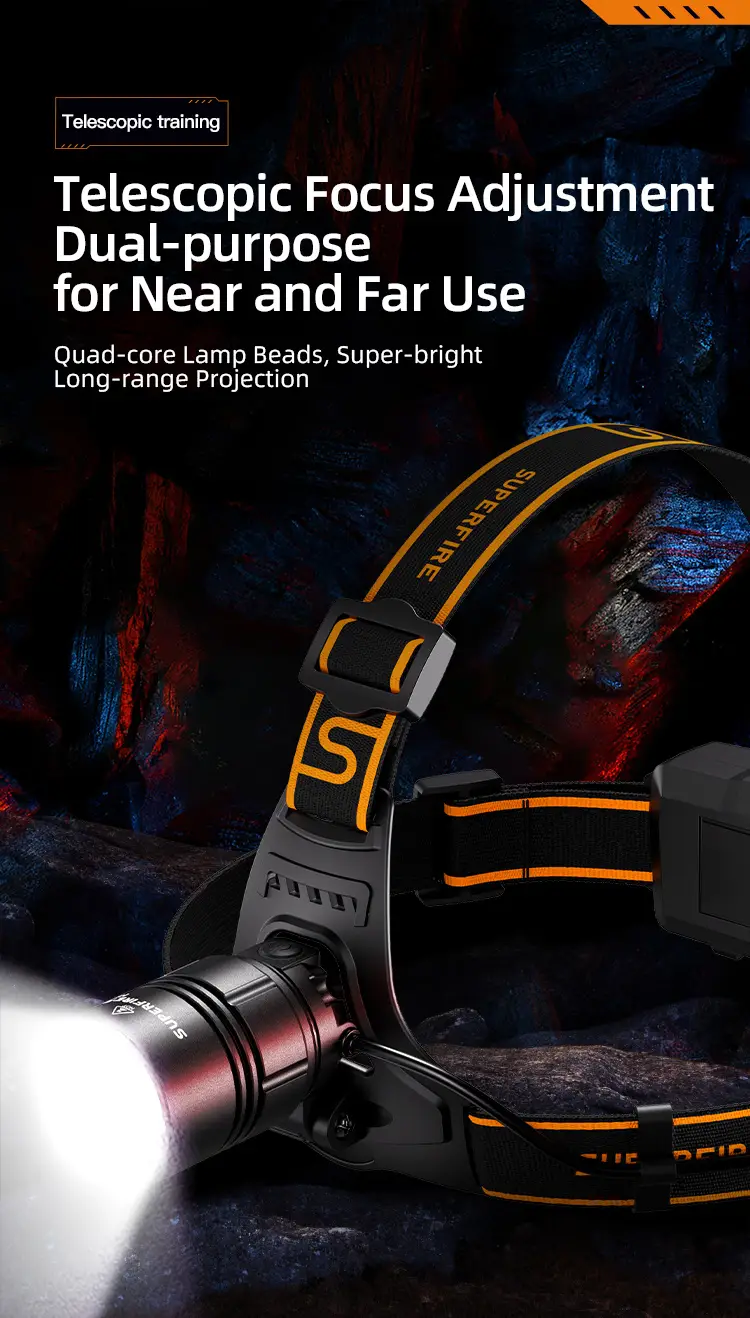

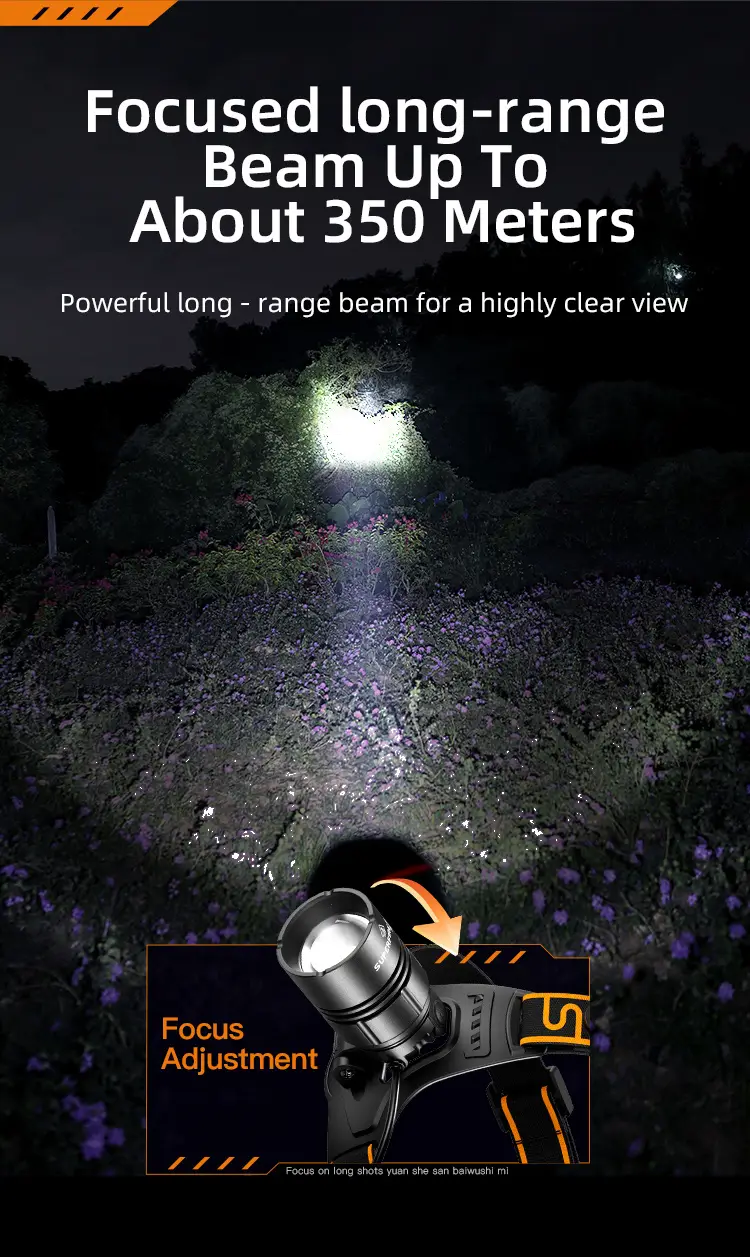

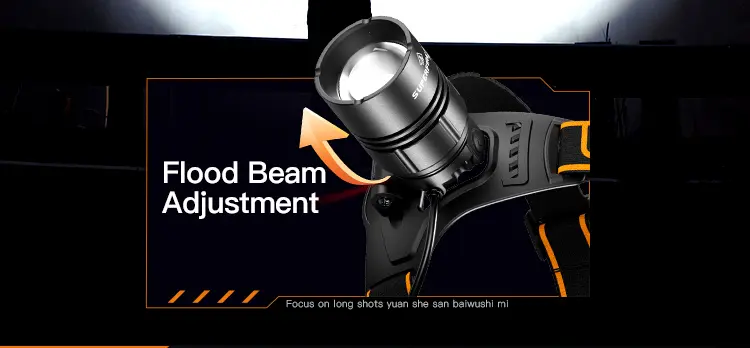

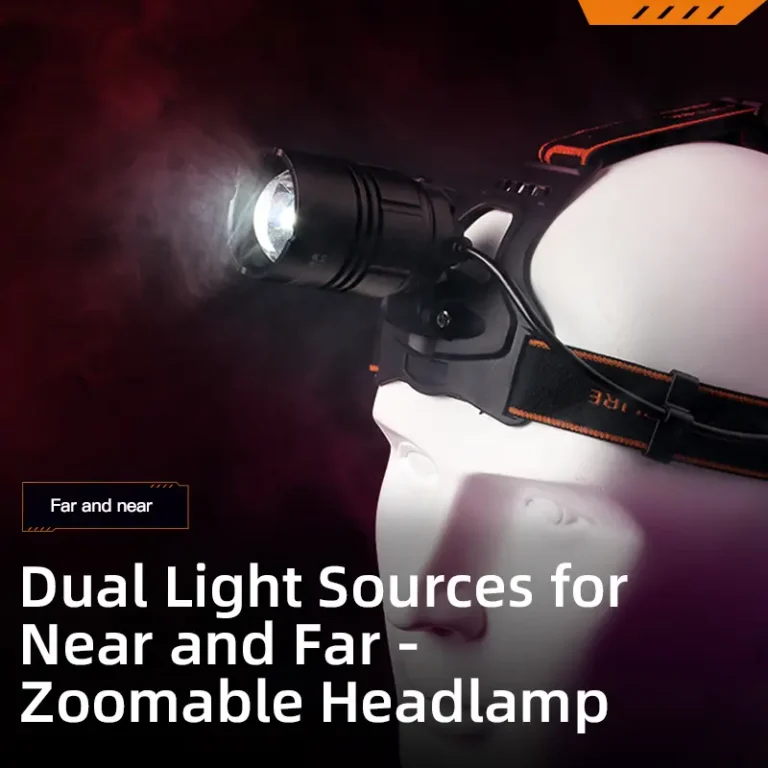

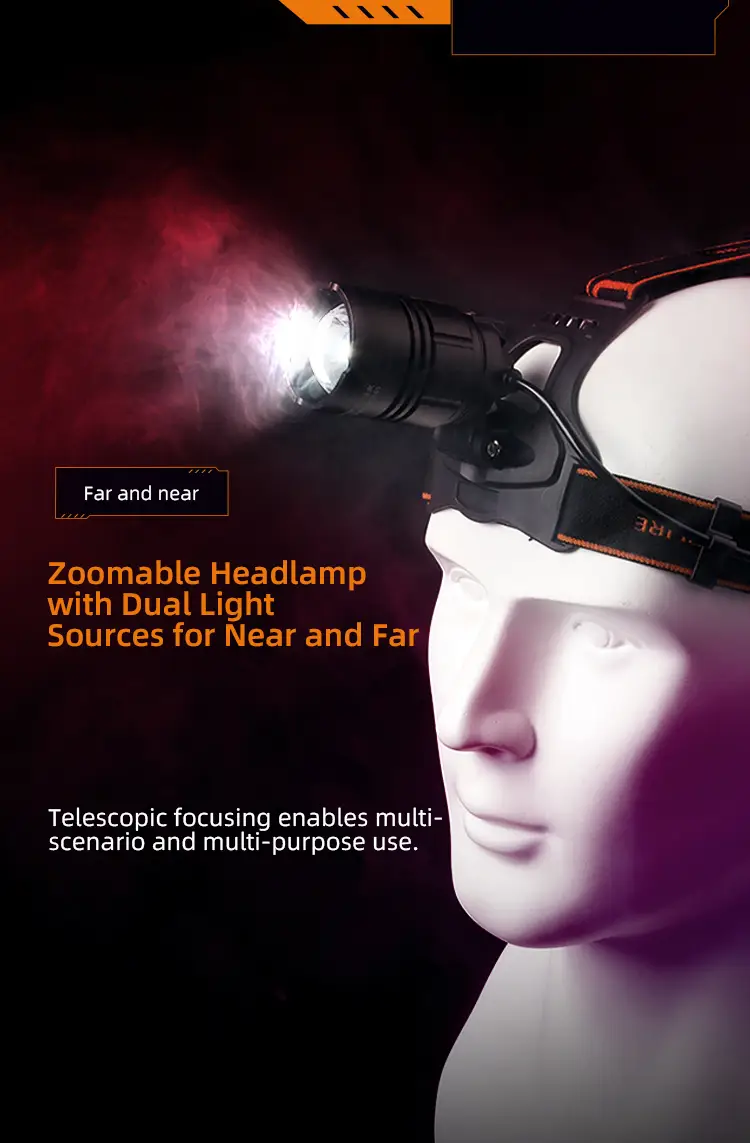

- Mechanical Zoom Focus: Flood to Spot
A twist-to-focus front bezel allows the user to smoothly adjust the beam profile from a wide flood for peripheral awareness to a tightly focused spot for maximum throw distance. This mechanical focus system is simple, reliable, and does not rely on electronics, eliminating a potential failure point in the field.

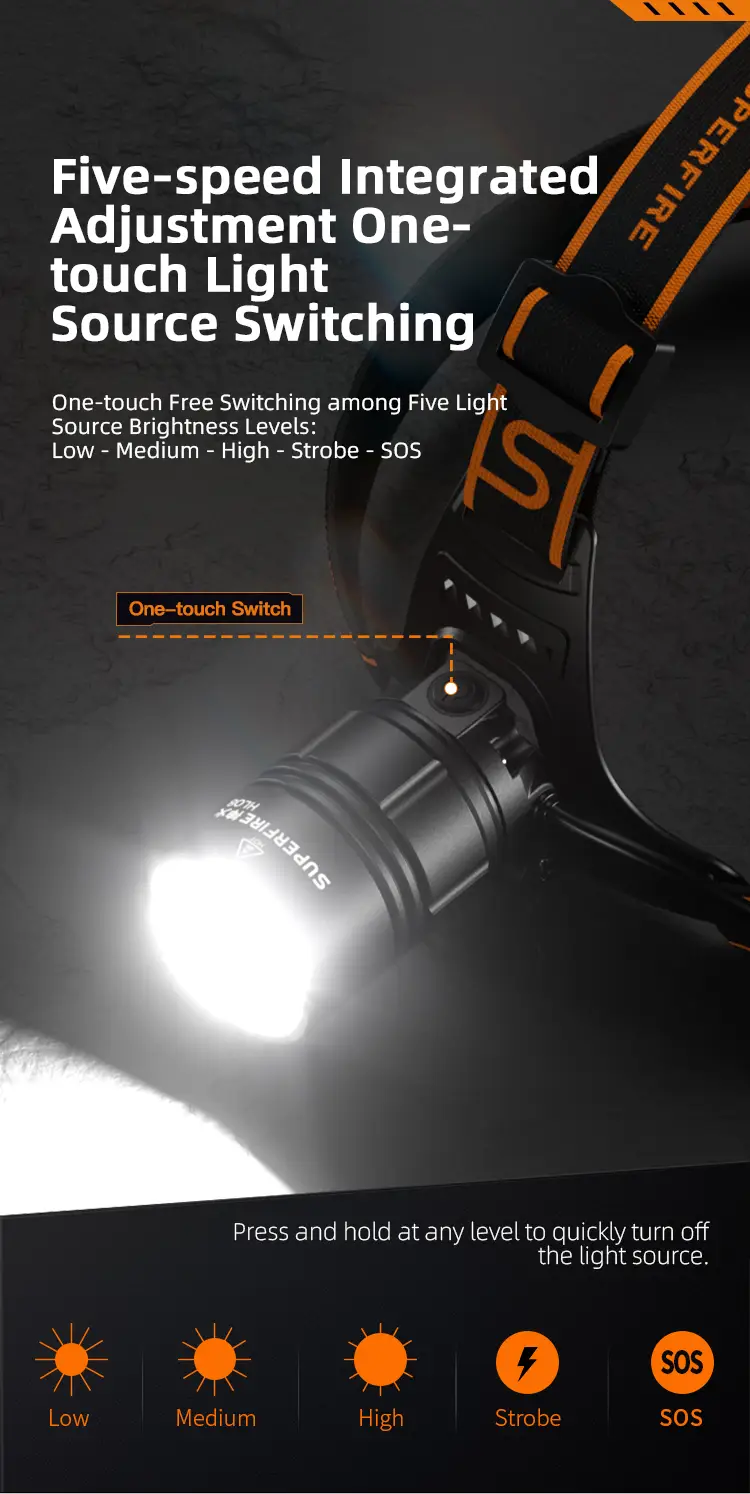

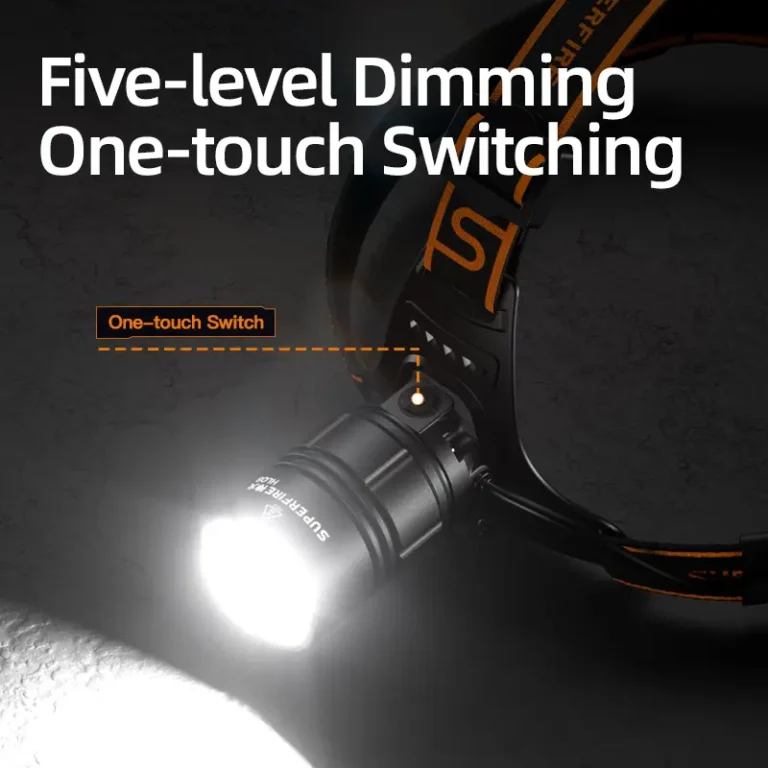

- Five-Mode Operation with SOS Emergency Signal
Cycle through Low, Medium, High, Strobe, and SOS modes via a single top-mounted push button. The SOS mode automatically flashes the international distress pattern, while the tactical strobe mode can be used for self-defense disorientation or as an attention signal. Modes are memory-free, always starting from a known state.

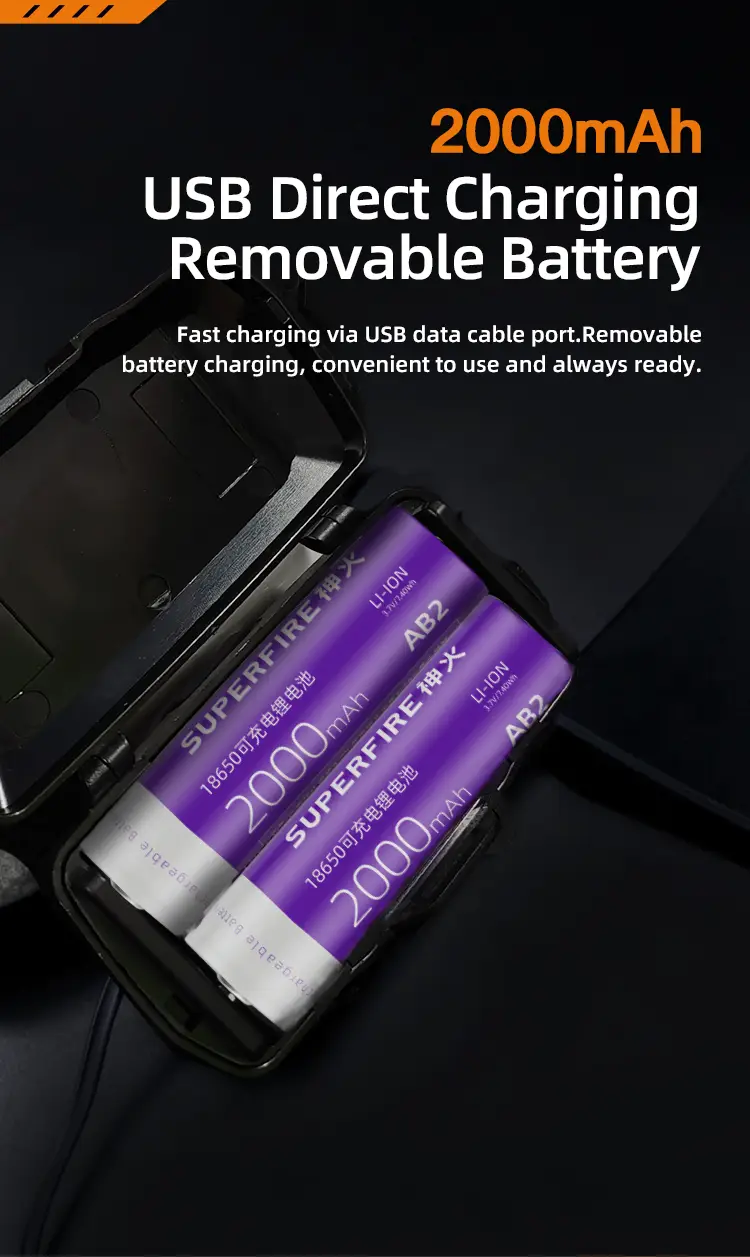

- Dual 18650 Replaceable Battery System
The HL08 accepts two standard 18650 lithium cells in a removable battery tray, providing a combined 4000mAh capacity. Unlike sealed-battery designs, users can carry spare charged cells for unlimited runtime in the field. The batteries are protected by overcharge, over-discharge, and reverse polarity protection circuits.

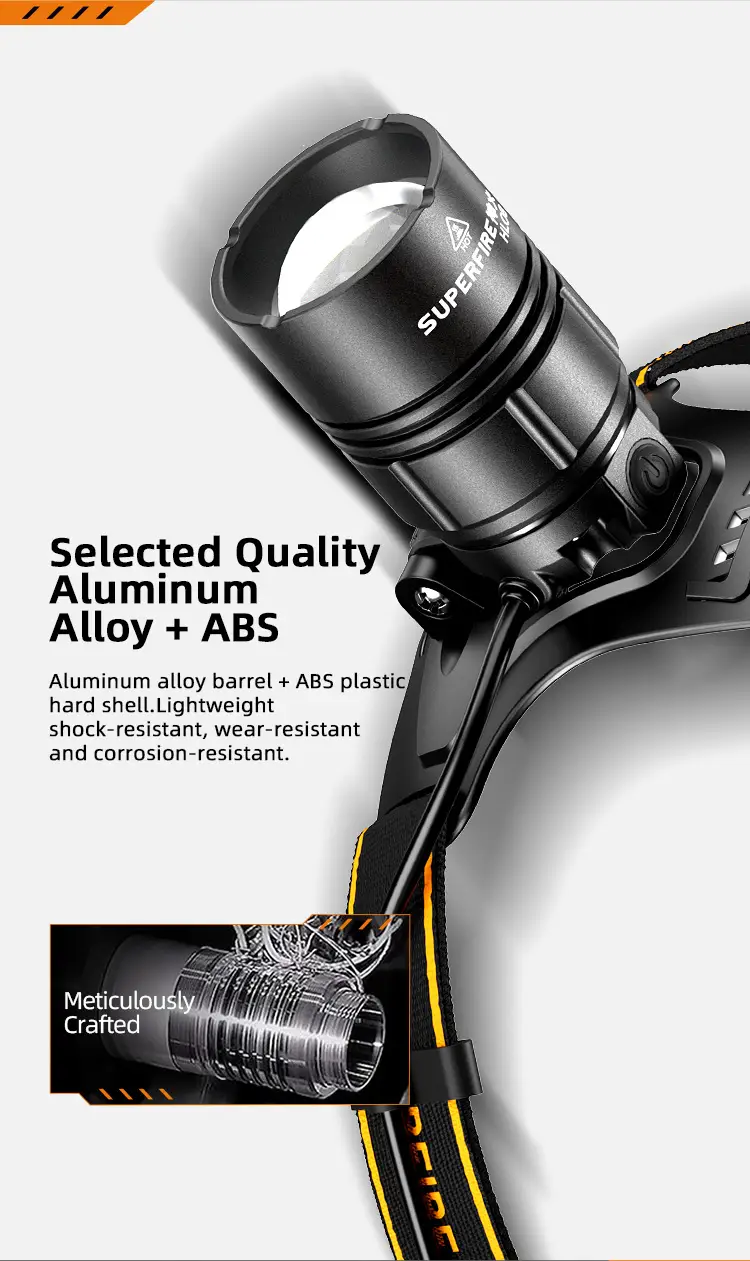

- Aluminum + ABS Hybrid Construction

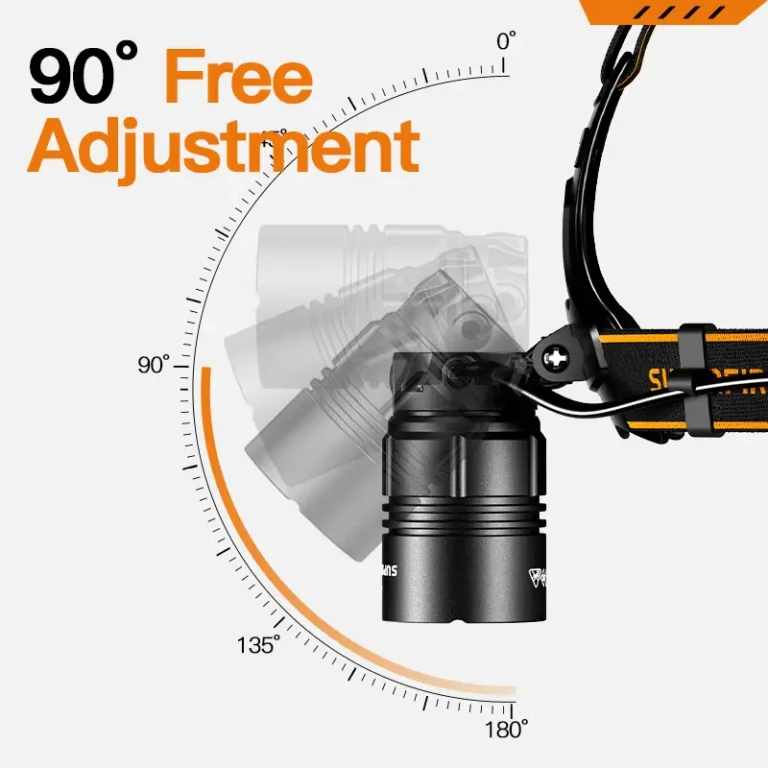

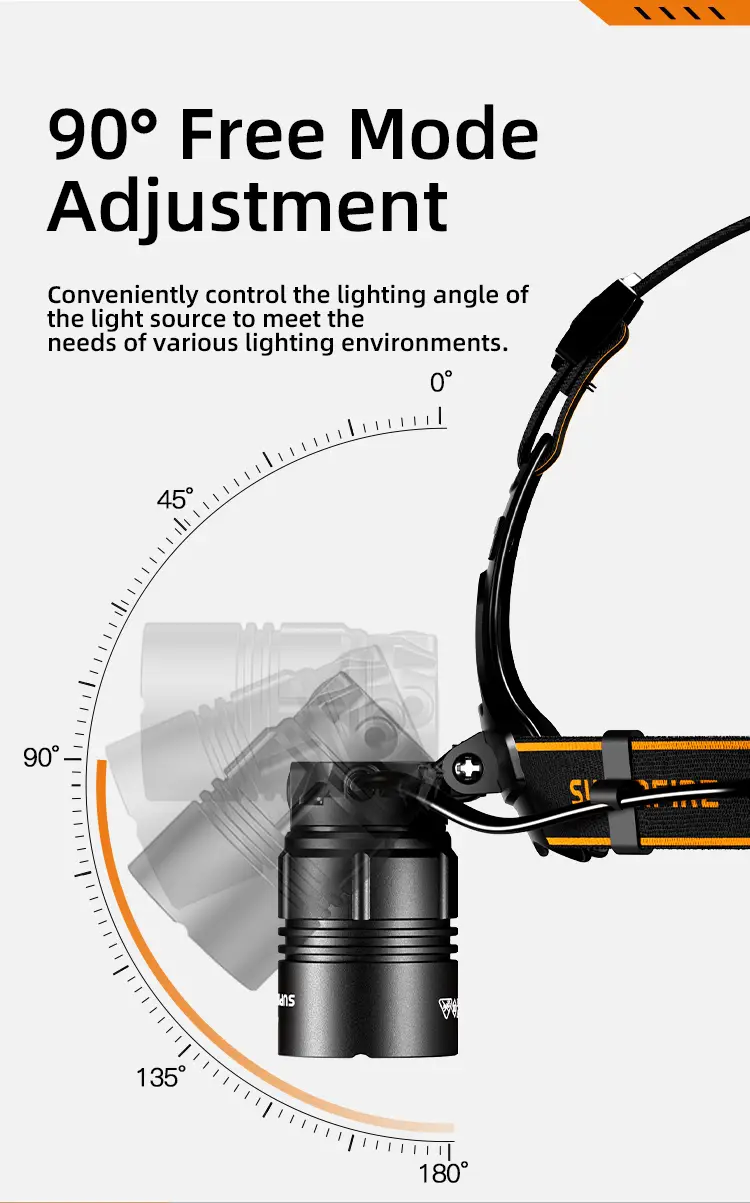

The front lamp head uses aluminum alloy for superior heat dissipation during sustained high-output operation. The rear battery compartment uses lightweight ABS to reduce overall weight to a comfortable 190 grams. The 90-degree adjustable tilt mechanism allows precise beam angle positioning for any work orientation.

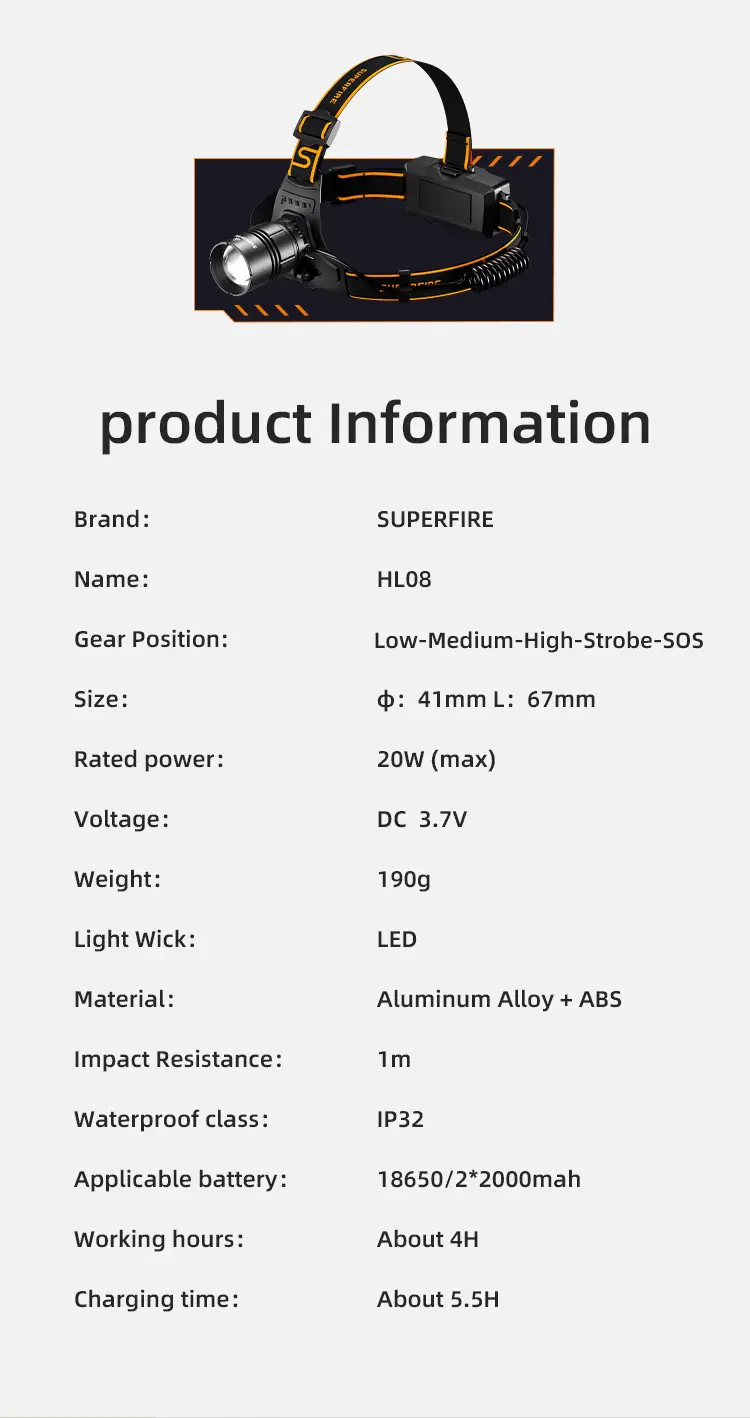

Specifications of HL08 Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | HL08 |
| Product Type | High Brightness Focus Headlamp |
| LED Configuration | LED |
| Rated Power | 20W |
| Luminous Flux | 1900LM |
| Beam Distance | Up to 350m (Focused) |
| Color Temperature | 8000K |
| Battery | 2 x 18650 AB2 / 2000mAh (4000mAh Total, Replaceable) |
| Rated Voltage | DC 3.7V |
| Runtime | Approx. 4H |
| Charging Time | Approx. 5.5H |
| Charging Port | Type-C |
| Charging Input | 5V / 1A |
| Waterproof Rating | IP32 |
| Drop Resistance | 1m |
| Unit Weight | 190g |
| Dimensions | Head Diameter: 41mm / Length: 67mm |
| Body Material | Aluminum Alloy (Front) + ABS (Rear) |
| Color | Black |
| Focusable | Yes (Mechanical Twist Zoom) |
| Operating Modes | Low / Medium / High / Strobe / SOS |
| Special Functions | Overcharge Protection, Over-discharge Protection, Reverse Polarity Protection, Charging Indicator |
| SKU Code | 1-07-01-0403 |
| Barcode | 6956362941229 |
Details of SUPERFIRE HL08 Tactical Flashlight
Video
FAQ

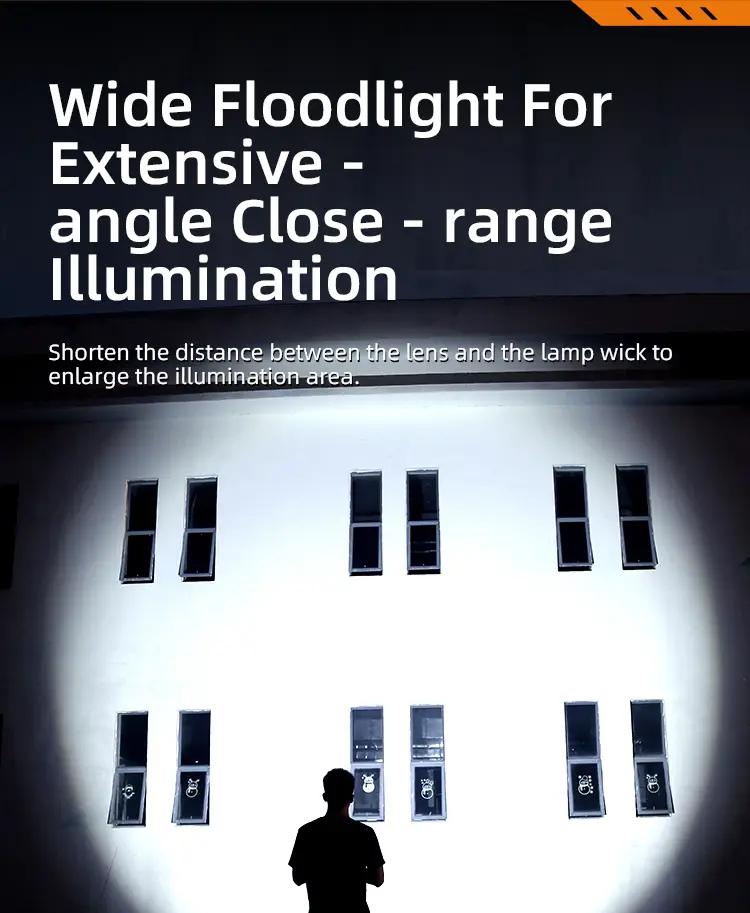

How far can the HL08 illuminate in flood mode versus spot mode?
In the fully focused spot configuration, the HL08 achieves a maximum throw of approximately 350 meters. In flood mode, the beam spreads to a wide cone suitable for illuminating areas up to approximately 50-80 meters effectively. The zoom mechanism allows any intermediate setting between these extremes.
Can the HL08 batteries be charged inside the headlamp?
Yes, the HL08 features an onboard Type-C charging circuit that charges both 18650 cells simultaneously while installed in the unit. The red charging indicator blinks during charging and turns blue when fully charged. The batteries can also be removed and charged in a separate bay charger.
Is the HL08 heavy for extended use?

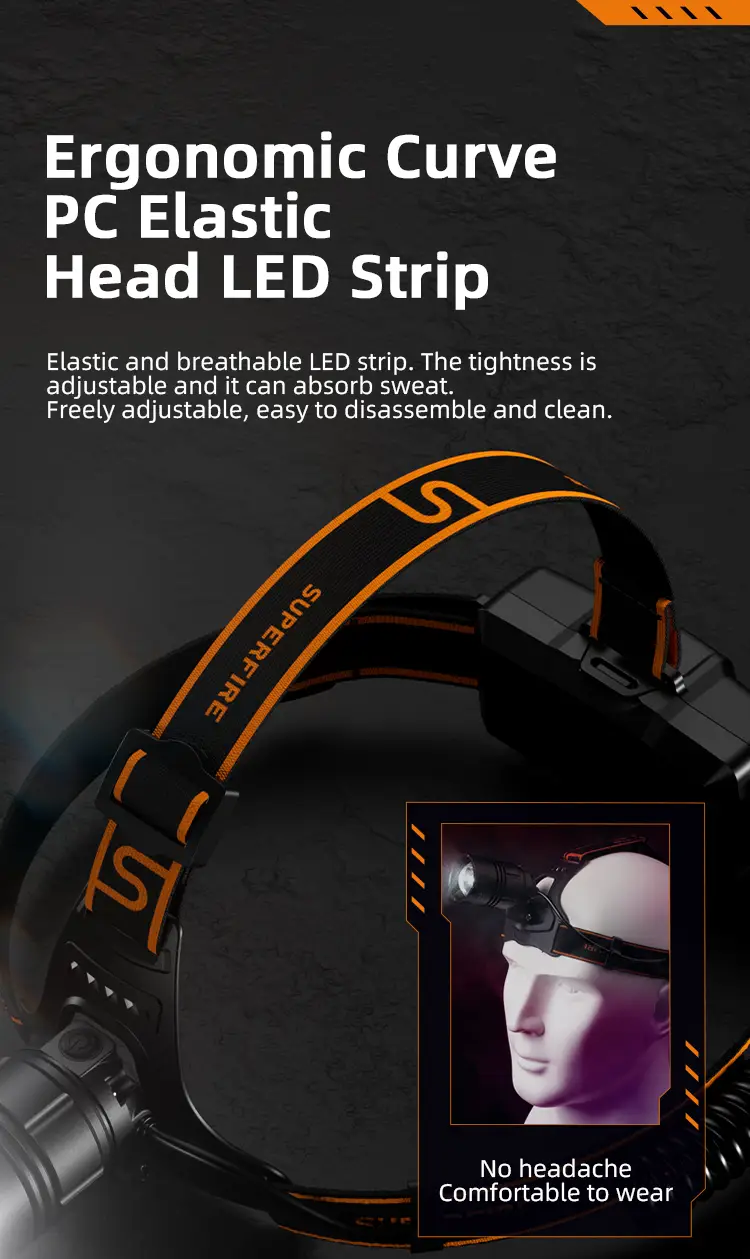

At 190 grams with batteries installed, the HL08 falls into the mid-weight category for high-output headlamps. The dual-strap headband system distributes weight evenly across the forehead and crown. For activities requiring hours of continuous wear, users can adjust the top strap for optimal weight distribution.

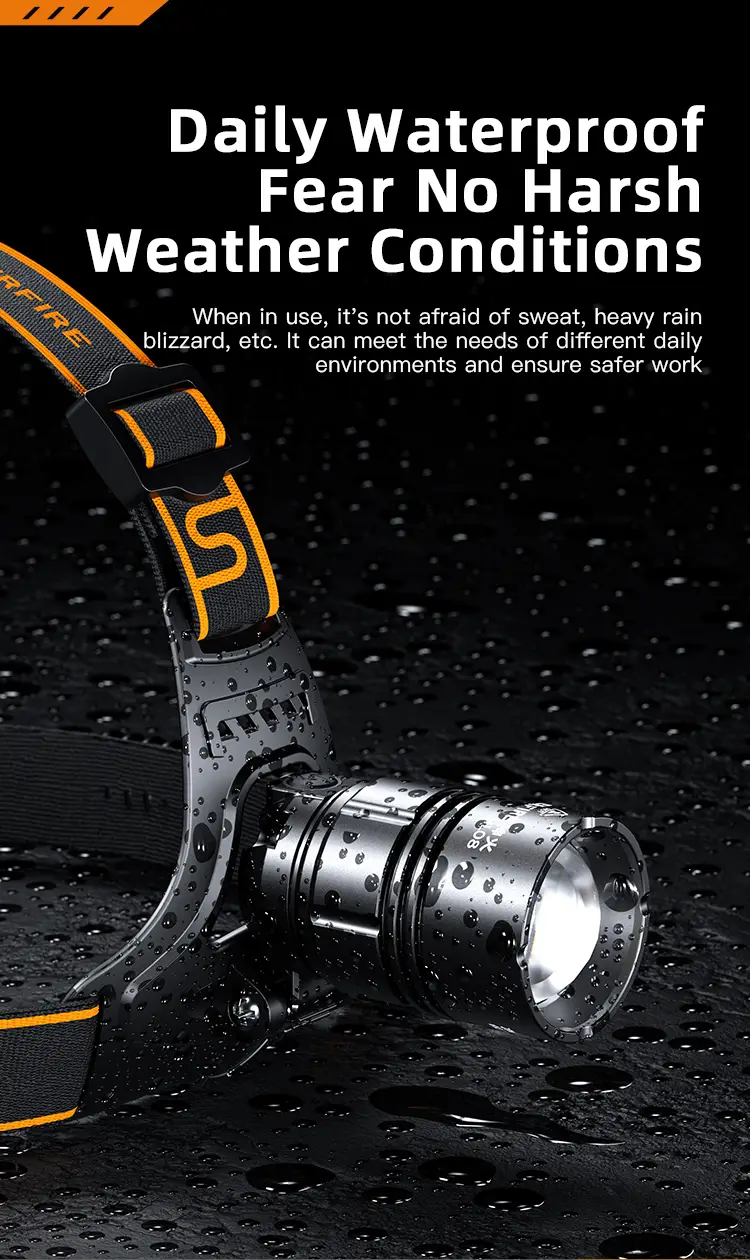

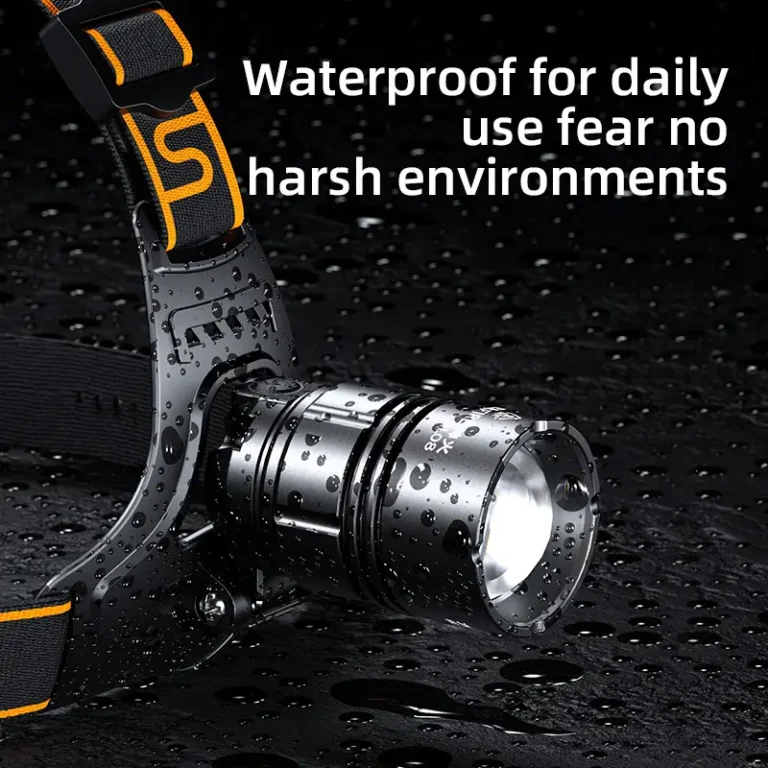

What does IP32 waterproof rating mean in practical terms?
IP32 means the HL08 is protected against spraying water at up to 15 degrees from vertical (rain) and against solid objects larger than 2.5mm (tools, wires). It is suitable for use in light rain and dusty conditions but should not be submerged or exposed to heavy water jets.
Are the batteries and charger included in the package?
Standard packages include the headlamp with headband, two 18650 batteries, a Type-C charging cable, and a user manual in a branded packaging box. For B2B bulk orders, we can configure package contents to include or exclude batteries and accessories per your requirements.
Customization & OEM Services
- Brand Customization
Laser engraving on the aluminum head housing and ABS body is available for permanent logo and parameter markings. Logo position is centered on the front head unit above the lens, with parameter text on the rear compartment. The elastic headband supports woven, printed, or silicone logo application.
- Packaging Customization
Standard packaging uses a branded retail box with UV coating and anti-counterfeit label. OEM options include fully customized box designs with your brand, color scheme, and product photography. Blister cards, window boxes, and kraft eco-packaging are also available. Barcodes and regulatory labels are placed per regional requirements.
- Product Customization
Available customization includes alternative LED configurations (warm white, neutral white, or specialized wavelengths), modified mode sequences and output levels, customized body colors, branded accessories, and package bundle configurations. Engineering support is provided from concept through production.
- Quality Assurance
Each HL08 undergoes functional testing of all five modes, zoom mechanism verification, battery charging and protection circuit validation, waterproof seal testing, and drop resistance verification. CE and RoHS compliance documentation is maintained. Pre-shipment sample approval and batch inspection reports are standard for volume orders.
- Order & Logistics
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
