Core Overview
Key Product Advantages
- Featherweight 50-Gram Design for All-Day Comfort
At just 50 grams, the HL05-D is virtually unnoticeable during extended wear. The ABS+PC body is both impact-resistant and lightweight, while the slim elastic headband stays secure without causing pressure points. Measuring only 65 x 32 x 39mm, it can be stowed in a shirt pocket, tool pouch, or glove compartment without adding bulk.
- Rapid One-Hour Type-C Charging
The HL05-D achieves a full charge from empty in approximately 60 minutes via any standard 5V/1A USB-C source. With a runtime of 4 hours on a single charge and the ubiquity of USB-C chargers, users never face extended downtime. The charging indicator shows red during charging and turns off when complete.
- Four Operating Modes Including Emergency SOS
Toggle through High, Low, Strobe, and SOS modes with a single-button interface. The SOS mode flashes the internationally recognized distress pattern, making the HL05-D a practical safety accessory for hikers, cyclists, and roadside emergency kits. The white+red dual beam provides additional versatility for night vision preservation.
- Built-In Rechargeable Battery -- No External Cells Needed
The integrated 14500 / 500mAh lithium battery eliminates the need to purchase, carry, and replace disposable cells. Users simply recharge via USB-C and go. This all-in-one design reduces total cost of ownership and environmental waste compared to disposable battery headlamps.
- IP44 Splash-Resistant Construction
The sealed ABS+PC housing protects internal electronics from water splashes from any direction. Combined with a 6700K neutral-white beam temperature that provides natural color rendering, the HL05-D is suitable for use in light rain, damp environments, and dusty workshops.

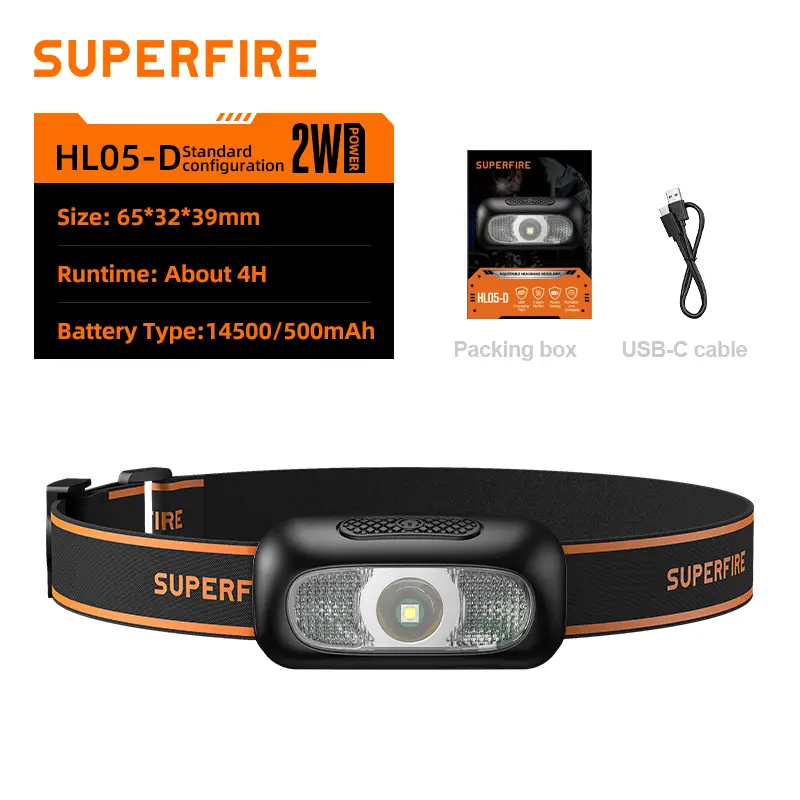

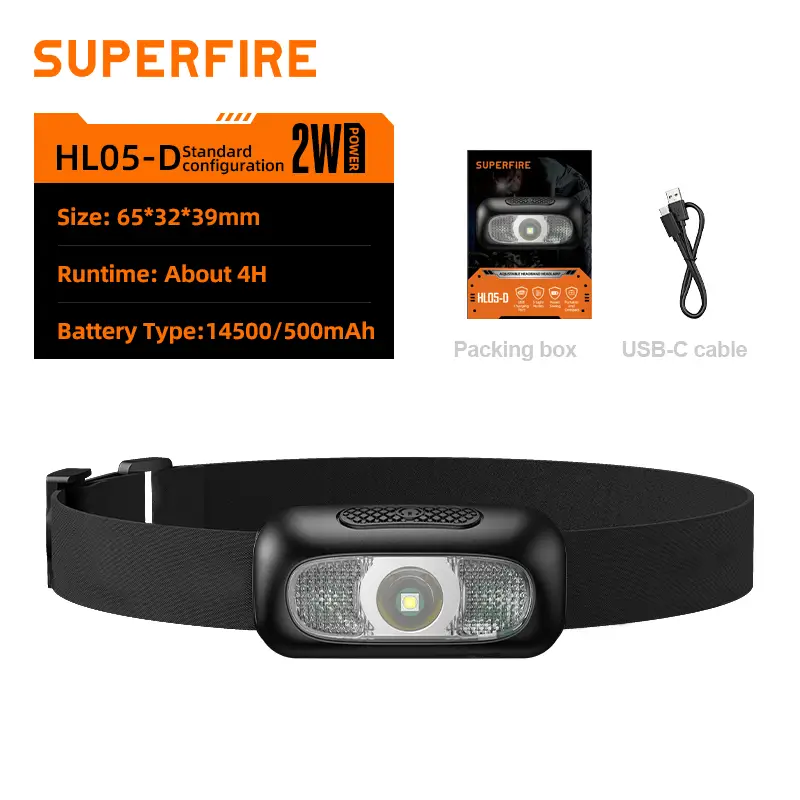

Specifications of HL05-D Tactical Flashlight
| Parameter | Specification |
|---|---|
| Model | HL05-D |
| Product Type | Mini Rechargeable Headlamp |
| LED Type | SH-X02 |
| Rated Power | 2W |
| Luminous Flux | 110LM |
| Beam Distance | 35m |
| Beam Color | White + Red |
| Color Temperature | 6700K |
| Battery | Built-in 14500 / 500mAh (Rechargeable) |
| Rated Voltage | DC 3.7V |
| Runtime | Approx. 4H |
| Charging Time | Approx. 1H |
| Charging Port | Type-C |
| Charging Input | 5V / 1A |
| Waterproof Rating | IP44 |
| Unit Weight | 50g |
| Dimensions | 65 x 32 x 39mm |
| Body Material | ABS + PC |
| Color | Black |
| Focusable | No |
| Operating Modes | High / Low / Strobe / SOS |
| Barcode | (Per Sample Sheet) |
Details of SUPERFIRE HL05-D Tactical Flashlight
Video
FAQ
Can the battery be replaced when it reaches end of life?
The HL05-D uses a built-in rechargeable battery that is not user-replaceable. The battery is rated for several hundred charge cycles before noticeable capacity degradation. For high-usage professional applications, we recommend our models with user-replaceable 18650 batteries.
How does the clip-on attachment work?
The HL05-D features a versatile clip base that can attach to cap brims, backpack straps, shirt collars, belts, and webbing. This multi-position mounting capability extends its utility beyond traditional head-worn use, making it adaptable to various lighting needs.
Is the HL05-D bright enough for running at night?
With 110 lumens and a 35-meter beam, the HL05-D provides adequate illumination for jogging on paved paths and well-defined trails. For trail running with technical terrain, we recommend higher-output models in the HL series with brighter beams and longer throw distances.
What is the difference between the white and red beam modes?
White light at 6700K provides maximum visibility and color accuracy for task work and pathfinding. Red light preserves natural night vision adaptation and reduces the headlamp’s visible signature, making it useful for astronomy, wildlife observation, and tactical applications.
Can I charge the HL05-D from a power bank?
Yes, any standard USB power source delivering 5V/1A can charge the HL05-D, including power banks, laptop USB ports, car USB adapters, and wall chargers. The 500mAh battery charges quickly, so even a short top-up from a power bank provides usable runtime.
Customization & OEM Services
- Brand Customization
The ABS+PC body supports silkscreen printing and pad printing for logos and graphics. The headband can be produced with woven, printed, or embossed brand logos in custom colors. Minimum customization quantities are flexible and discussed on a per-project basis.
- Packaging Customization
Standard packaging uses compact retail-ready boxes. OEM customers may choose custom-printed packaging with full brand identity, blister card formats for retail pegboard display, or minimal eco-friendly packaging for bulk distribution. Custom barcode and labeling solutions are available.
- Product Customization
Customization options include alternative LED color temperatures, modified beam patterns, custom color housings (beyond standard black), bespoke accessory kits, and modified mode sequences. Our product development team supports full-cycle customization from requirements definition to production samples.
- Quality Assurance
All HL05-D units undergo functional testing of every mode, charging system verification, battery capacity validation, and waterproof seal inspection. CE and RoHS certifications apply. Batch QC reports and pre-shipment inspection services are available for volume orders.
- Order & Logistics
Flexible order quantities with competitive pricing at scale. Shipping options span sea, air, and express courier services. Samples are available for evaluation. Custom packaging and branding lead times are discussed based on project complexity and order volume.
For OEM inquiries, cycling shop distributor partnerships, or volume pricing,
contact us at service@superfire.com or via WhatsApp at +86 199 2887 7060.
